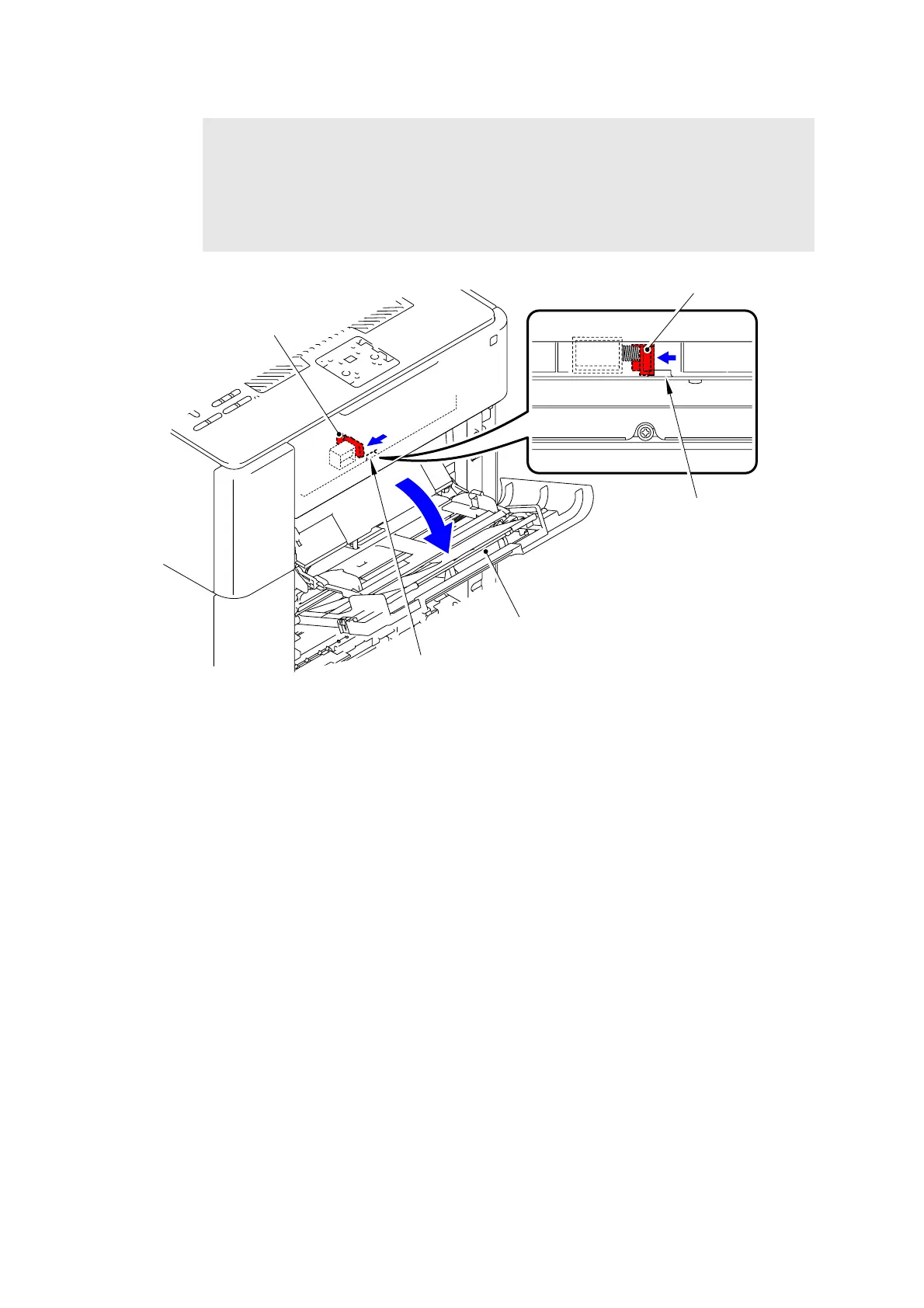

Fig. 3-8
Note:
The Top cover might be locked at the timing when the power is turned OFF.
If the Top cover is not opened even if you pull the Open lever, open the MP cover and
slide the Lock lever by minus driver as shown in the figure.
- Do not pull the lever strongly, otherwise it might get broken.
- Note that the lever is locked and unlocked in turn every time it is slid.
Hole
MP cover
<Front>
Hole
Lock lever
Lock lever
