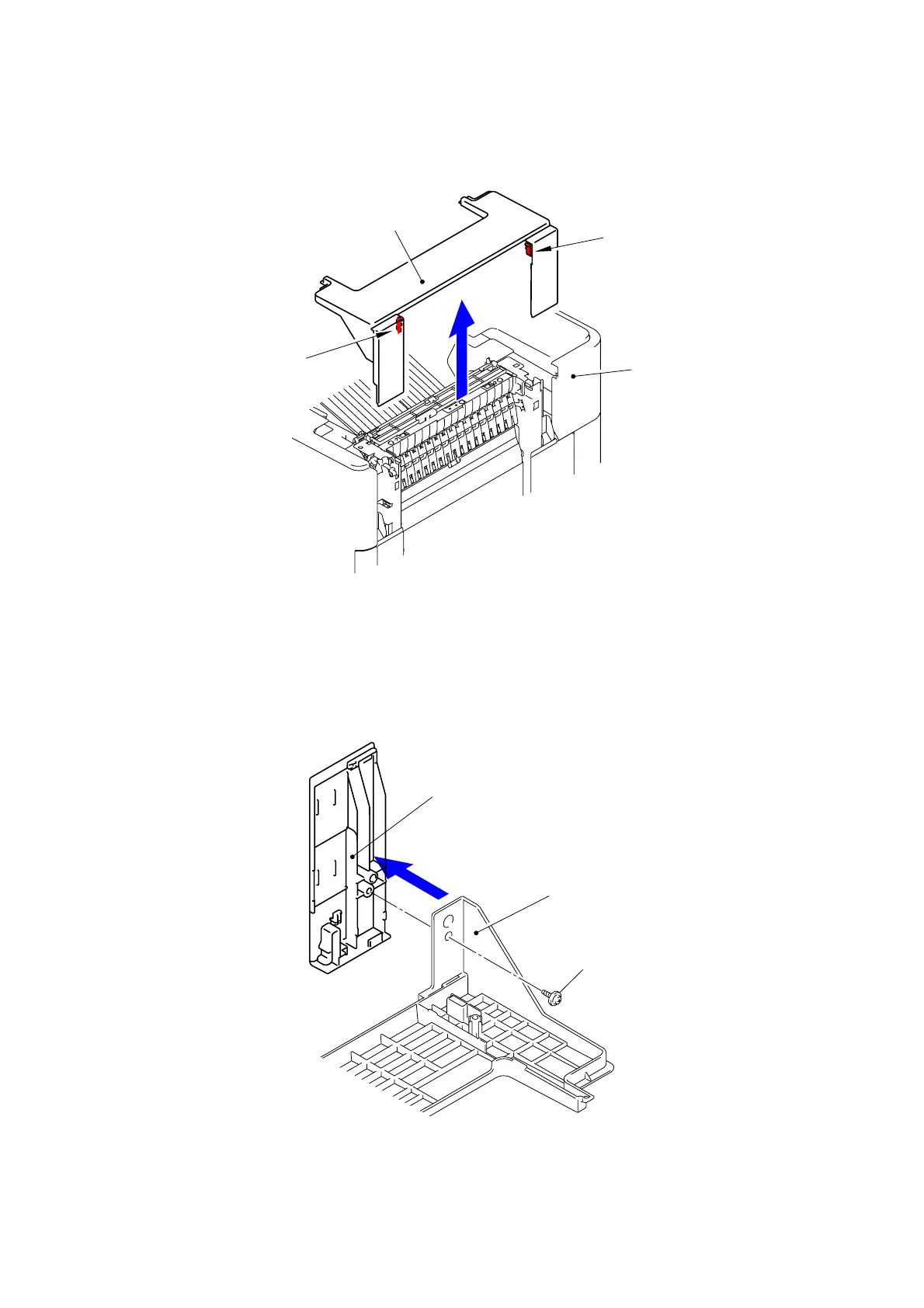

(3) Release the two Hooks on the surface of the Eject top cover to remove the Eject top
cover.
Fig. 3-13
(4) Remove the Taptite bind B M4x10 screw to remove the Rear cover finisher L from the
Eject top cover.
Fig. 3-14
Hook
Hook
Eject top cover
Main body
<Back side>
Taptite bind B M4x10
Rear cover finisher L
Eject top cover
