3-41
Confidential

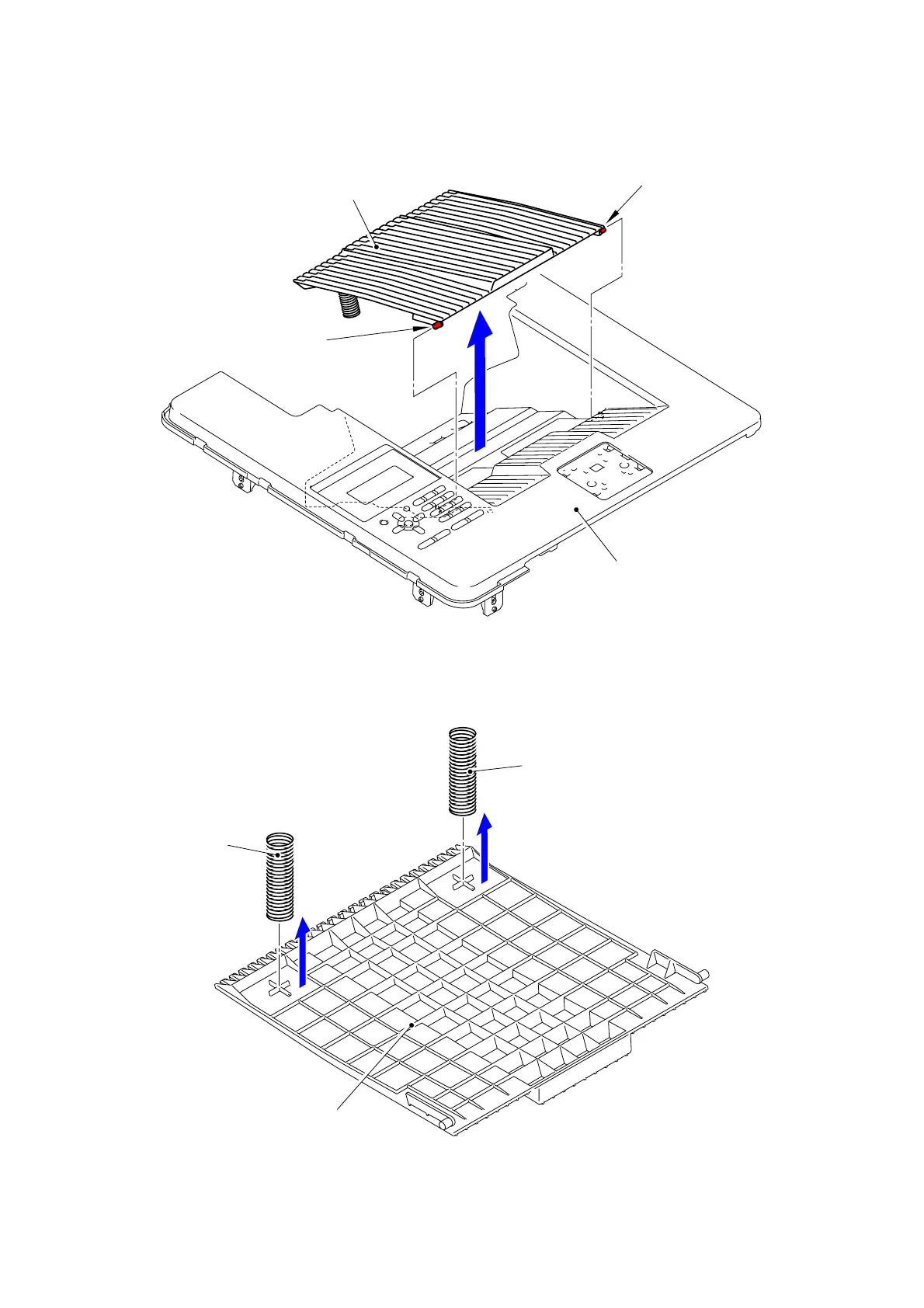

(6) Remove the two Bosses of the Eject stopper tray to remove the Eject stopper tray from
the Top cover ASSY.
Fig. 3-27
(7) Remove the two Eject stopper tray springs from the Eject stopper tray.
Fig. 3-28
Eject stopper tray
Top cover ASSY
Boss
Boss
Eject stopper tray
Eject stopper tray
Eject stopper tray spring
spring
