(3) Release the Hooks at the both sides of the MP tray ASSY with the MP tray ASSY being in
the vertical state. Remove the MP tray ASSY from the Main body.

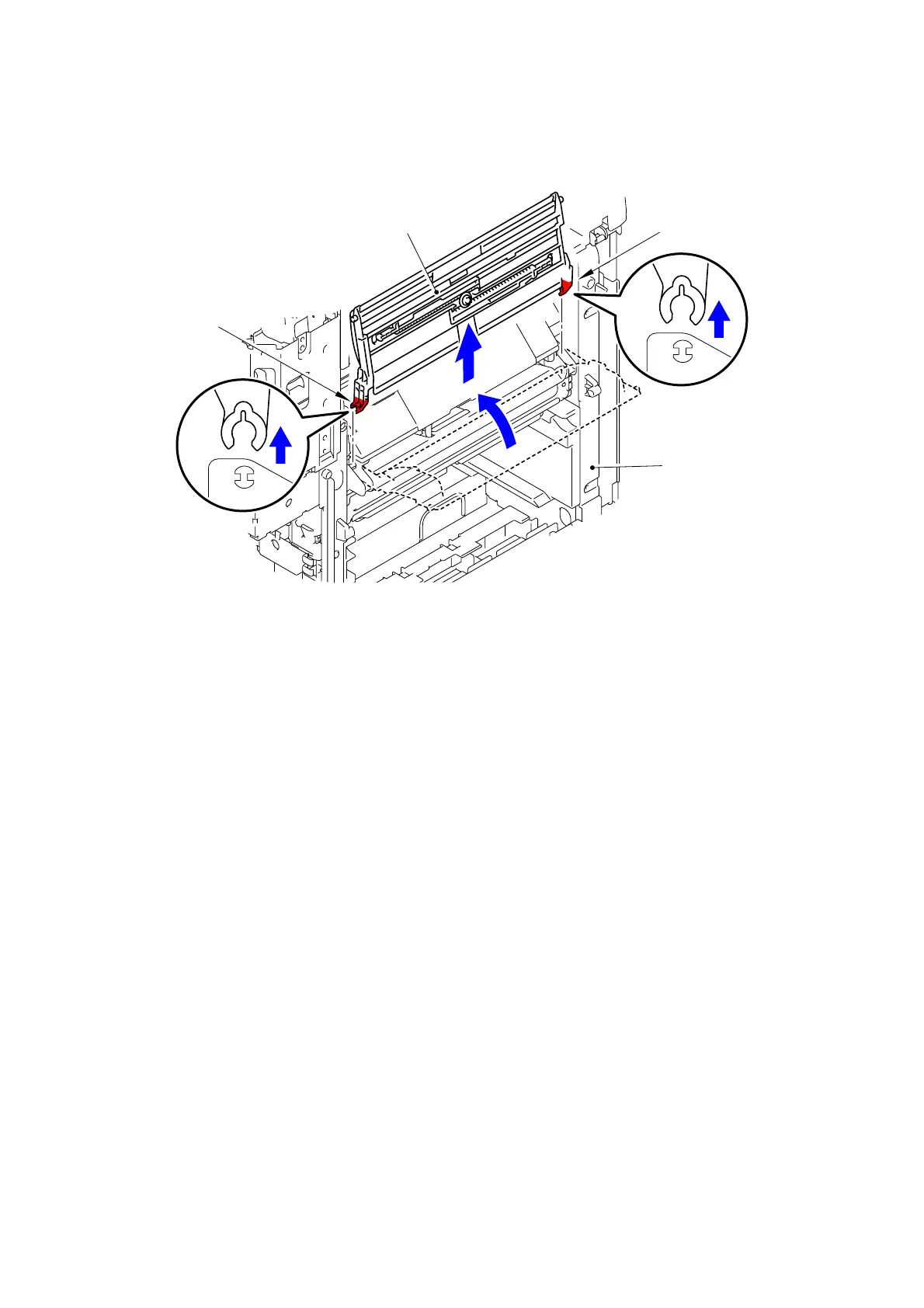

Fig. 3-45
MP tray ASSY
Hook
Hook
Main body
<Front>
