(2) Pull the open lever and open the top cover.
(3) Release the two Hooks of the Side cover R to remove the Side cover R.

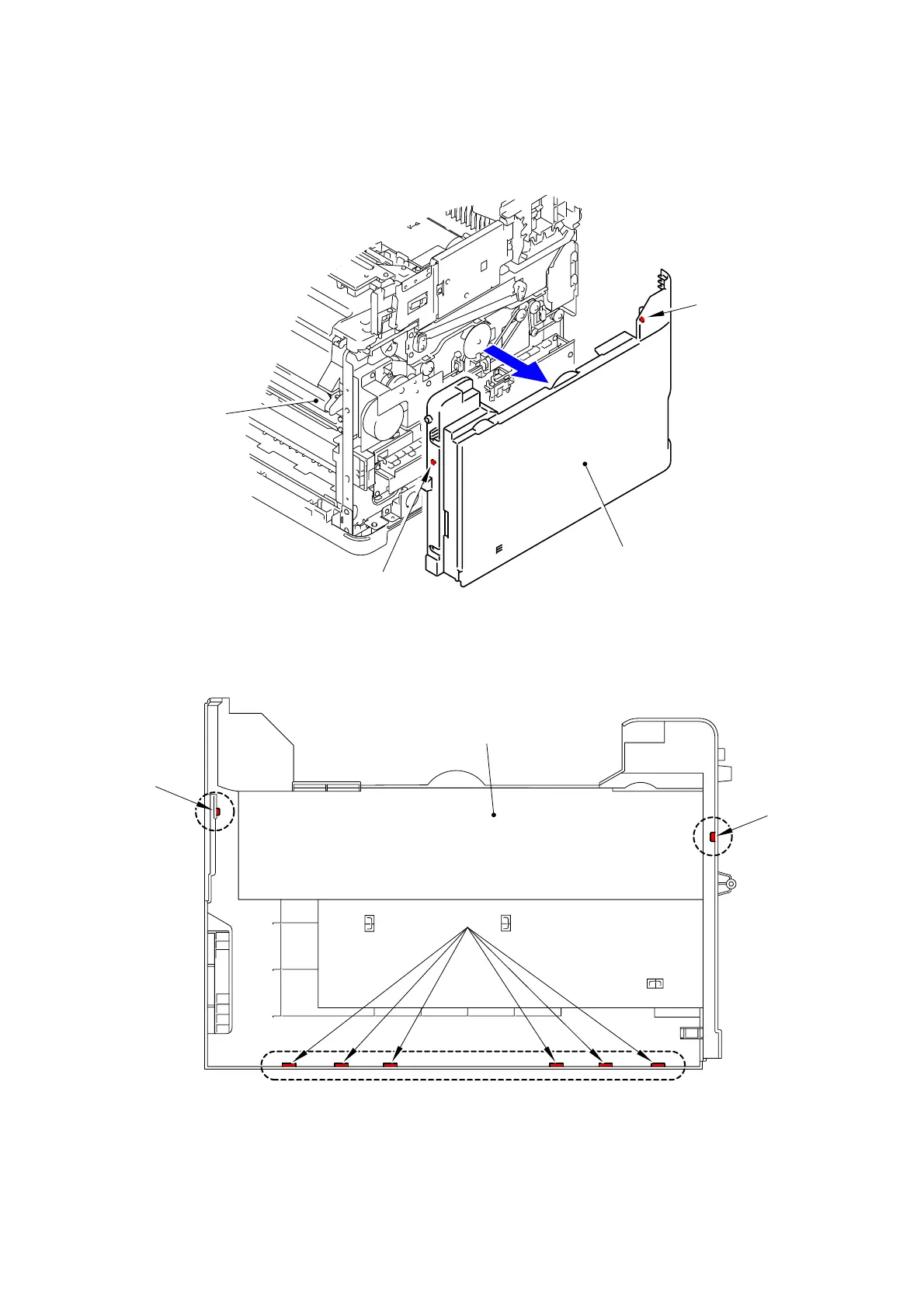

Fig. 3-48
Fig. 3-49
Hook
Hook
Side cover R
Main body
<Right side>
Hook
Hook
Side cover R
Hook
<Back side>
<Front>
