Brother HL-S7000DN Service Manual

2-54
Confidential
■ Error code 2906
Software detected flashing error.
■ Error code 2A01
Pre-coat ink sensor suddenly detected time for ink replacement although the sensor did not
detect that it almost reached time for ink replacement.
<User Check>
- Replace the Ink cartridge.
■ Clearing the 2A error
1) Replace the ink cartridge with a new one of which the expiration date written on it is
August 2014 or later.
2) Turn the power ON while the ink cartridge cover is open, press the Go and buttons
at the same time. "Reset Menu" is displayed on the LCD.
3) Press the or button to select "Sub tank", and press the OK button.
"1.Reset 2.Exit" is displayed on the LCD.
4) Press the 1 button. The machine displays "Accepted" on the LCD and returns to the
ready state.

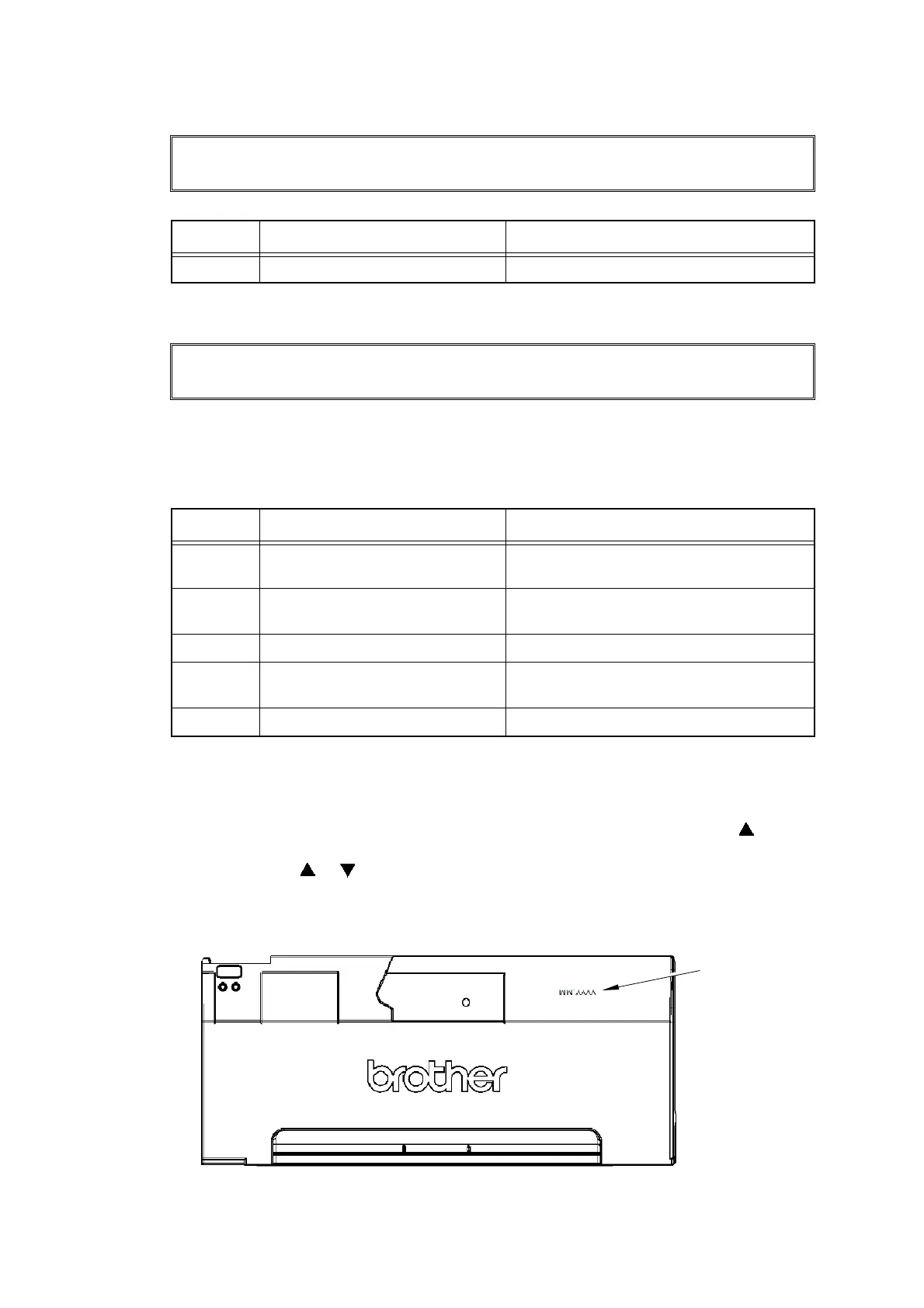

Fig. 2-7
Print Unable 29
Turn the power off and then back on again.
Step Cause Remedy
1 Engine PCB failure Replace the engine PCB ASSY.
Print Unable 2A
Turn the power off and then back on again.
Step Cause Remedy
1 Out of ink after maintenance
work
Refer to "Clearing the 2A error" and clear
the 2A01 error.
2 Pre-coat ink full sensor harness
connection failure
Reconnect the pre-coat ink full sensor
harness.
3 Clogging of supply valve Replace the supply valve ASSY.
4 Pre-coat ink full sensor or ink
float failure
Replace the sub tank ASSY.
5 Engine PCB failure Replace the engine PCB ASSY.
Position where
the expiration date
is written

Brother HL-S7000DN Specifications

General

Color	No
Duplex printing	Yes
Maximum duty cycle	275000 pages per month
Number of print cartridges	-
Page description languages	BR-Script 3, PCL 6, PostScript 3
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	100 ppm
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Plain paper, Recycled paper, Thin paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Multi-purpose tray media types	Bond paper, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Paper tray media weight (imperial)	16 - 28 lbs
Sound power level (standby)	40 dB
Sound power level (printing)	64 dB
Total input capacity	500 sheets
Maximum input capacity	1100 sheets
Maximum number of input trays	4
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPS
Mobile printing technologies	Brother iPrint & Scan
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.5 W
Power consumption (standby)	30 W
Power consumption (printing)	130 W
Operating temperature (T-T)	18 - 33 °C
Operating relative humidity (H-H)	20 - 80 %
Display	LCD
Product color	Black, White
Market positioning	Business
Package weight	52000 g
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	472 mm
Width	478 mm
Height	484 mm
