Stern and Swivel
Trim & Tilt System Service
326

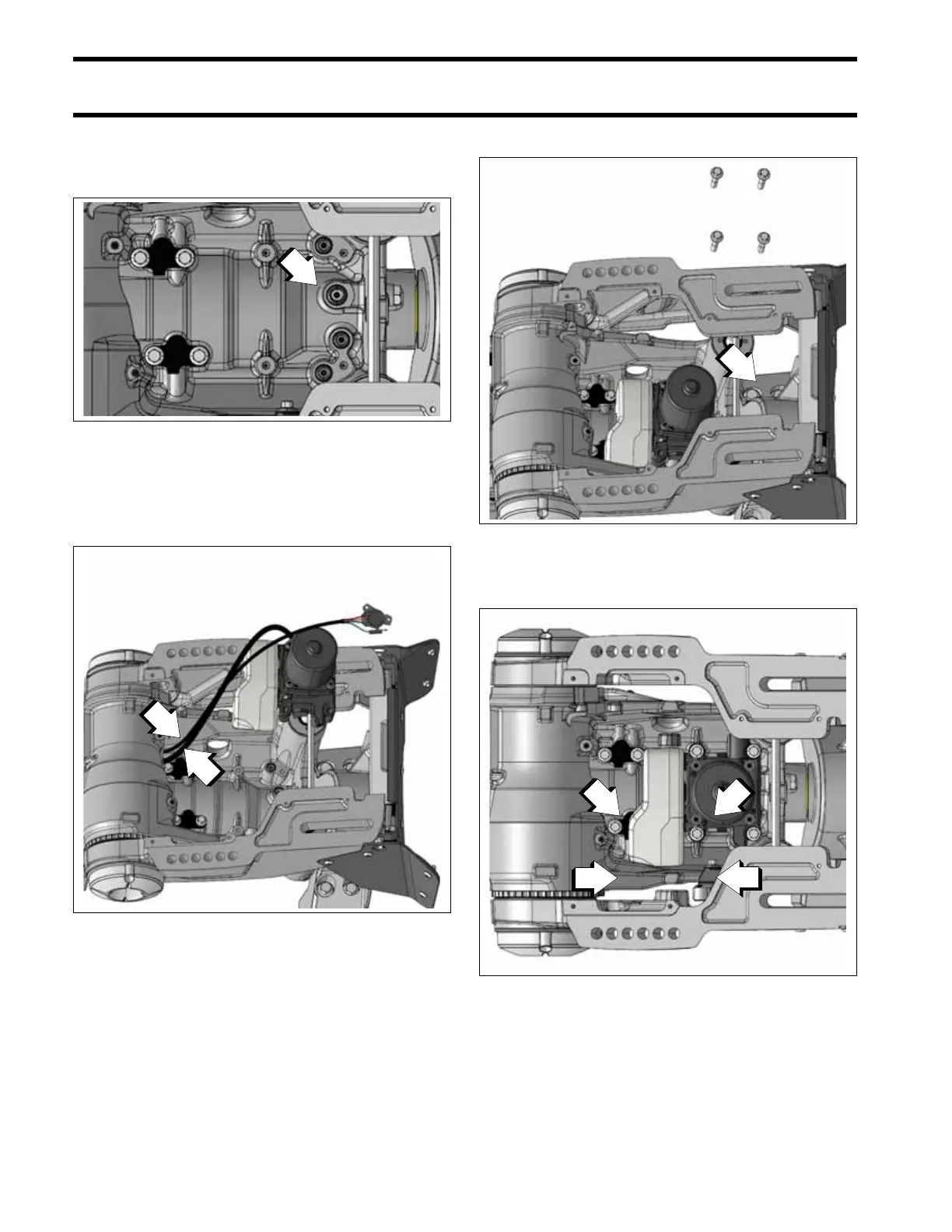

Install four filters and o-rings into the swivel
bracket. Install the large diameter o-ring in the
position shown.
Position the manifold assembly close to the swivel
bracket. Install the trim motor cable and trim
sender lead through the port side of the swivel
bracket.
Carefully place the manifold assembly into posi-
tion on the swivel bracket. Take care to keep
o-rings in position on the swivel bracket.
Install the four hex screws into the trim manifold.
Tighten screws in the sequence shown to a torque
of 18 to 20 Ft. lbs. (24.4 to 27 N·m).
Install the trim sender on the port stern bracket.
Refer to Trim Sender Service on p. 344.
1. Large o-ring
009433
1. Trim motor cable
2. Trim sender leads
009450
1. Four hex screws
009433
Tightening Sequence
009449
