Stern and Swivel
Stern & Swivel Bracket
342

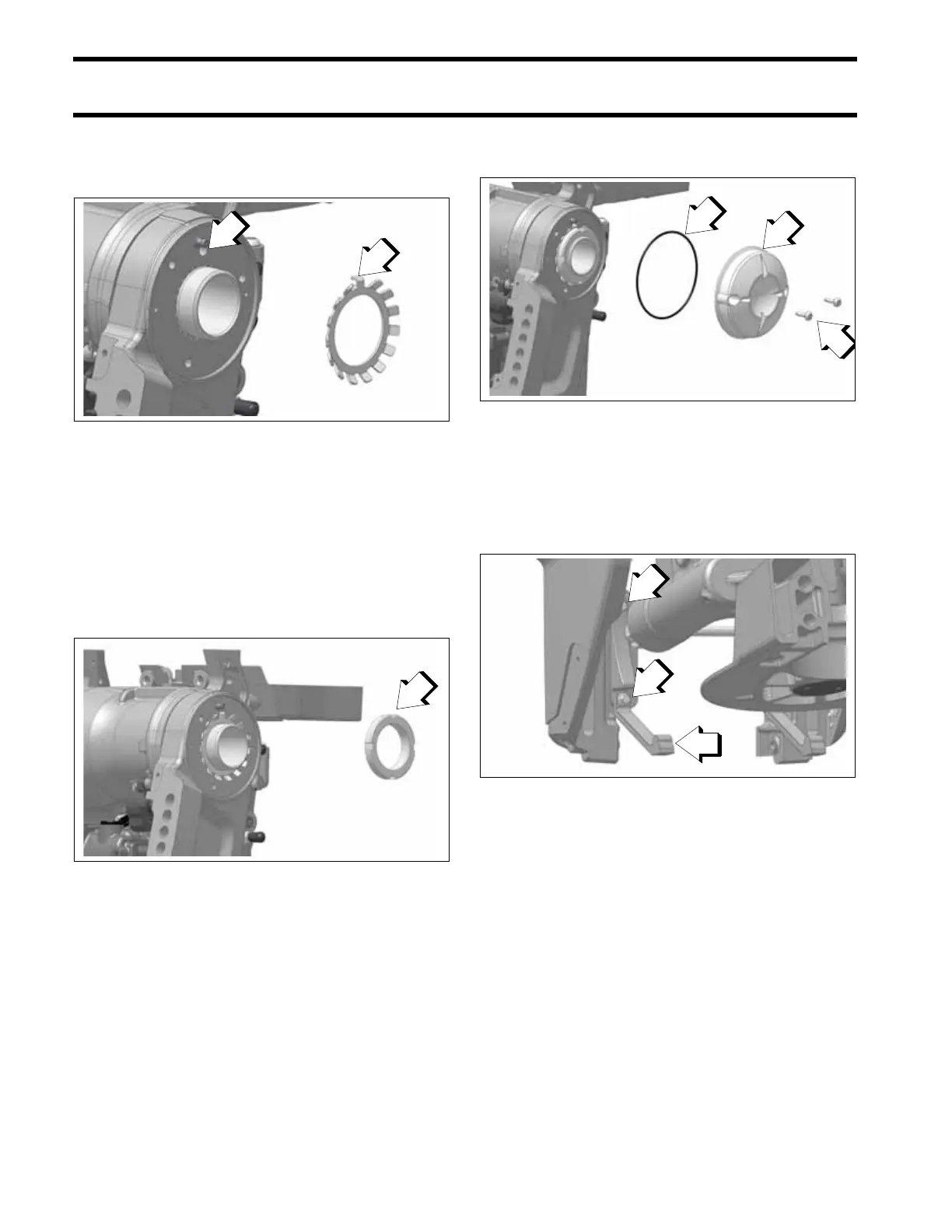

Install the locking washer on the tilt shaft. Make
sure the locating tab is inserted into the locating
hole.
Install the spanner nut. Use Spanner Socket,
P/N 359225, to tighten as follows:
• torque to 63 ft.lbs. (85 N·m).
• loosen spanner nut.
• torque to 30 to 35 ft.lbs. (41 to 47 N·m).
• if needed, continue to tighten until a slot in the
spanner nut is aligned with a locking tab on the
washer.
Use a suitable tool to bend the locking tab into the
spanner nut.
Install the large o-ring and cover. Install the two
screws and o-rings to secure the stern bracket
cover.
Tighten screws to a torque of 30 to 60 in.lbs. (4 to
6 N·m).
Install the lower bracket, then install the lower
ramp bracket screw. Tighten the upper and lower
ramp bracket screws to a torque of 84 to 106 in.
lbs. (10 to 12 N·m).
1. Locating tab
2. Locating hole
009638
1. Spanner nut
009639
1. Large o-ring
2. Cover
3. Screws and o-rings
009631
1. Bracket
2. Screws
009632
