Stern and Swivel
Stern & Swivel Bracket
346

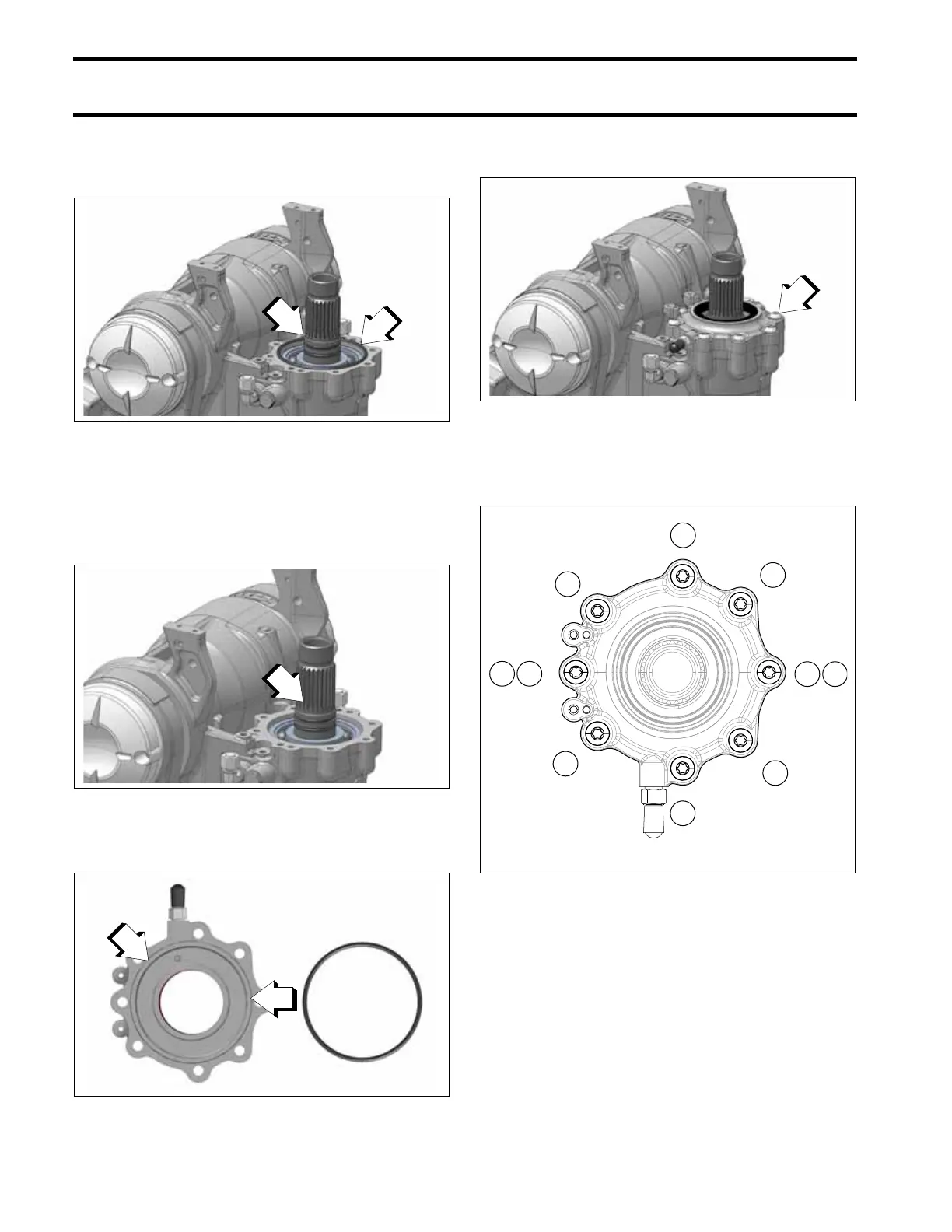

Remove the large o-ring from the end cap bore.
Remove the two small o-rings from the steering
shaft.
End Cap Installation
Apply Hydraulic Steering Fluid, P/N 770891, to
two new or-rings. Install the o-rings on the steer-
ing shaft.
Apply Triple Guard Grease to a new o-ring, and
install the o-ring in the groove in the end cap.
Install the end cap assembly and install the eight
screws hand-tight.
Use a T-40 Torx driver to tighten the screws in the
order shown to a torque of 26 to 28 ft.lbs. (36 to
38 N·m).
1. Large o-ring
2. Two small o-rings
009649
1. O-rings
009658
1. Groove in end cap
009657
1. Screws
009648
009659
