Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Unit (L418S/L410/L190) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Unit (L418S/L410/L190) > Procedure
Removing the DADF Unit (L418S/L410/L190)
■
Preparation
1) Remove the left cover.
2)Remove the DADF unit and reader unit
■
Procedure

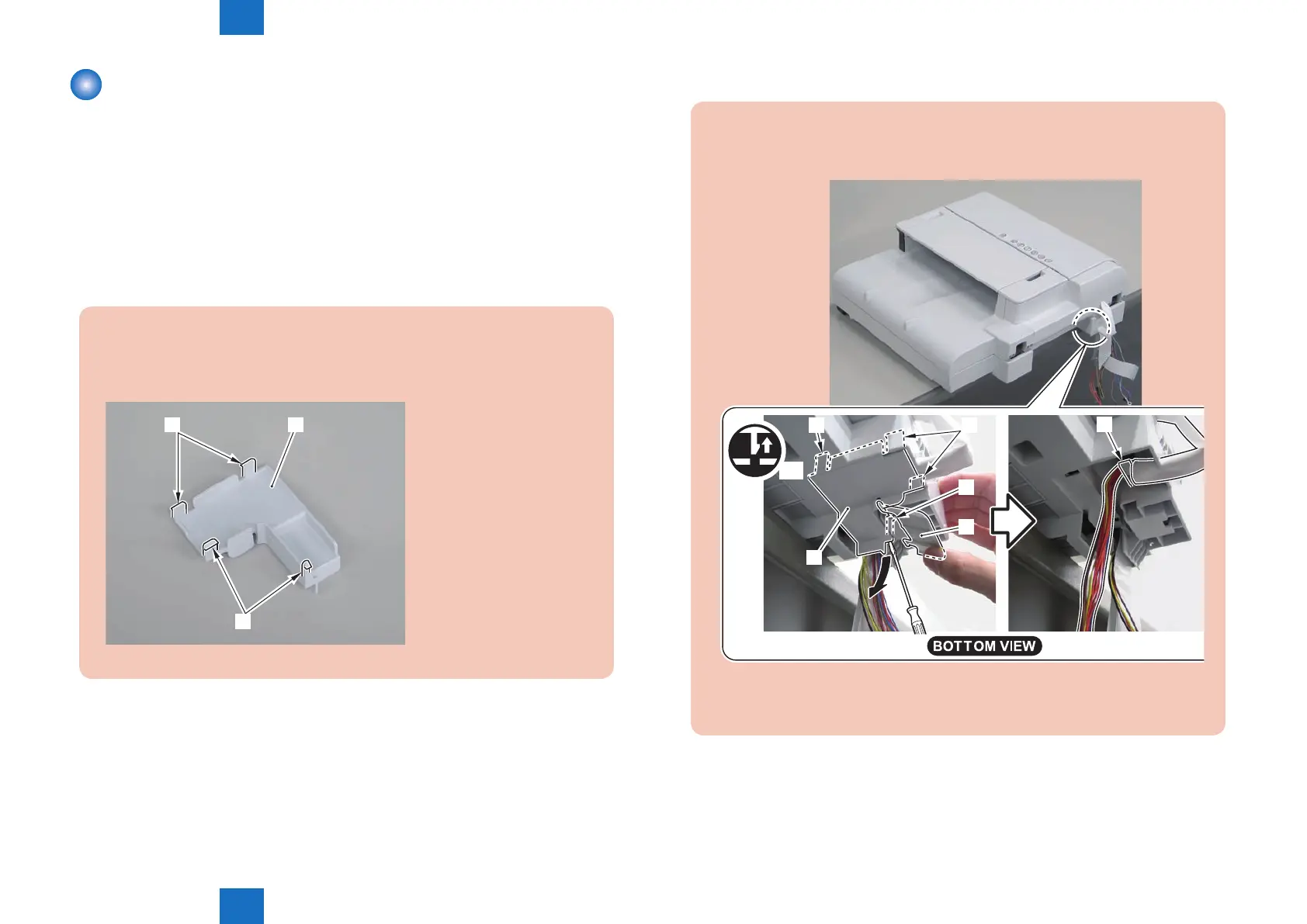

1) Remove the connector cover[1] and plate[2] , and remove the harness from the guide[A].
• 4 claws[3]
Caution:
When placing the removed copyboard cover and reader unit on the desk, oor,
etc.,be careful not to get the at cable and harnesses trapped under them.
[1][3]
[3]
Caution:
Be sure to hold the connector cover when removing it.
[1]
[2]
[3] [3]
[3]
[A]
x4
