Disassembly/Assembly > Controller System > Removing the Drive Belt (MF4890dw/MF4880dw) > Procedure
Disassembly/Assembly > Controller System > Removing the Drive Belt (MF4890dw/MF4880dw) > Procedure

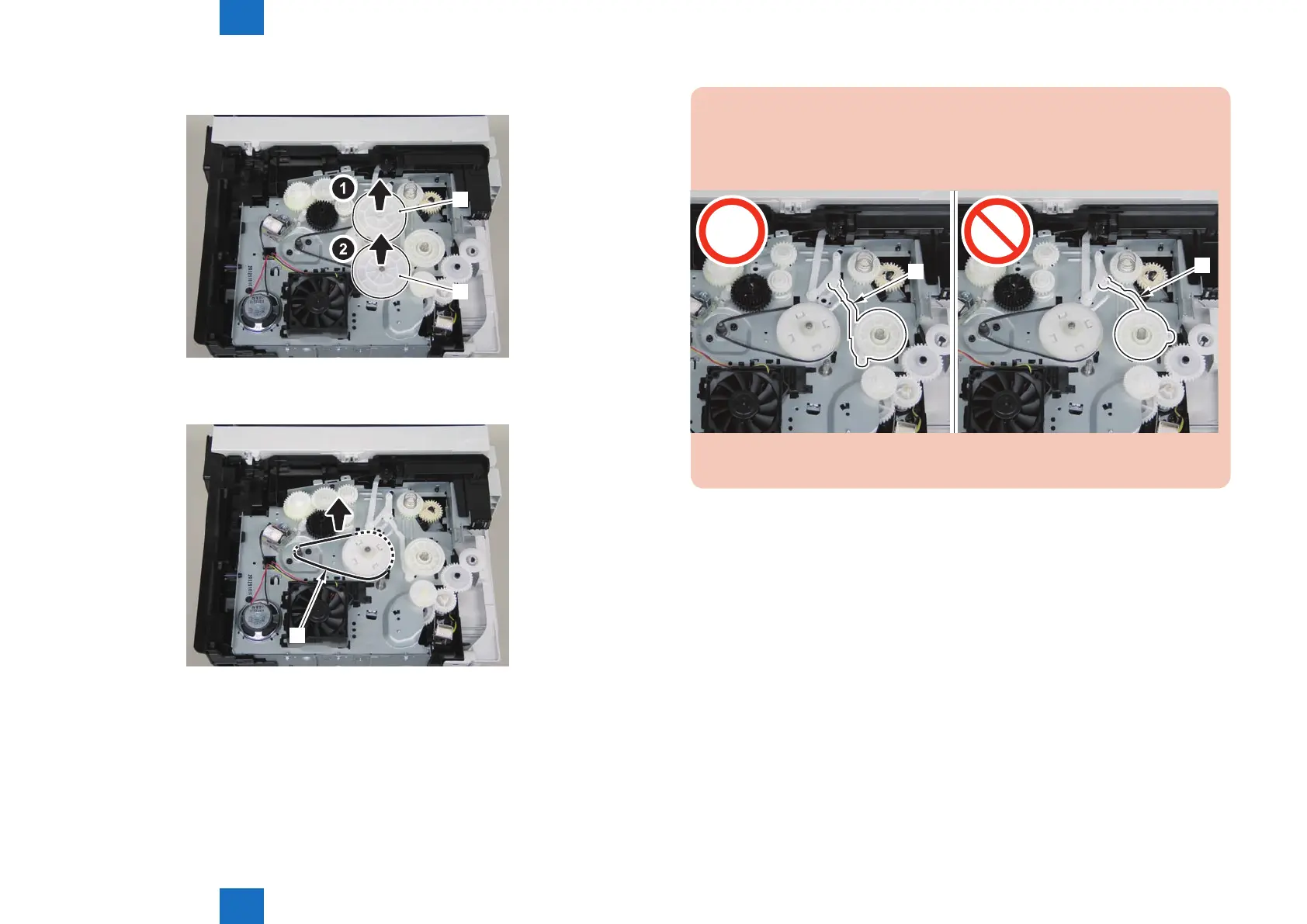

4)Remove the xing transmission gear[1] and the cartridge transmission gear[2]
[1]
[2]
5)Remove the drive belt.
[1]
F-4-318
F-4-319
Caution:
When assembling the drive gear, install the cartridge arm [1] according to the position
shown in the left picture.
[1]
[1]
F-4-320
