Disassembly/Assembly > Controller System > Removing the Drive Belt (MF4890dw/MF4880dw) > Procedure
Disassembly/Assembly > Controller System > Removing the Drive Belt (MF4890dw/MF4880dw) > Procedure

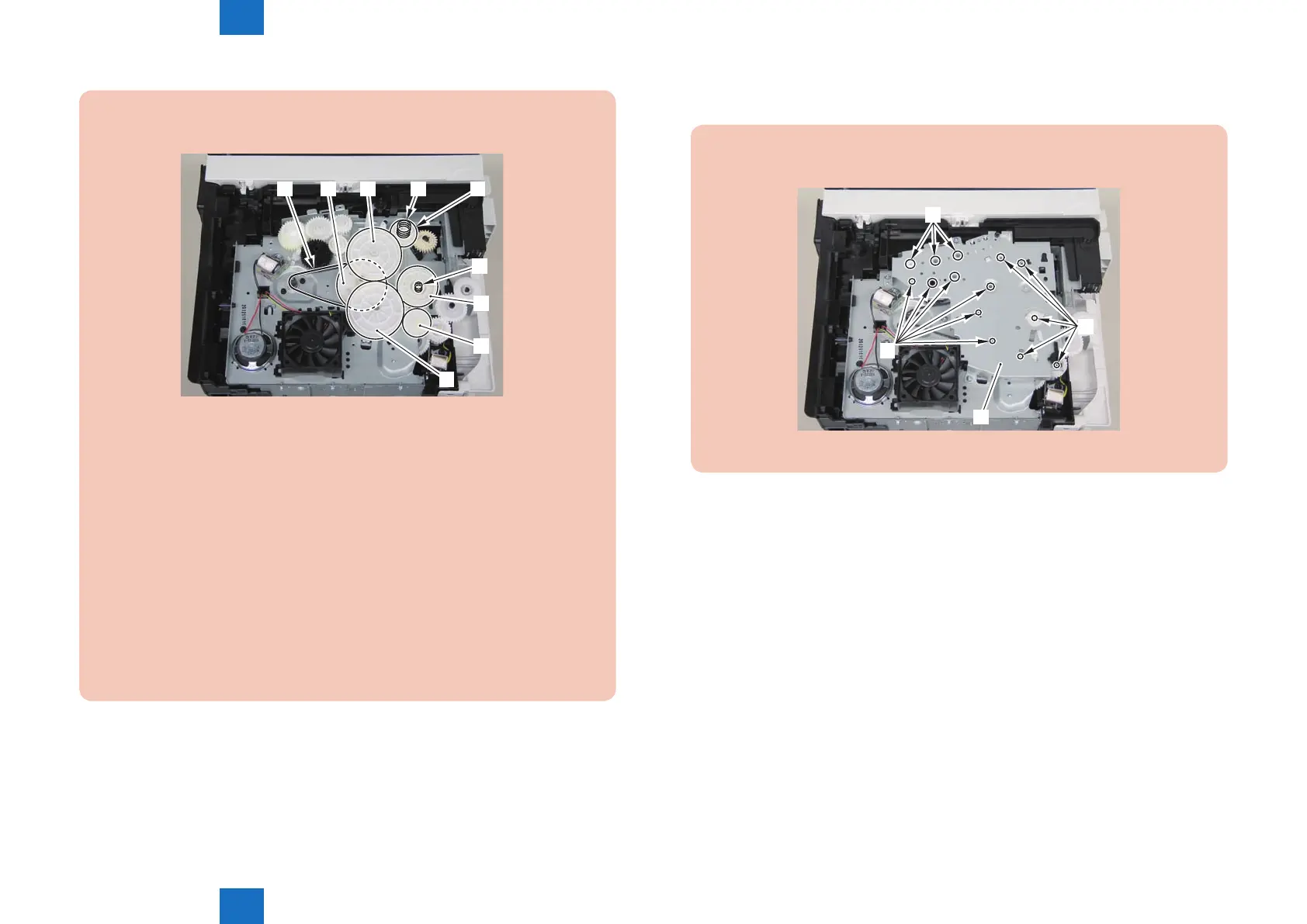

Caution:
Assemble the drive gear in the order shown in the below picture.
[1][2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[1] Primary deceleration pulley [6] Gear coupling
[2] Timing belt [7] Feed deceleration gear
[3] Fixing ratchet gear [8] Compression spring
[4] Fixing transmission gear [9] Compression spring
[5] Cartridge transmission gear
[6] Gear coupling
[7] Feed deceleration gear
[8] Compression spring
[9] Compression spring
F-4-321
Caution:
Align the drive cover [2] with the 14 shaft holes [1] to mount it.
[2]
[1]
[1]
[1]
F-4-322
