Disassembly/Assembly > Controller System > Removing the Drive Belt (D530) > Procedure
Disassembly/Assembly > Controller System > Removing the Drive Belt (D530) > Procedure

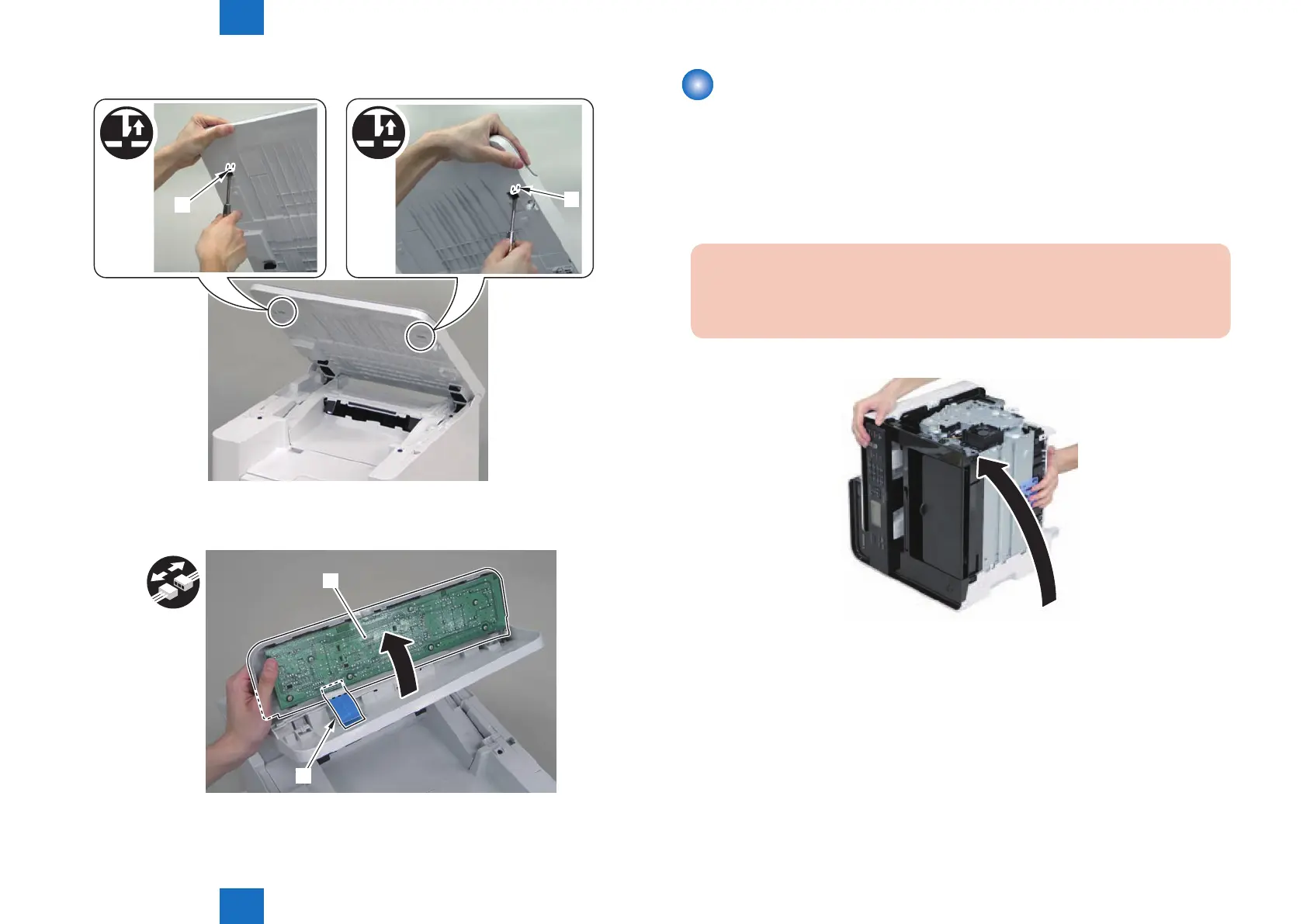

2) Remove the 2 claws[1]
[1]
[1]
3) Remove the control panel unit[1
• 1 at cable[2]
[1]
[2]
F-4-490
F-4-491
Removing the Drive Belt (D530)
■
Preparation
1) Remove the left cover
■
Procedure
1) Close the reader unit [1] and place the host machine with its left side down.
Caution:
Be sure to hold the reader unit rmly when turning the machine with its left side down
because the reader unit will be forced open by hinge spring pressure.
2)Remove the tension unit[1].
• 1 screw[2]
F-4-492
