Canon imageCLASS D530 - Page 269

4
4
4-193
4-193
Disassembly/Assembly > Controller System > Removing the Drive Belt (D530) > Procedure
Disassembly/Assembly > Controller System > Removing the Drive Belt (D530) > Procedure
[1]
[2]

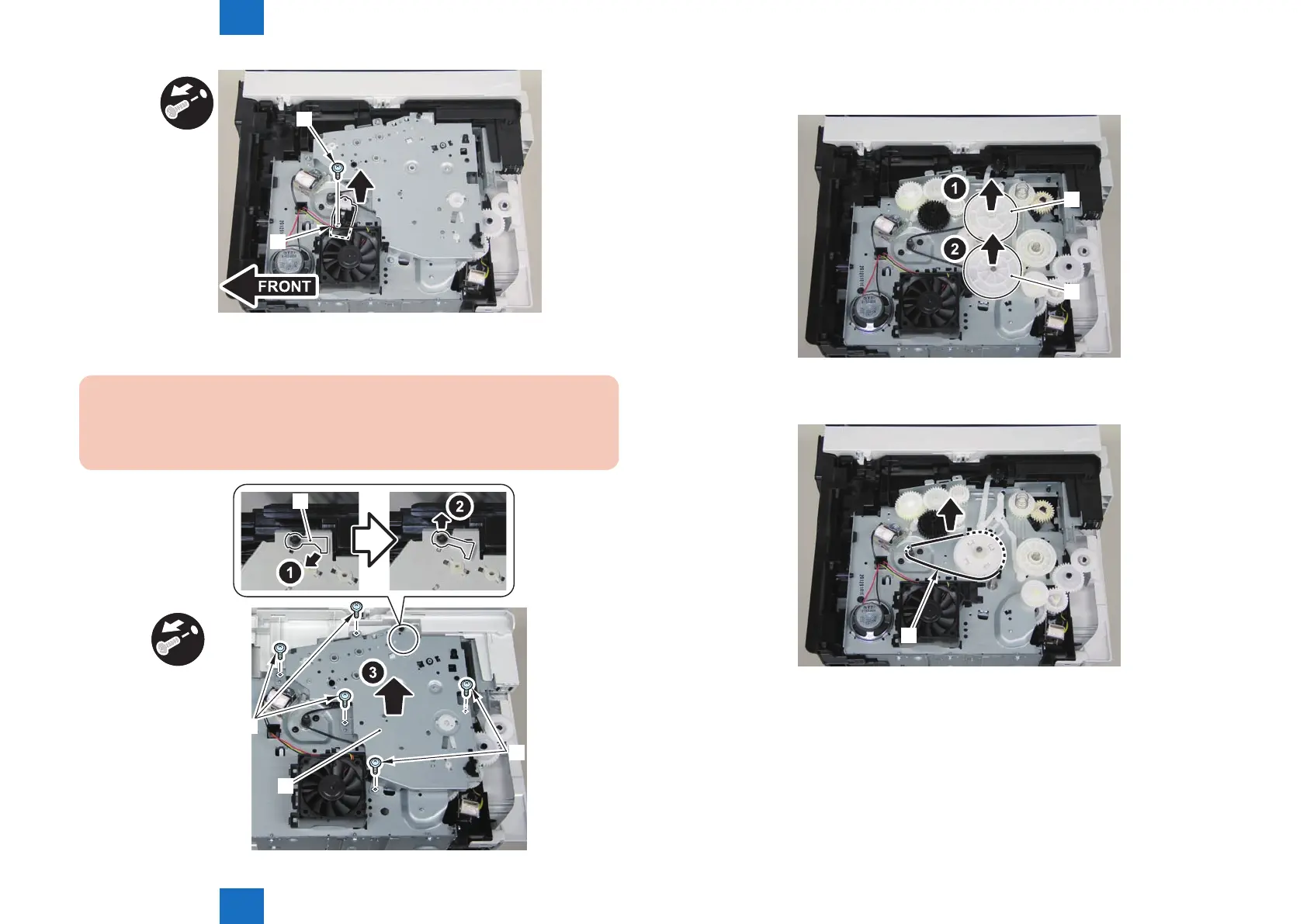

3)Remove the shaft support[1], and remove the drive cover[2]
• 5 screws[3]
Caution:
Be sure to raise the drive cover[2] straight above slowly to prevent the gear phase
from becoming displaced.
[1]
[2]
x5
[3]
[3]
F-4-493
F-4-494
4)Remove the xing transmission gear[1] and the cartridge transmission gear[2]
[1]
[2]
5)Remove the drive belt.
[1]
F-4-495
F-4-496
