Disassembly/Assembly > Controller System > Removing the Multi Pickup Sensor Unit (D530) > Procedure
Disassembly/Assembly > Controller System > Removing the Multi Pickup Sensor Unit (D530) > Procedure

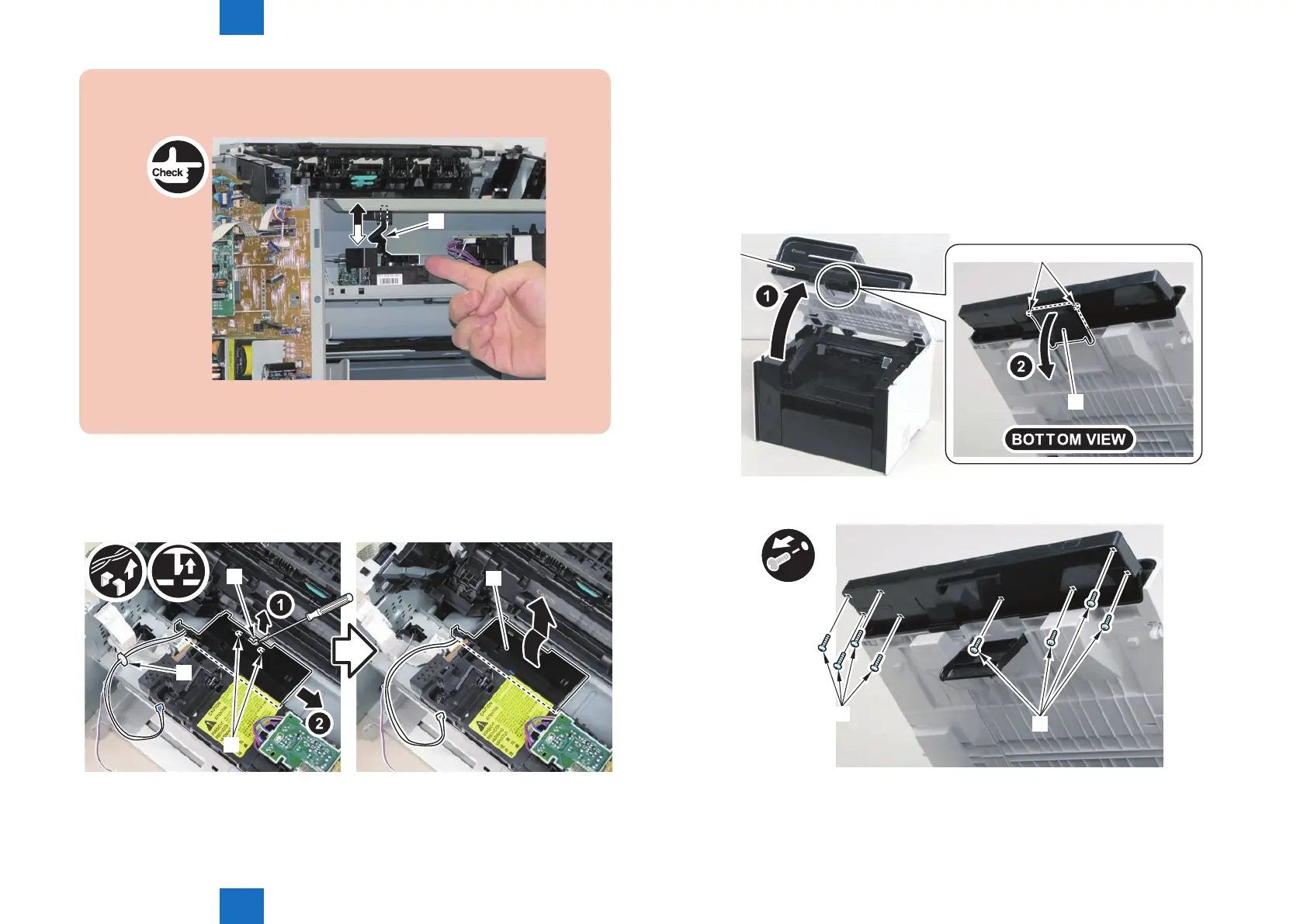

Caution:
Ensure that the shutter open/close lever [1] can move vertically.
[1]
F-4-545
3)Remove the multi pickup sensor unit[1]
• 1 wire saddle[2]
• 1 claw[3]
• 2 hooks[3]
[3]
[1]
[2]
[4]
F-4-546
Removing the Control Panel Unit (MF4780w/MF4770n/
MF4750/MF4730)
■
Procedure
1)Open the reader unit [1] and remove the control panel support plate[2]
• 2 protrusions[3]
[1]
[2]
[3]
2) Remove the 8 screws[1] on the back side of the control panel unit.
x8
[1]
[1]
F-4-547
F-4-548
