Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Solenoid (MF4780w/MF4770n/MF4750/MF4730) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Solenoid (MF4780w/MF4770n/MF4750/MF4730) > Procedure

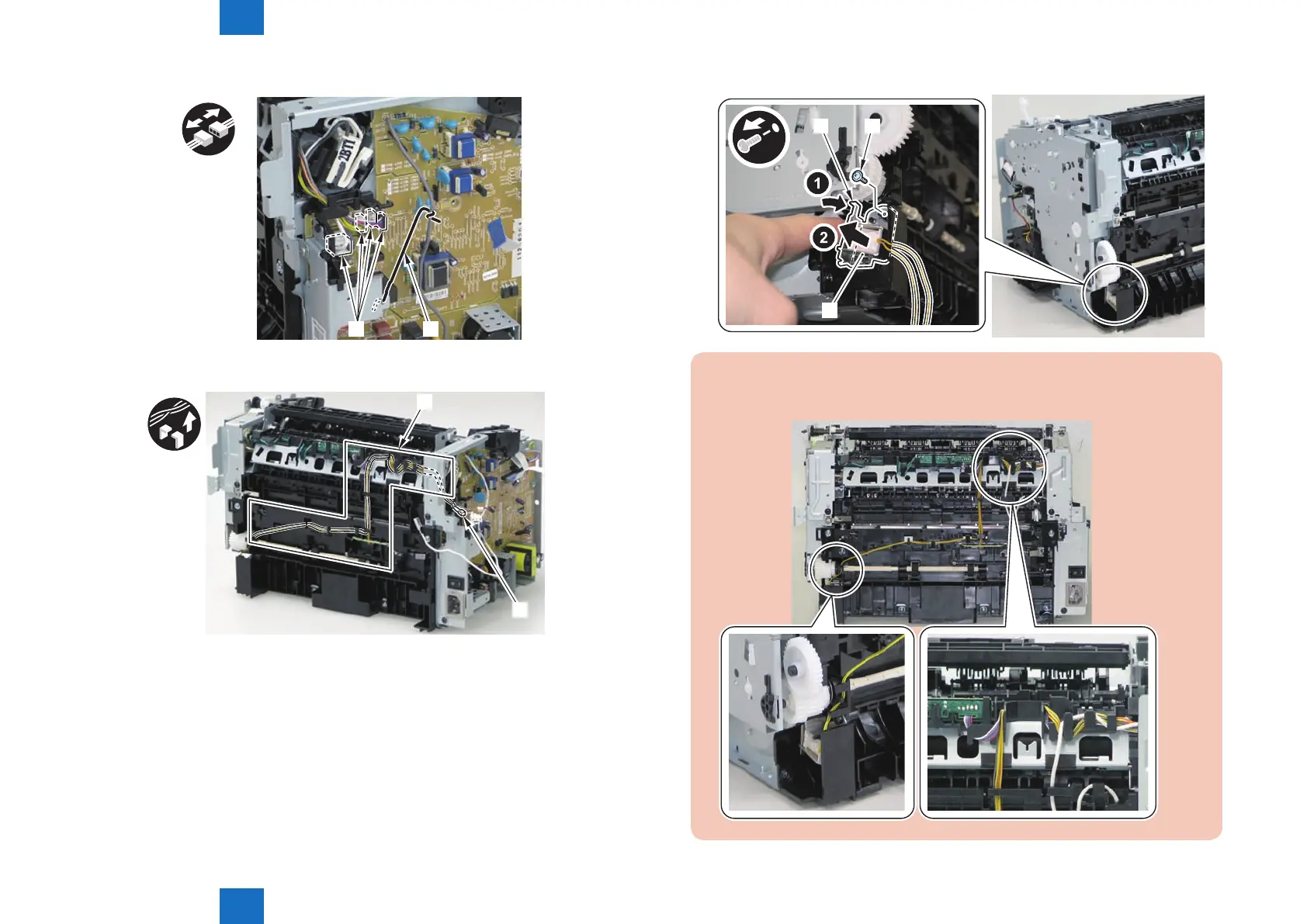

4)Remove the harness retaining spring[1] and 4 connectors[2].
x4
[1][2]
5)Free the pickup solenoid harness[1] from the harness guide[A]
[1]
[A]
F-4-1012
F-4-1013
6)Remove the screw[1], move the solenoid arm[2] and remove the pickup solenoid[3].
[1][2]
[3]
Caution:
The below picture shows how to wind the harness.
F-4-1014
