Disassembly/Assembly > Pickup And Feeding System > Removing the Duplex Solenoid (L418S/L410/L190) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Duplex Solenoid (L418S/L410/L190) > Procedure
Removing the Duplex Solenoid (L418S/L410/L190)
■
Preparation
1) Remove the left cover
2)Remove the DADF unit and reader unit.
3)Remove the right cover
4)Remove the front cover unit.
5)Remove the upper cover.
■
Procedure

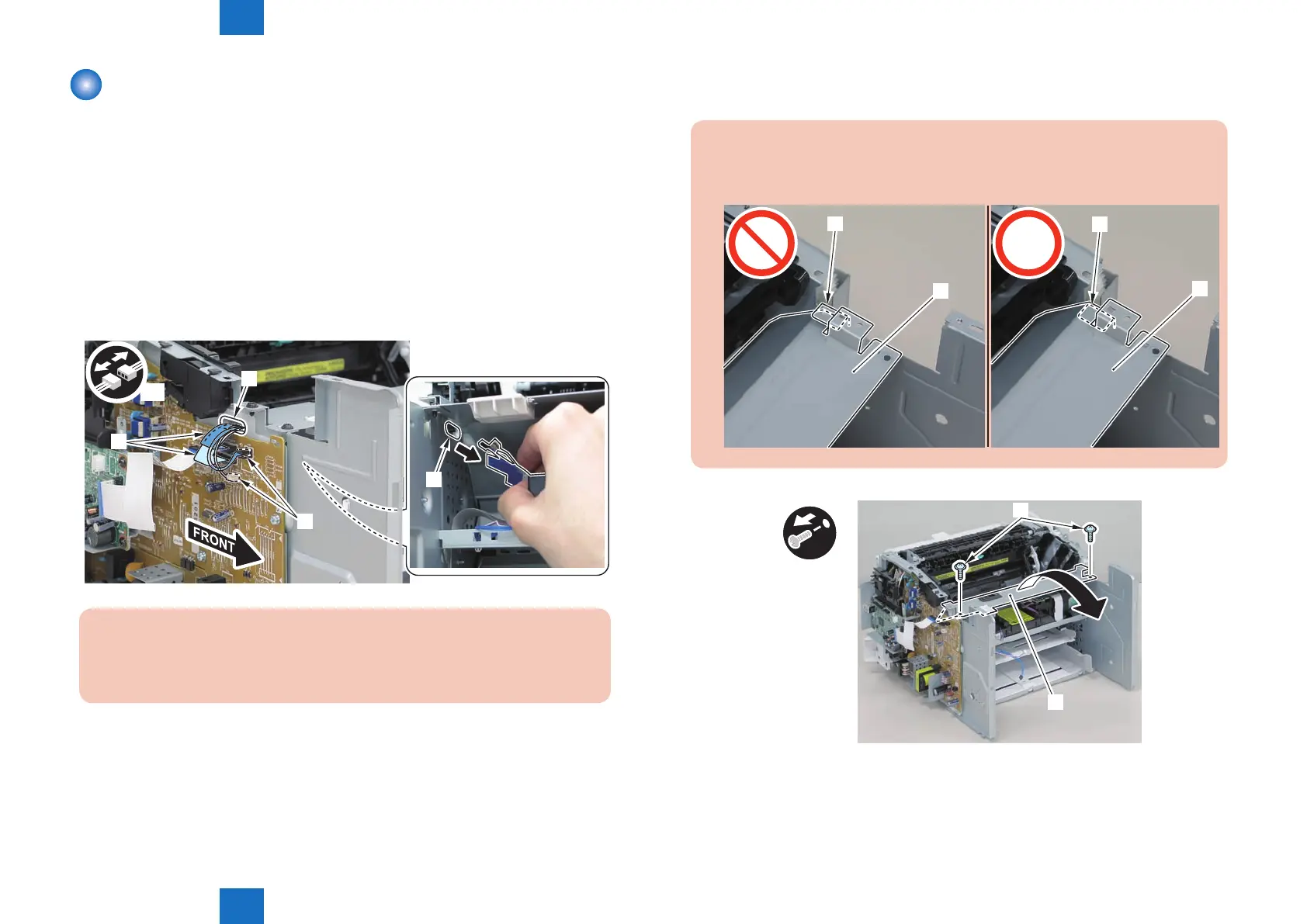

1) Remove the 2 connectors[1] and 2 at cables[2], and put them through the hole[A] of the
left side plate to the inside.
x4
[2]
[A]
[A]
[1]
Caution:
When removing the scanner cover, be sure to disconnect the at cable in advance
to prevent damage to the cable
F-4-1064
2)Remove the scanner cover[1]
• 2 screws(black TP)[2]
Caution:
When removing the scanner cover, be sure that the cover does not get under[A] part
of the right side plate.
[A]
[1]
[A]
[1]
[1]
x2
[2]
F-4-1065
