Disassembly/Assembly > Pickup And Feeding System > Removing the Duplex Solenoid (L418S/L410/L190) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Duplex Solenoid (L418S/L410/L190) > Procedure

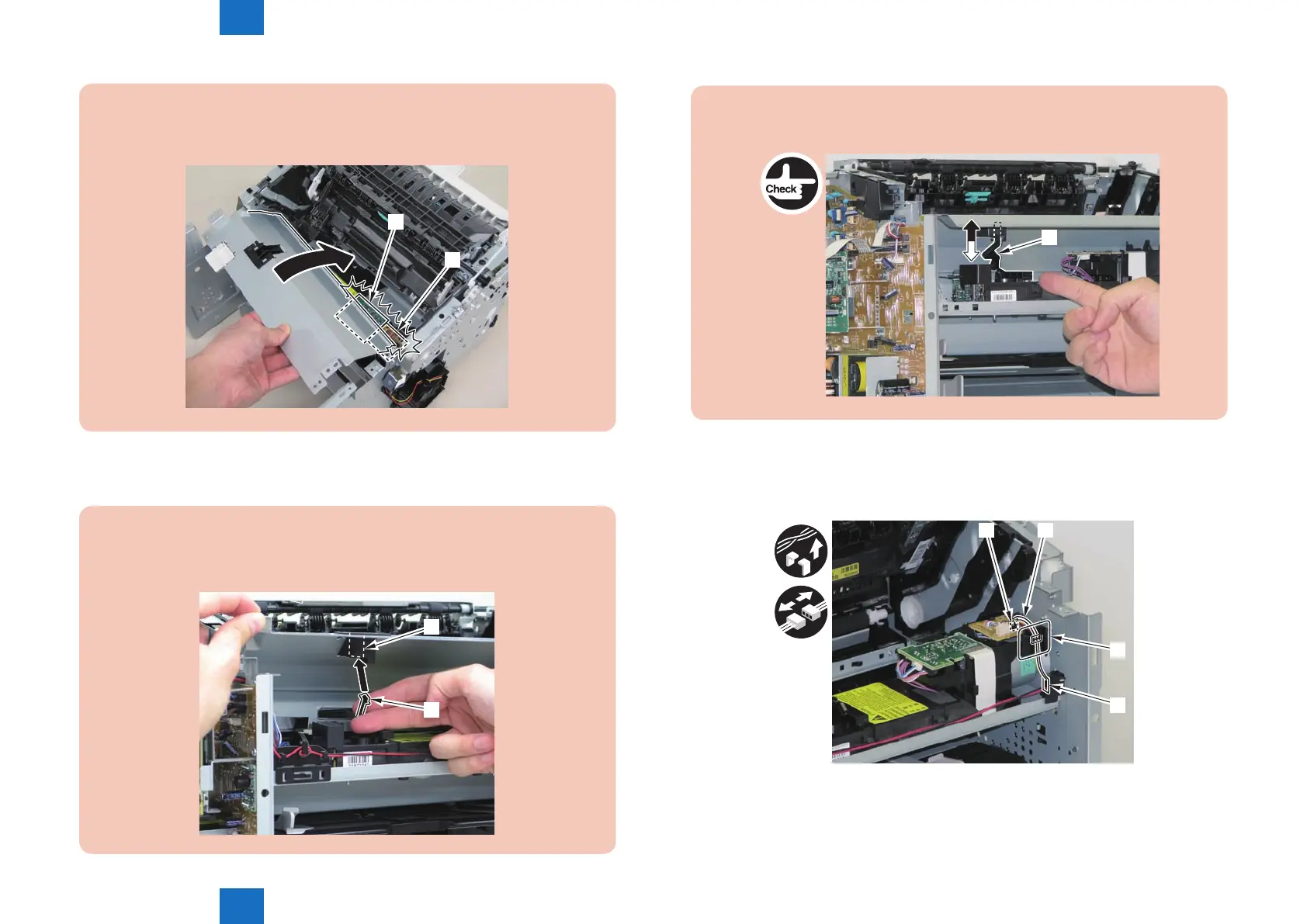

Caution:
When install the scanner cover, be careful not to damage the motor driver PCB[1]
and the duplex relay PCB[2]
[1]
[2]
F-4-1066
Caution:
When mounting the scanner cover, pass the shutter open/close lever [1] through the
hole [A] in the scanner cover.
[1]
[A]
F-4-1067
Caution:
Ensure that the shutter open/close lever [1] can move vertically.
[1]
F-4-1068
3)Free the solenoid harness[1] from the guide[A], and put it through the hole[B] of the right
side plate to the outside.
• 1 connector[2]
[2]
[A]
[1]
[B]
F-4-1069
