SPA subslot 36SPA subslot 23

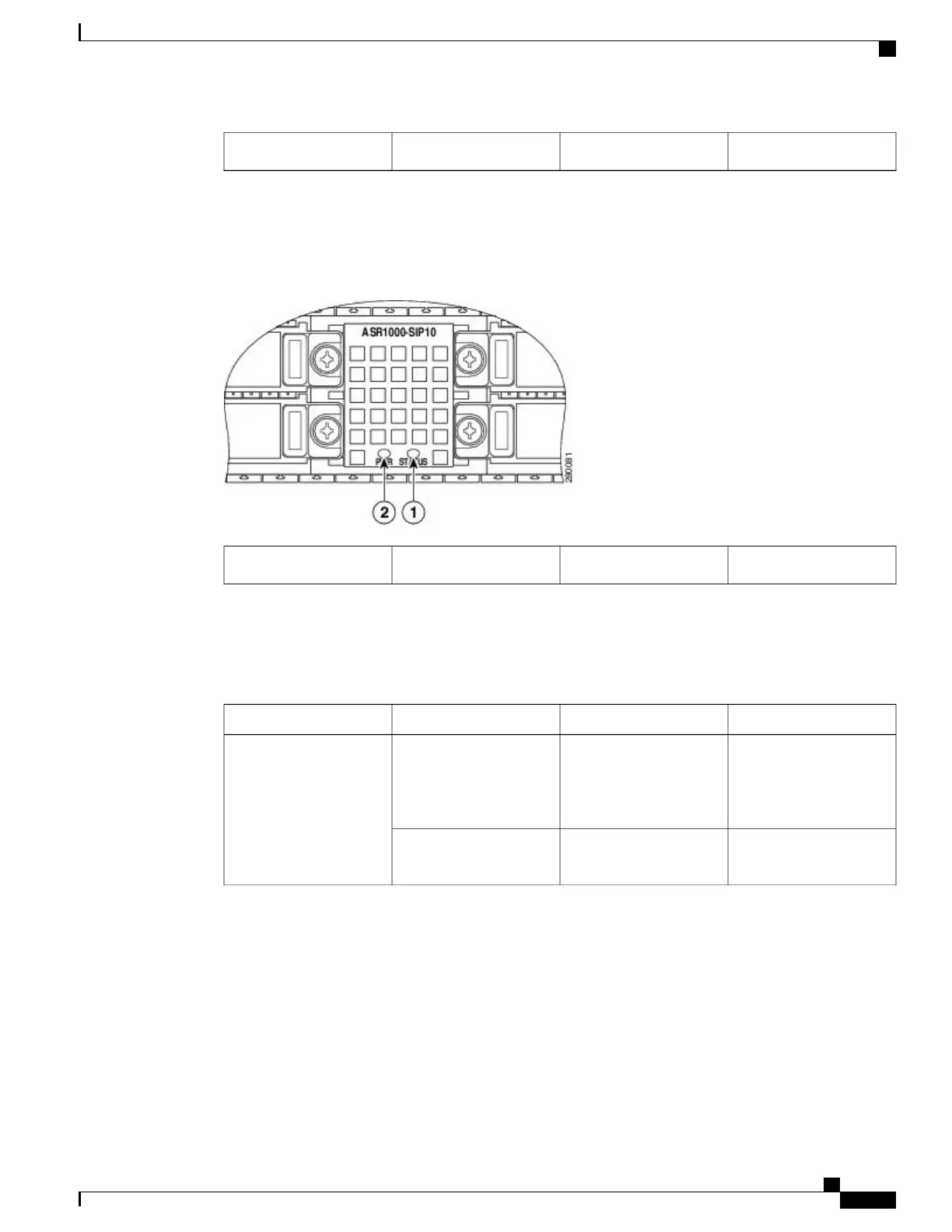

Figure 28: Cisco ASR1000-SIP10 SPA Interface Processor, on page 103 shows the LEDs on the Cisco
ASR1000-SIP10.
Figure 28: Cisco ASR1000-SIP10 SPA Interface Processor
PWR LED2STATUS LED1
Table 38: Cisco ASR1000-SIP LEDs , on page 103 describes the Cisco ASR1000-SIP10 and Cisco
ASR1000-SIP40 LEDs on the front panel.
Table 38: Cisco ASR1000-SIP LEDs
Behavior DescriptionColorLEDLED Label
Cisco ASR 1000 Series
SIP is powered on and all
power supplies are within
their tolerances
Solid greenPowerPWR
Cisco ASR 1000 Series
SIP is powered off
Off
Cisco ASR 1000 Series Router Hardware Installation Guide
103
Cisco ASR 1000 Series Router SPA Interface Processors (SIPs)
Cisco ASR 1000 Series SPA Interface Processor

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
