Cisco ASR 1001 Hardware Installation Guide

——LINK LED—Indicates
MGMT Ethernet port
activity
6
•
IDC-4XT3
IDC-4XT3 can support up to four unchannelized DS3 (44.736 Mbps) ports (see the following image).

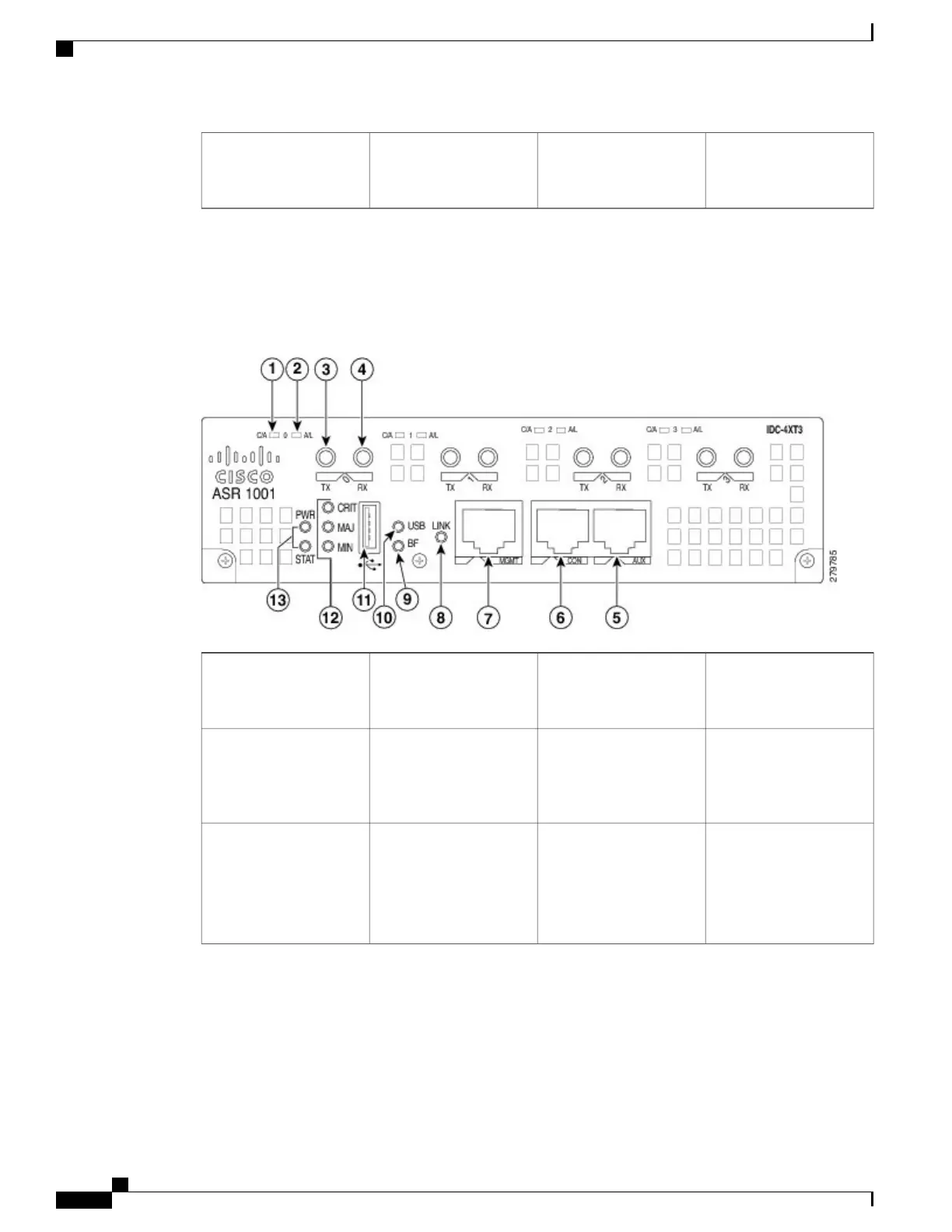

Figure 200: Cisco ASR 1001 Router with IDC-4XT3
LINK LED—Indicates
MGMT Ethernet port
activity
8
C/A—Carrier/Alarm LED
1
BF—Internal bootflash
LED that indicates
activity of the EUSB
device
9
A/L—Active/Loopback
LED
2
USB LED10
T3 TX Port—Transmit
port 0
This T3 port uses a
1.0/2.3 RF connector with
75-ohm impedance.
3
Cisco ASR 1000 Series Router Hardware Installation Guide
414
Cisco ASR 1001 Router Overview and Installation
Cisco ASR 1001 Router Architecture

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
