Cisco ASR 1001 Hardware Installation Guide

IDC-CHT1/E1 can support eight ports of fully channelized T1 or E1 interfaces (see Figure 199: Cisco ASR
1001 Router with IDC-CHT1/E1, on page 413).

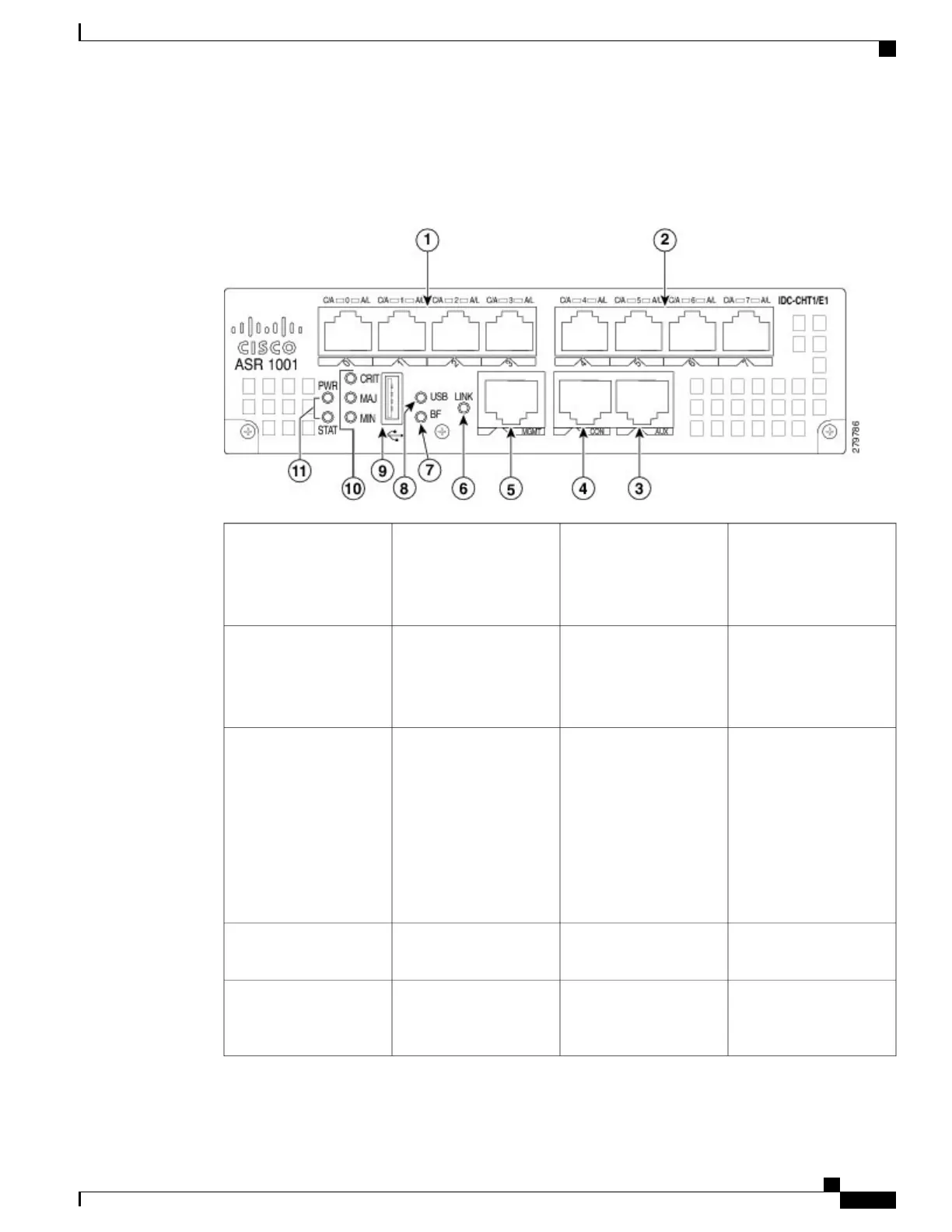

Figure 199: Cisco ASR 1001 Router with IDC-CHT1/E1
BF—Internal bootflash
LED that indicates
activity of the EUSB
device
7
T1/E1 Ports—Ports 0
through 3
These T1/E1 ports are
RJ-45 ports.
1
USB LED8
T1/E1 Ports—Ports 4
through 7
These T1/E1 ports are
RJ-45 ports.
2
USB port—USB
high-speed (480 Mbps)
port used for secure key
storage, VPN credentials
storage, or bulk flash
storage of image and
configuration backup
This USB port is an A
port.
9
AUX—RS-232 auxiliary
port
3
STAT—Status LED
10
CON—RS-232 console
port
4
PWR—Power LED
11
MGMT—RJ-45
10/100/1000 management
Ethernet port
5
Cisco ASR 1000 Series Router Hardware Installation Guide
413
Cisco ASR 1001 Router Overview and Installation
Cisco ASR 1001 Router Architecture

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
