The power supply has a handle to be used for insertion and extraction. The module must be supported with
one hand because of its length. The following figure shows the Cisco ASR 1001 Router DC power supplies.

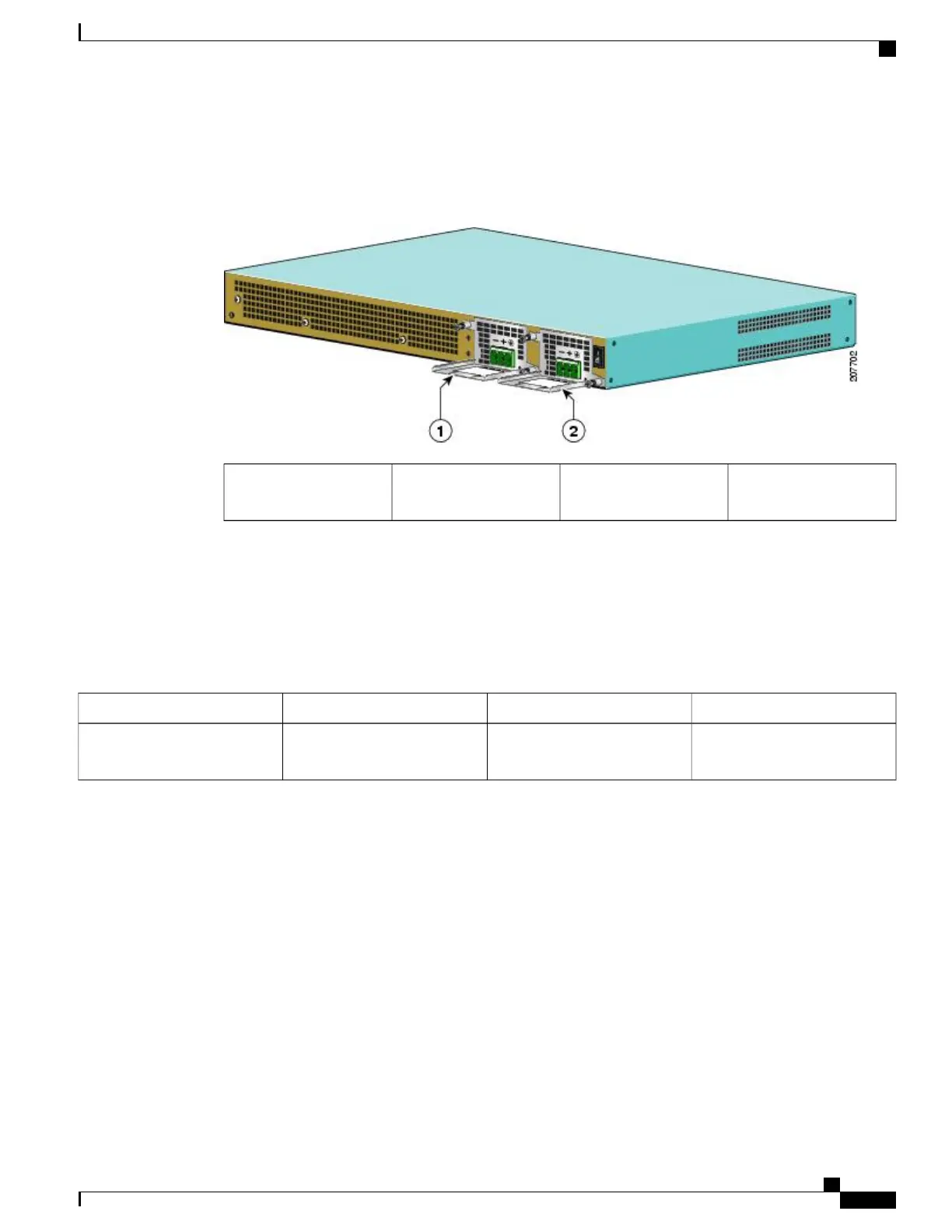

Figure 24: Cisco ASR 1001 Router With DC Power Supplies
DC power supply in slot
PS1
2DC power supply in slot
PS0
1
AC/DC Power System Input Range and Voltage for Cisco ASR 1001
The power supply DC Input Range is 40.5 to 72 VDC, and the AC Input Range is 85 to 264 VAC. The
following table describes the Cisco ASR 1001 Router power supply LED.
Table 35: Cisco ASR 1001 Router
AC and DC Power Supply LED
DescriptionColorLEDLED Label
Off if output power is within
specification range
RedIndicates power supply statusPWR OK
Cisco ASR 1000 Series Router Hardware Installation Guide
85
Cisco ASR 1000 Series Routers Component Overview
Cisco ASR 1001 Router DC Power Supply
