Cisco ASR 1002-X Hardware Installation Guide

Rear View

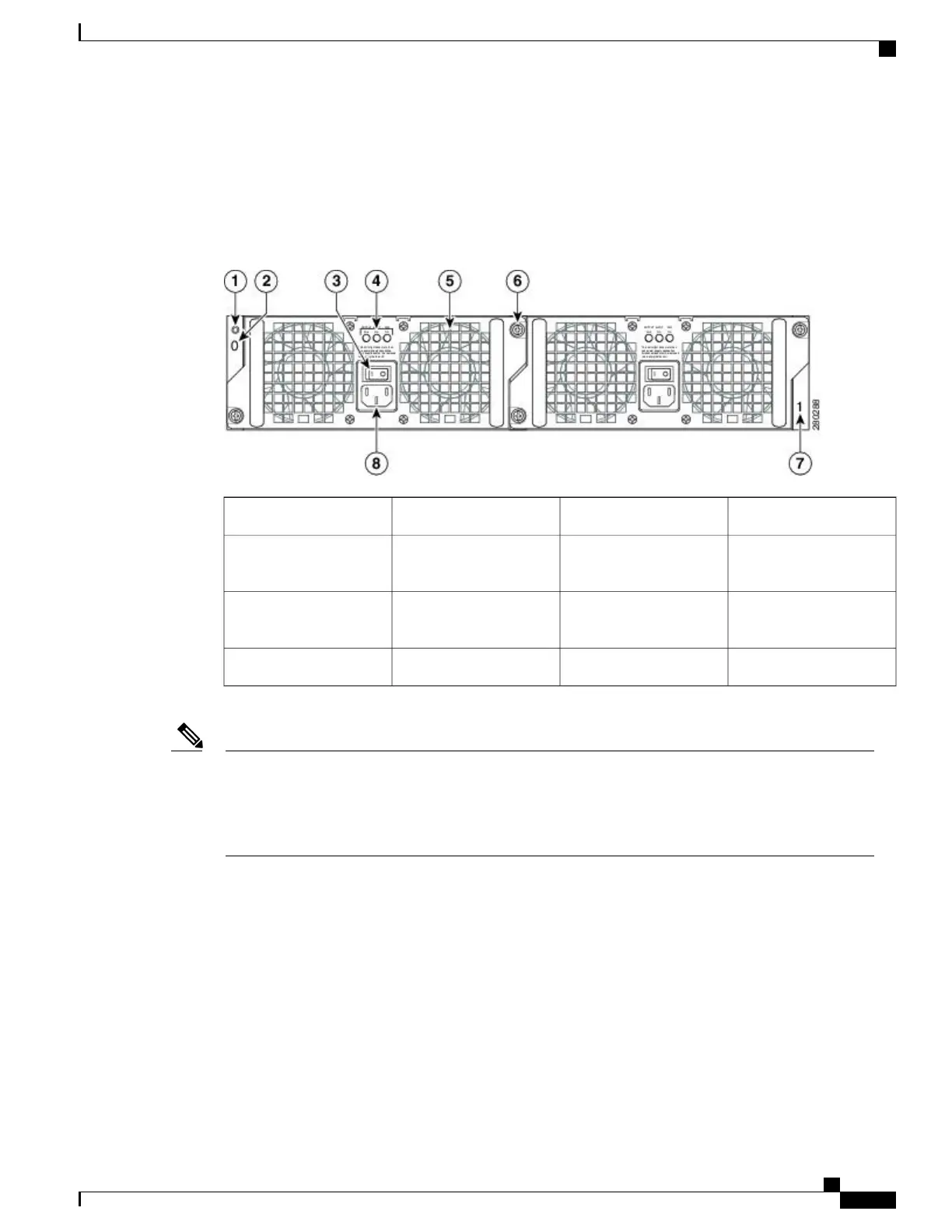

The following image shows the rear of the Cisco ASR 1002-F Router with AC power supplies installed.
Figure 116: Cisco ASR 1002-F Router With AC Power Supplies — Rear View
Fan5Chassis ESD socket1
Captive installation screw6AC power supply slot 0
label
2
AC power supply slot 1
label
7AC power supply On
(|)/Off (O) switch
3
AC power inlet8AC power supply LEDs4
On the side of the Cisco ASR 1002-F Router there is an eUSB panel door and the grounding lug as shown
in the “Cisco ASR 1002-F Router Chassis Ground Lug Location and eUSB Side Panel Door” figure in the
Attaching a Chassis Ground Connection section. This panel door must not be opened. There is a Do Not
Tamper label on the panel door. Do not remove the label. If there is a problem with the eUSB flash card,
then the chassis should be returned.
Note
Cisco ASR 1000 Series Router Hardware Installation Guide
277
Cisco ASR 1002-F Router Overview and Installation
Rear View

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
