Two-Post Rack Installation
The Cisco ASR 1006 Router can be installed in a two-post rack, either 19 inch or 23 inch. The following
image shows the router installed on a two-post rack.

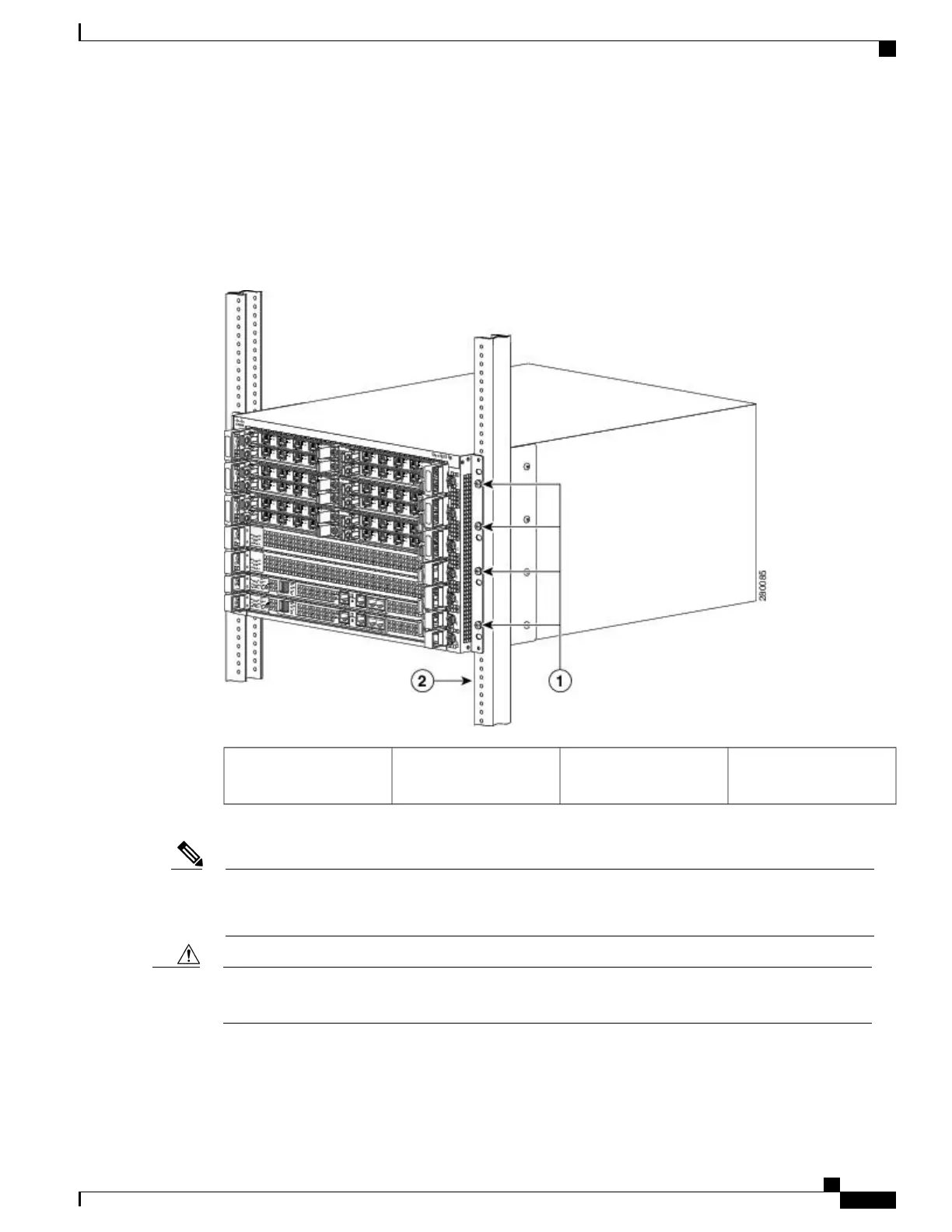

Figure 43: Installing the Cisco ASR 1006 Router in a Two-Post Equipment Rack
Two-post equipment rack
rail
2Cisco ASR 1006 Router
front rack-mount bracket
1
Inner clearance (the width between the inner sides of the two posts or rails) must be at least 19 inches
(48.26 cm). The height of the chassis is 10.45 inches (26.543 cm). Airflow through the chassis is from
front to back.
Note
If you are using a two-post rack secure the rack to the floor surface to prevent tipping and avoid bodily
injury and component damage.
Caution
Cisco ASR 1000 Series Router Hardware Installation Guide
155
Cisco ASR 1006 Router Overview and Installation
Two-Post Rack Installation

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
