Cisco ASR 1002-X Hardware Installation Guide

Maximum System SupportDefaultMemory Type
Hard disk drive 40 GB for code storage or
solid-state drive 32 GB support
1 GB (Partitioned: 2x32MB for NVRAM
and the remaining for mass storage
eUSB
Cisco ASR 1006 Router Ethernet RJ-45 Port Pinouts
The Cisco ASR 1006 Router has an RJ-45 port for the 10/100/1000 Ethernet connection. The RJ-45 port
supports IEEE 802.3ab (Gigabit Ethernet) and IEEE 802.3u (Fast Ethernet) interfaces compliant with 10BASET,
100BASETX, and 1000BASET specifications.
The RJ-45 port supports standard straight-through and crossover Category 5 UTP cables with RJ-45 connectors.
Cisco does not supply Category 5 UTP cables; these cables are available commercially.

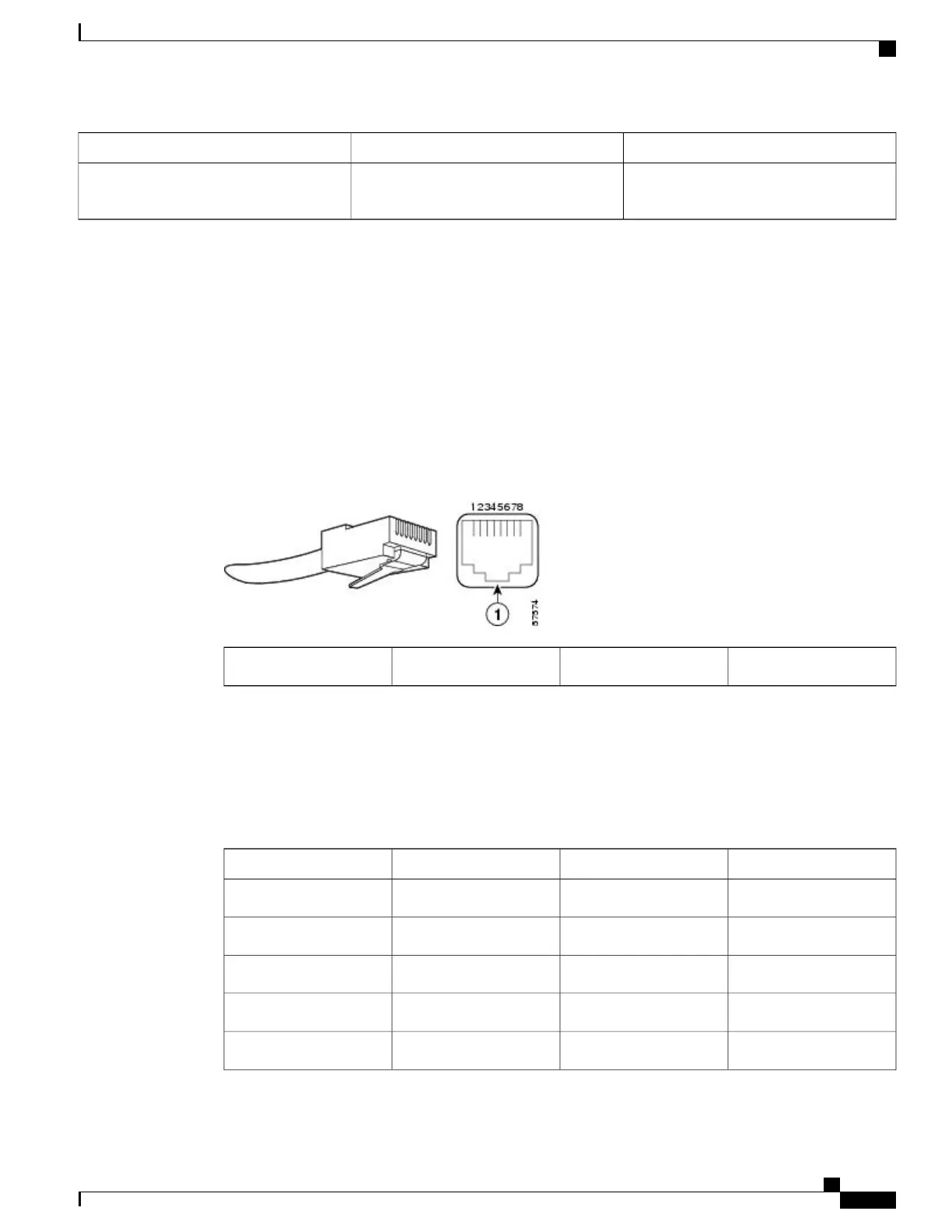

The following figure shows an RJ-45 port and connector.
Figure 312: RJ-45 Port and Connector for Cisco ASR 1006 Router
——
RJ-45 connector1
Cisco ASR 1006 Router MGMT Ethernet Port Pinouts
The following table lists the RJ-45 port pinout for the front panel Management Ethernet port.
Table 97: RJ-45 Management Ethernet Port Pinouts
DescriptionDirectionSignalPin
Transmit DataOutTX Data+1
Transmit DataOut
TX Data–
2
Receive DataInRX Data+3
——
NC4, 5
Receive DataIn
RX Data–
6
Cisco ASR 1000 Series Router Hardware Installation Guide
617
Cisco ASR 1000 Series Router Specifications
Cisco ASR 1006 Router Ethernet RJ-45 Port Pinouts

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
