Cisco ASR 1002-X Hardware Installation Guide

The following image shows where to attach the cable-management brackets to the Cisco ASR 1004 Router in a rack.

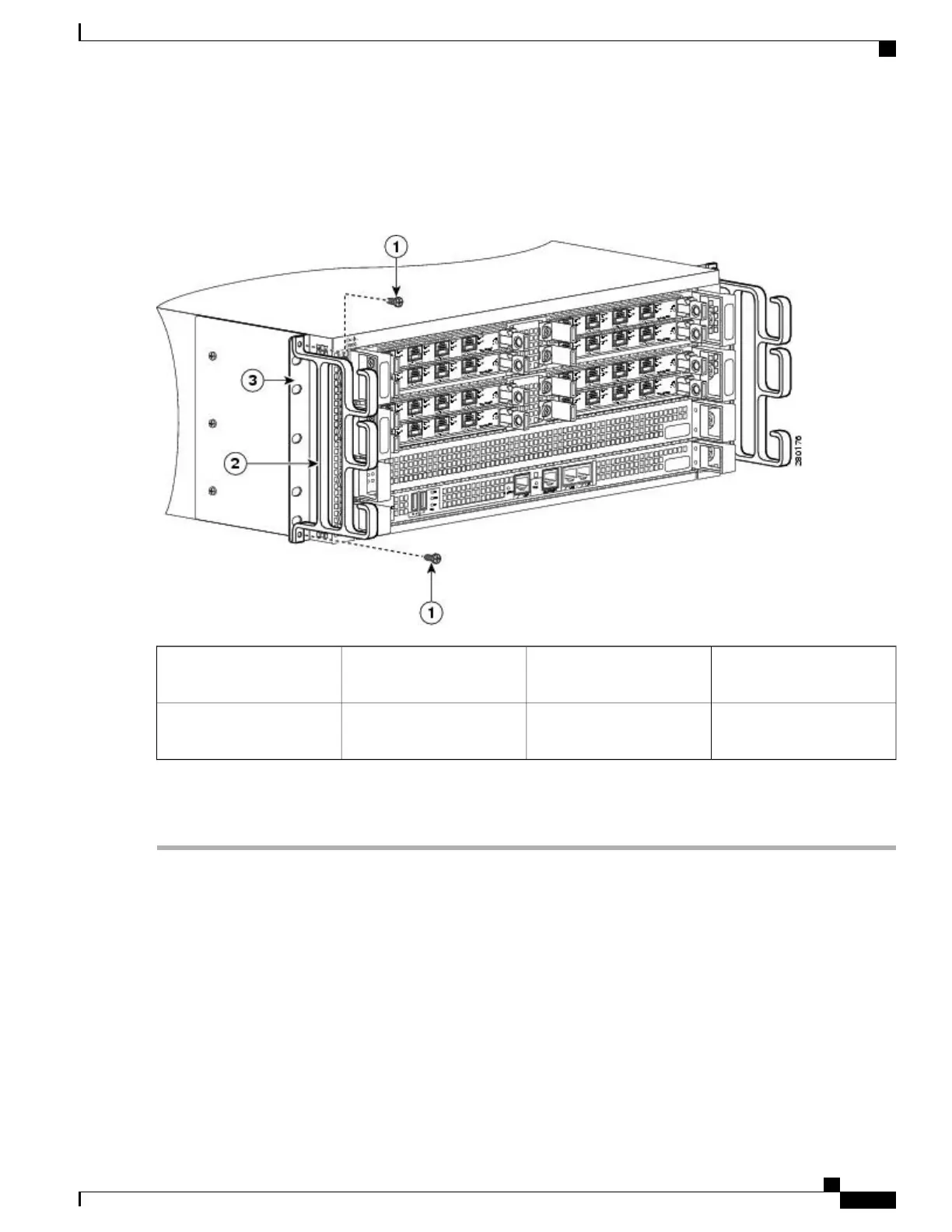

Figure 71: Chassis Rack-Mount Bracket Ear Holes for the Cable-Management Bracket
Chassis rack-mount bracket3Cable-management bracket
top and bottom screw
1
——
Cable-management bracket
and U feature device
2
Step 3
Using the bottom rack-mount ear hole, insert the screw through cable-management bracket and into the chassis rack-mount
(see Figure 71: Chassis Rack-Mount Bracket Ear Holes for the Cable-Management Bracket, on page 205).
What to Do Next
This completes the procedure for installing the cable-management brackets on the chassis in a rack.
Connecting the Shared Port Adapter Cables
The instructions for connecting the cables for the shared port adapter installed in the Cisco ASR 1004 Router
are contained in the respective configuration documents for each port adapter. For example, if you are
connecting the optical fiber cables for the PA-POS-OC3 port adapter, see PA-POS-OC3 Port Adapter
Installation and Configuration at the following location:
Cisco ASR 1000 Series Router Hardware Installation Guide
205
Cisco ASR 1004 Router Overview and Installation
Connecting the Shared Port Adapter Cables

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
