The folowing image shows the Cisco ASR 1002-F Router on a two-post rack.

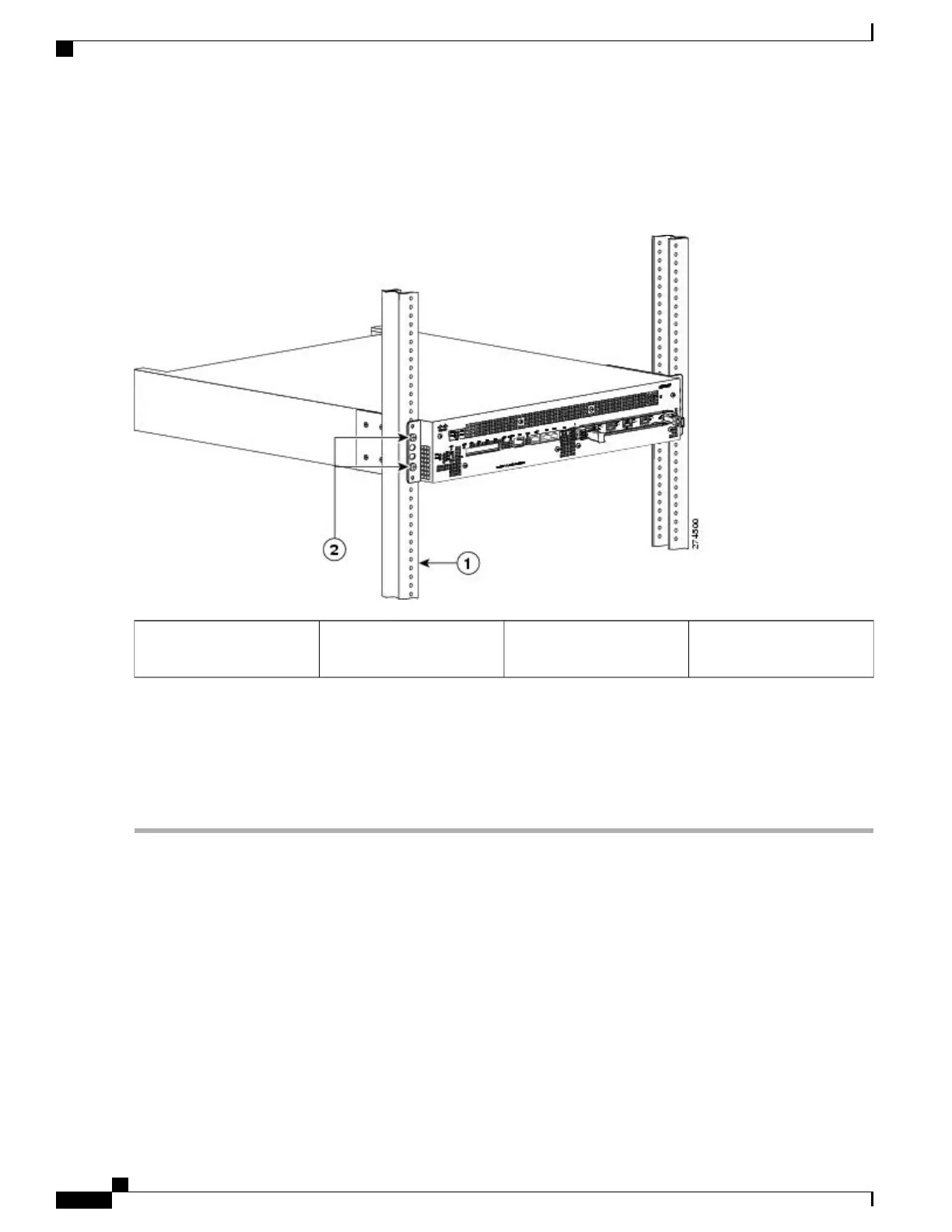

Figure 129: Installing the Cisco ASR 1002-F Router on a Two-Post Equipment Rack
Front rack-mount bracket ear
and holes
2Rack equipment rail1
Step 2
Slide the chassis into the rack, pushing it back until the brackets meet the mounting strips or posts on both sides of the
rack.
Step 3
Keeping the brackets flush against the posts or mounting strips, align the holes in the brackets with the holes on the rack
or mounting strip.
Step 4
For each bracket, insert and tighten two screws to the rack on both sides.
What to Do Next
This completes the procedure for installing the chassis on a two-post rack. Proceed to the Attaching a Chassis
Ground Connection. to continue the installation.
Four-Post Rack Installation
The Cisco ASR 1002-F Router can be flush-mounted in a 19-inch equipment rack using the rack-mounting
kit provided with your system. When handling the chassis, always follow proper lifting practices. See the
“Chassis-Lifting Guidelines” section.
Cisco ASR 1000 Series Router Hardware Installation Guide
298
Cisco ASR 1002-F Router Overview and Installation
Four-Post Rack Installation

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
