Cisco ASR 1002-X Hardware Installation Guide

Step 4
Pull the hard drive out as shown in xref Figure 14-7.

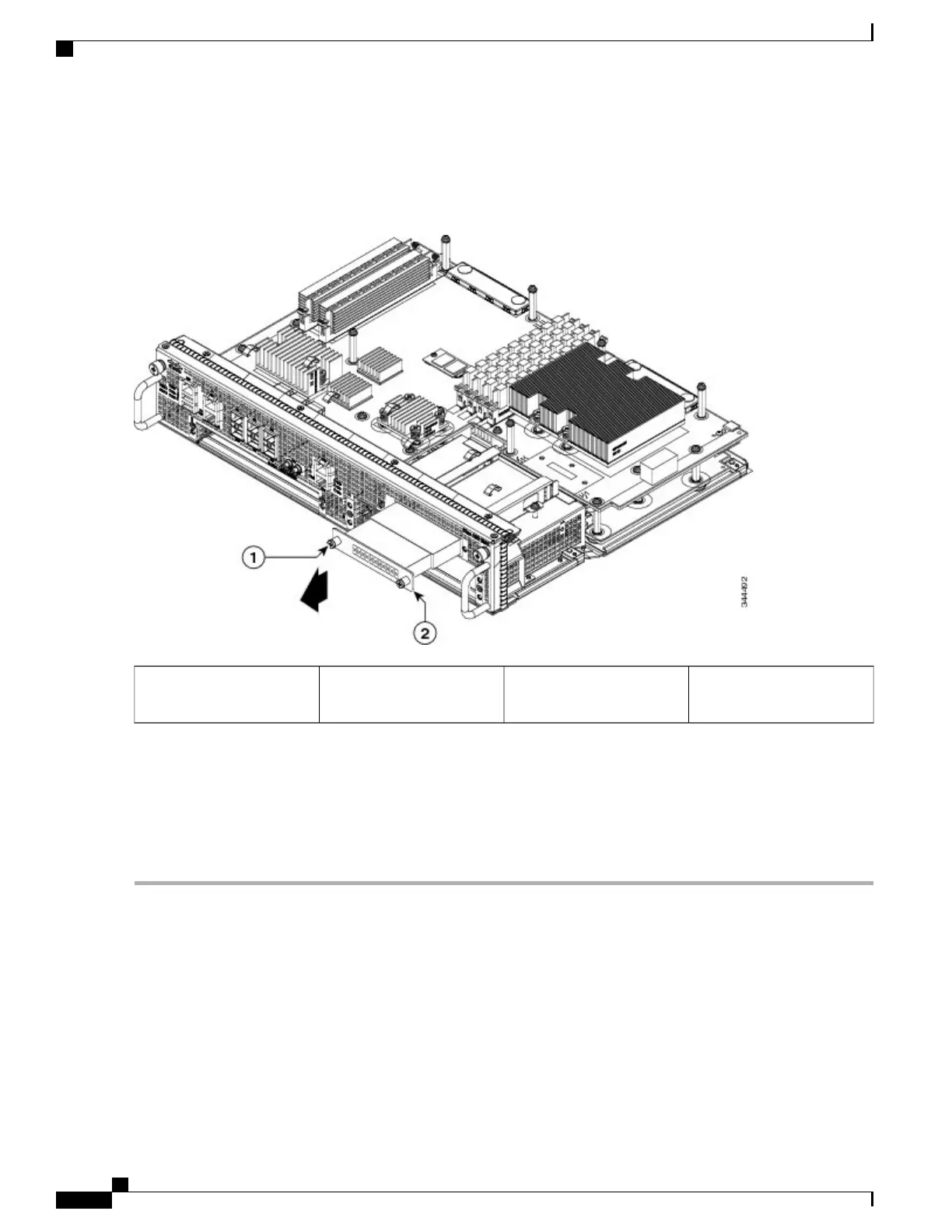

Figure 235: Cisco ASR1002-X Router Hard Drive
Hard drive2Hard drive fastener screw
location
1
Step 5
Place the hard drive in an antistatic bag if you are returning it.
Step 6
Wait until the following console message is displayed:
Example:
%IOSXE-0-PLATFORM: R0/0: udev: harddisk: has been removed
What to Do Next
You have successfully removed the hard drive from the Cisco ASR 1002-X Router.
Replacing the Hard Drive on the Cisco ASR 1002-X Router
To insert or replace the hard drive on the Cisco ASR 1002-X Router, follow this procedure:
Cisco ASR 1000 Series Router Hardware Installation Guide
490
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Replacing the Hard Drive on the Cisco ASR 1002-X Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
