Cisco ASR 1002-X Hardware Installation Guide

The following figure shows how the Cisco ASR 1000 Series RP DIMM module must not be handled.

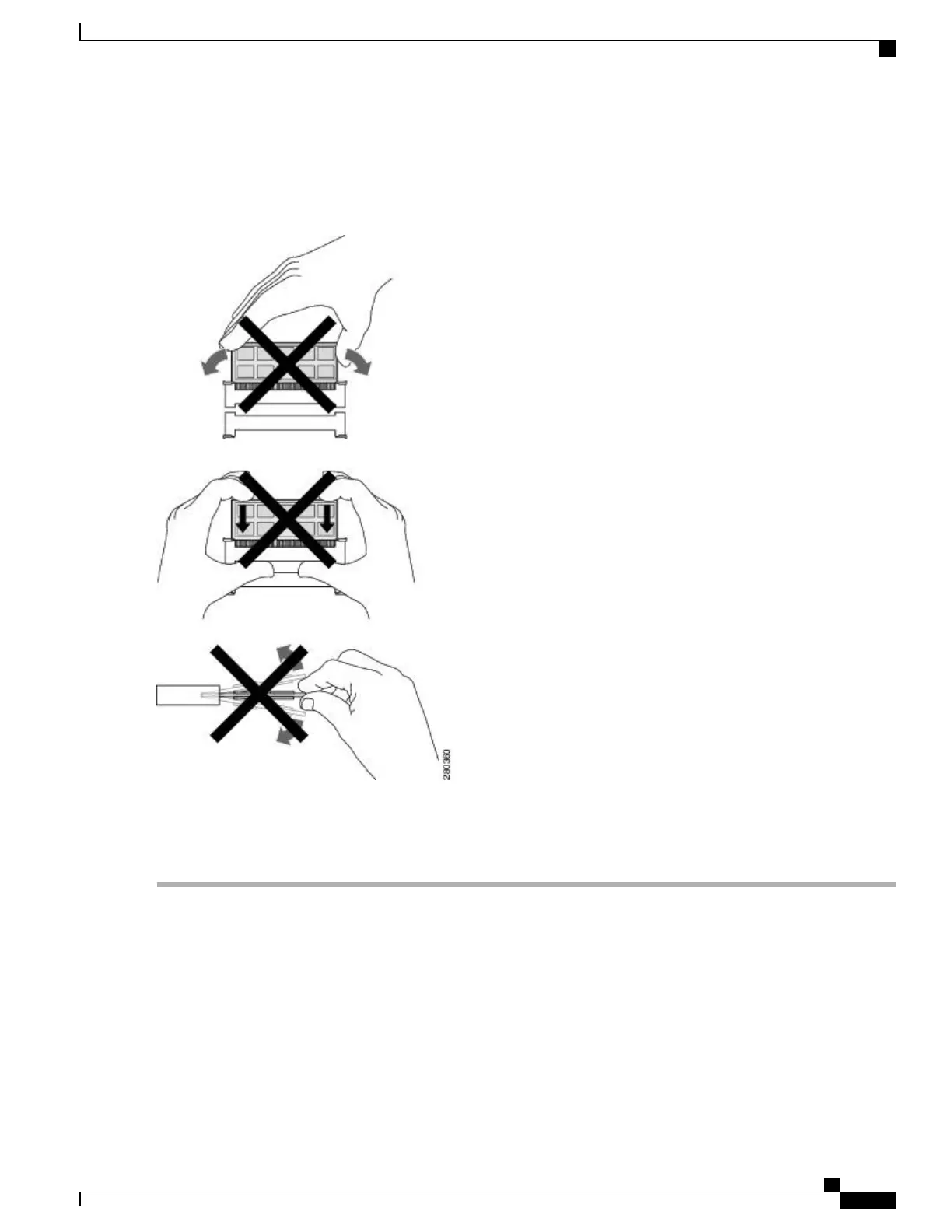

Figure 241: Handling Cisco ASR 1000 Series RP DIMM Module
Step 10
Slide the DIMM one side at a time. Use light insertion force and insert smoothly; but make certain the DIMM is inserted
straight .
Make sure you perform steps 3 thru 11 for both DIMMs on the RP 1 before you replace the Cisco ASR1000-RP1
in the system. Replace the Cisco ASR1000-RP1. All DIMMS must be replaced; not just one.
Note
What to Do Next
This completes the procedure for replacing a DIMM memory module on the Cisco ASR1000-RP1.
Removing and Replacing the Cisco ASR1000-RP2 DIMM Memory Modules
Perform the following steps before you begin:
•
Use an ESD-preventive wrist strap.
Cisco ASR 1000 Series Router Hardware Installation Guide
501
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR1000-RP2 DIMM Memory Modules

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
