Cisco ASR 1004 Router Description
The Cisco ASR 1004 Router system consists of the following system level components:
•
Two Cisco ASR 1000 Series SPA Interface Processor (Cisco ASR1000-SIP10 or Cisco ASR1000-SIP40)
•
One Cisco ASR 1000 Series Embedded Services Processor (Cisco ASR 1000-ESP10, Cisco ASR
1000-ESP20, or Cisco ASR1000-ESP40)
•
One Cisco ASR 1000 Series Route Processor (Cisco ASR1000-RP1 or Cisco ASR1000-RP2)
•
Dual (redundant) AC and DC power supplies
This section contains the following topics:
Front View
The following image shows the Cisco ASR 1004 Router with modules and filler plates installed.

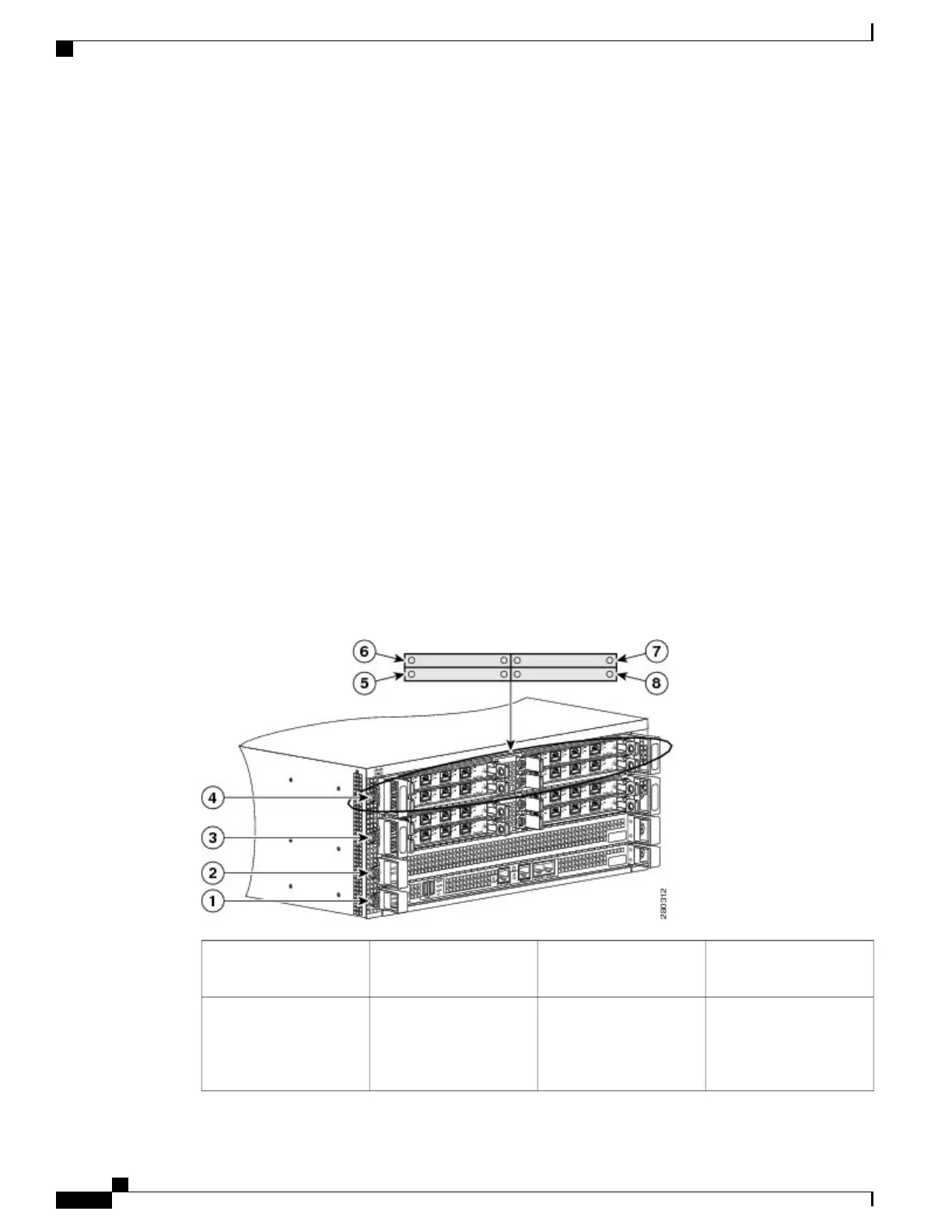

Figure 58: Cisco ASR 1004 Router — Front and Side View
SPA subslot 25Slot R0 with ASR 1000
Series Route Processor
1
SPA subslot 06Slot F0 with Cisco
ASR1000-ESP10, Cisco
ASR1000-ESP20, or
Cisco ASR1000-ESP40
2
Cisco ASR 1000 Series Router Hardware Installation Guide
182
Cisco ASR 1004 Router Overview and Installation
Cisco ASR 1004 Router Description

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
