Cisco ASR 1002-X Hardware Installation Guide

•
Three Cisco ASR 1000 Series SPA Interface Processors (SIPs)
•
Twelve SPA slots
•
Two embedded services processors (Cisco ASR1000-ESP10, Cisco ASR1000-ESP20, Cisco
ASR1000-ESP40, or Cisco ASR1000-ESP100)
Cisco ASR1000-ESP40 and Cisco ASR1000-ESP100 are supported on Cisco ASR 1006 Router only if
Cisco ASR1000-RP2 is installed on the router.
Note
•
Two Cisco ASR 1000 Series Route Processors (Cisco ASR1000-RP1 or Cisco ASR1000-RP2
)
•
Dual (redundant) AC and DC power supplies
This section contains the following topics:
Front View

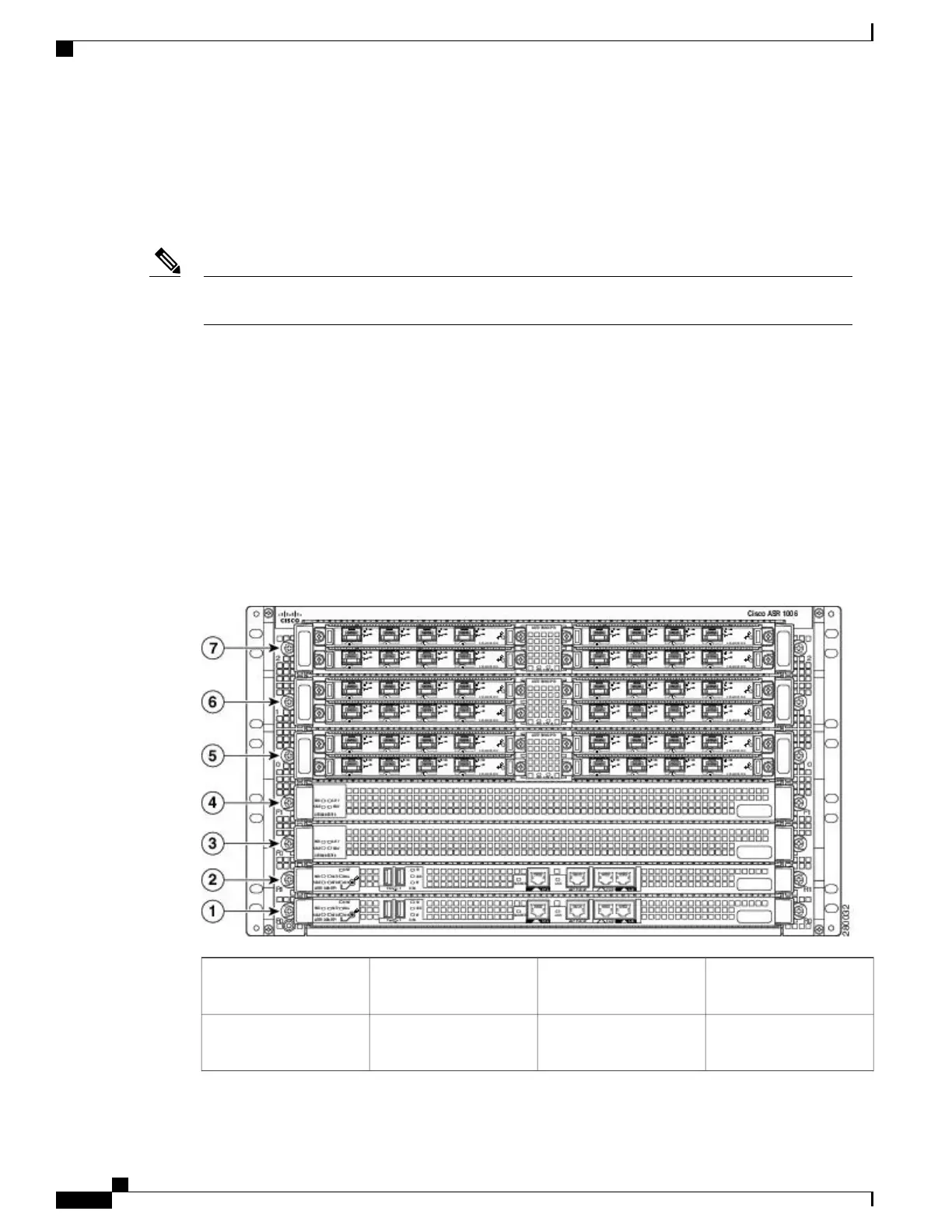

The following image shows the Cisco ASR 1006 Router with modules and filler plates installed.
Figure 34: Cisco ASR 1006 Router — Front View
ASR 1000 Series SIP slot
0
5Slot R0 with ASR 1000
Series RP
1
ASR 1000 Series SIP slot
1
6Slot R1 with ASR 1000
Series RP
2
Cisco ASR 1000 Series Router Hardware Installation Guide
140
Cisco ASR 1006 Router Overview and Installation
Front View

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
