Cisco ASR 1002-X Hardware Installation Guide

ASR 1000 Series SIP slot
2
7Slot F0 with ASR 1000
Series ESP
3
Slot F1 with ASR 1000
Series ESP
4
Rear View

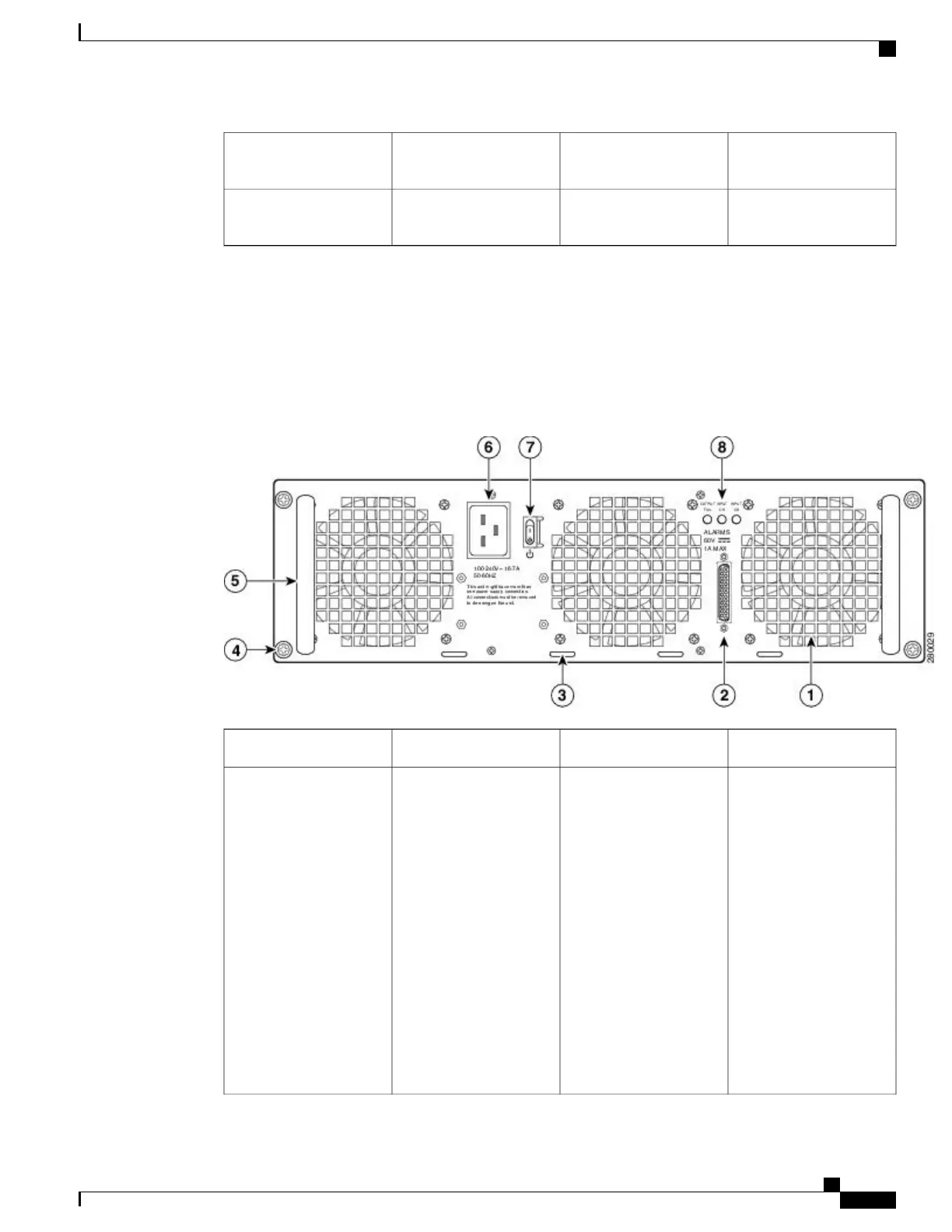

The following image shows the rear of the Cisco ASR 1006 Router with the ASR1006-PWR-AC power supply
installed.
Figure 35: Cisco ASR 1006 Router Rear View with the AC Power Supply (ASR1006-PWR-AC)
AC power supply handle5AC power supply fan1
AC power inlet6AC power supply DB-25
alarm connector—A
female DB-25 sub
connector which enables
you to attach an external
alarm monitoring facility
to the router, thus
supporting a telco-style of
handling alarm conditions
in the router.
For a description of the
DB-25 alarm connector,
see the “How Cisco
ASR1000-RP Alarm
Monitoring Works”
section on page 2-22 .
2
Cisco ASR 1000 Series Router Hardware Installation Guide
141
Cisco ASR 1006 Router Overview and Installation
Rear View

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
