Figure 4-3 shows the slot numbering for the shared port adapters on the Cisco ASR 1000 Series SPA Interface
for the Cisco ASR 1006 Router and Cisco ASR 1004 Router.

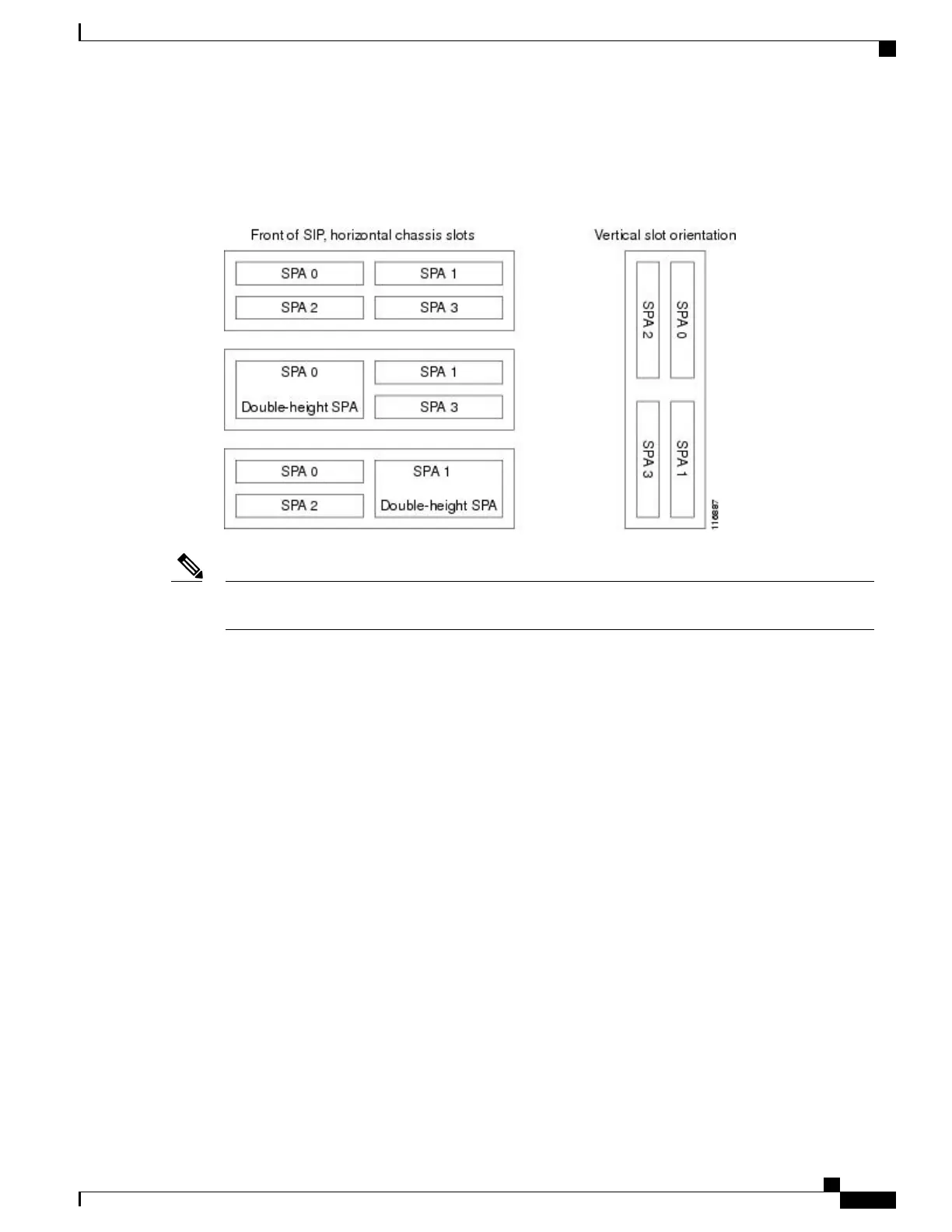

Figure 29: Cisco ASR 1004 Router and Cisco ASR 1006 Router SPA Interface Subslot Numbering
The slot numbering for the SPAs on the Cisco ASR 1004 Router is the same as the numbering on the
Cisco ASR 1006 Router.
Note
Cisco ASR 1002 Router
In the Cisco ASR 1002 Router, the Cisco ASR1002-SIP10 supports:
•
Three removable half-height SPAs on Bay 1, 2, and 3
•
The fourth SPA is a built-in 4xGE SPA on Bay 0 located on the Cisco ASR 1000 Series RP1
Cisco ASR 1000 Series Router Hardware Installation Guide
105
Cisco ASR 1000 Series Router SPA Interface Processors (SIPs)
Cisco ASR 1002 Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
