Cisco ASR 1002-X Hardware Installation Guide

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you
work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with
standard practices for preventing accidents. Use the statement number provided at the end of each warning
to locate its translation in the translated safety warnings that accompanied this device. Statement 1071
Warning
Before you install, operate, or service the system, read the Regulatory Compliance and Safety Information
for Cisco ASR 1000 Series Aggregation Services Routers publication. This document provides important
safety information you should know before working with the system. Statement 200
Warning
You have already unpacked your chassis and read all the site requirements for your new equipment.
Proceed with the installation.
Note
Cisco ASR 1004 Router Slot Numbering
The Cisco ASR 1004 Router contains two Cisco ASR 1000 Series SPA Interface Processors (SIPs) and
supports four subslots for the installation of SPAs.
The following image shows the Cisco ASR 1004 Router with modules and filler plates installed.

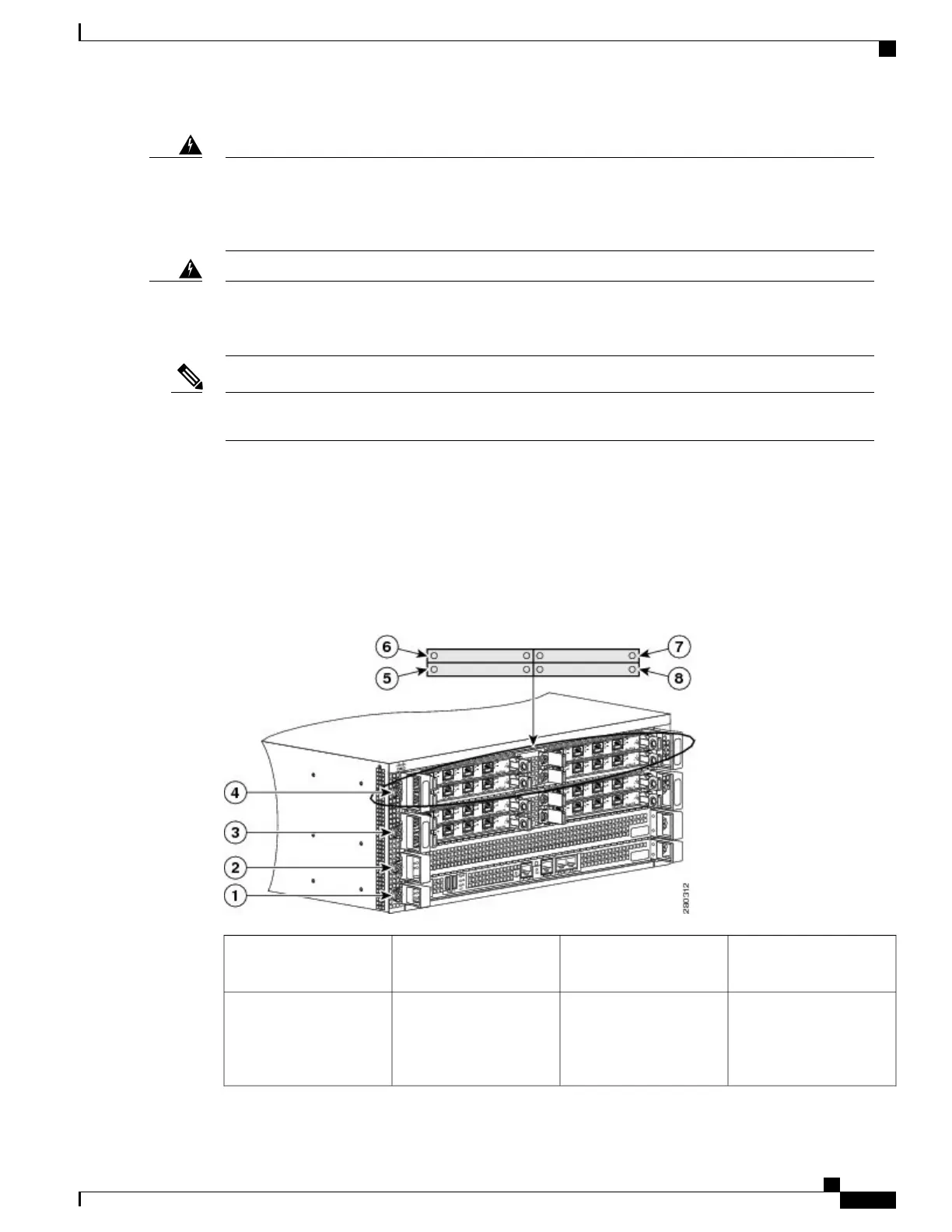

Figure 61: Cisco ASR 1004 Router — Front and Side View
SPA subslot 25Slot R0 with ASR 1000
Series RP1
1
SPA subslot 06Slot F0 with Cisco
ASR1000-ESP10, Cisco
ASR1000-ESP20, or
Cisco ASR1000-ESP40
2
Cisco ASR 1000 Series Router Hardware Installation Guide
185
Cisco ASR 1004 Router Overview and Installation
Rear View

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
