The following image shows the rear of the Cisco ASR 1004 Router with two –48 VDC power supplies installed.

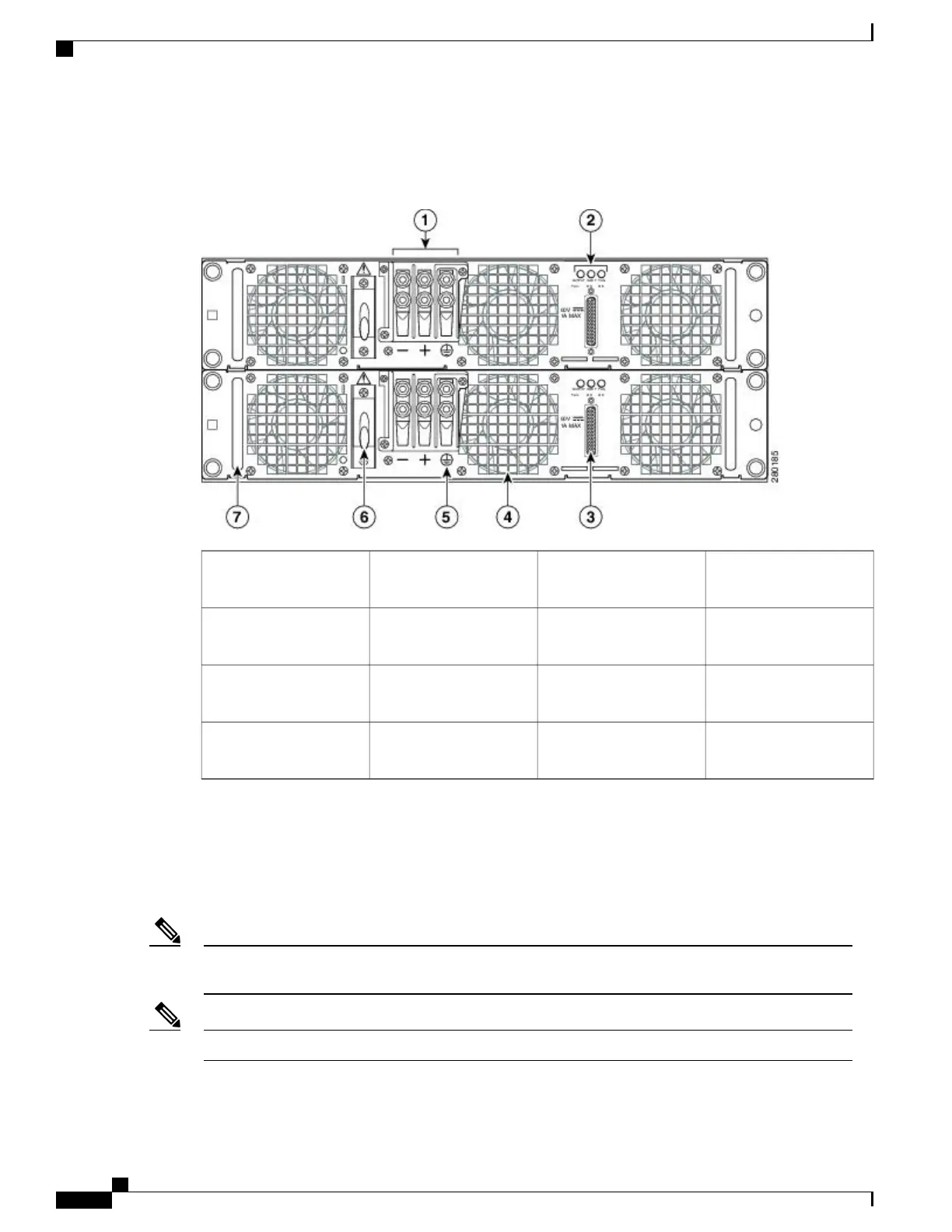

Figure 60: Cisco ASR 1004 Router Rear View With – 48 VDC Power Supplies
Grounding symbol5
–48 VDC power supply
terminal block
1
–48 VDC power supply
On/Off switch
6
–48 VDC power supply
LEDs
2
–48 VDC power supply
handle
7
–48 VDC power supply
DB-25 alarm connector
3
——–48 VDC power supply
fan
4
Internal fans draw cooling air into the chassis and across internal components to maintain an acceptable
operating temperature. (See Figure 59: Cisco ASR 1004 Router Rear View with AC Power Supplies, on page
183.) The fans are located at the rear of the chassis. A two-hole grounding lug is located on the side of the
chassis. Two power supplies, either two AC power supplies or two –48 VDC power supplies, are accessed
from the rear of the router.
You have already unpacked your chassis and read all the site requirements for your new equipment.
Proceed with the installation.
Note
Do not combine AC and –48 VDC power supplies in the same chassis.
Note
Cisco ASR 1000 Series Router Hardware Installation Guide
184
Cisco ASR 1004 Router Overview and Installation
Rear View

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
