Cisco ASR 1002-X Hardware Installation Guide

The shared port adapter on the Cisco ASR1002-SIP10-F supports online insertion and removal. However,
the Cisco ASR1002-SIP10-F in the Cisco ASR 1002-F Router is built into the chassis and is not a
field-replaceable unit.
Note

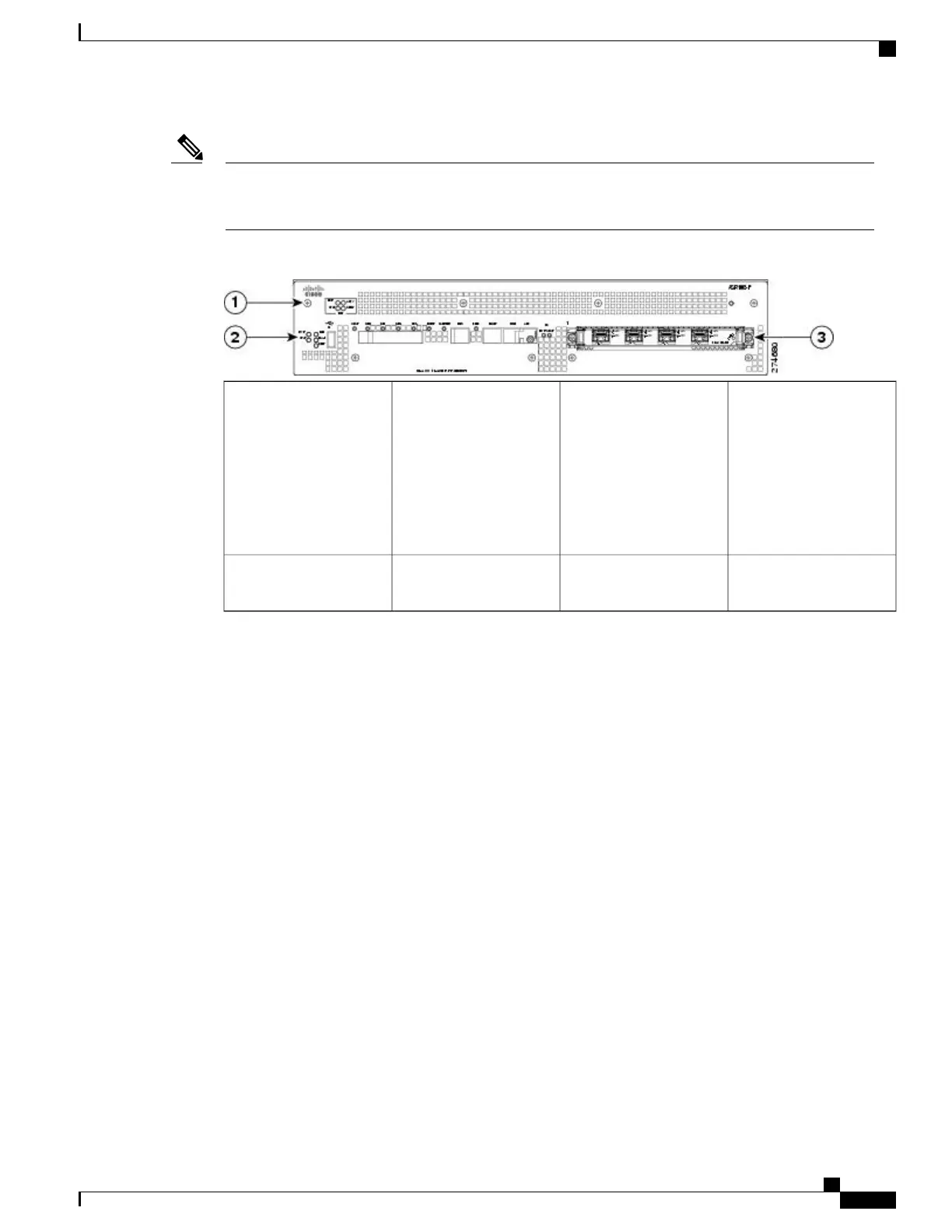

Figure 4-5 shows the slot numbering for the Cisco ASR 1002-F Router.
ASR1002-SIP-10-F, slot
0:
SPAs:
slot 0, subslot 0 -
4xGE-BUILT-IN
slot 0, subslot 1 -
SPA-2XOC3-POS
3Cisco integrated
ASR1002-ESP-F, slot F0
1
Cisco integrated RP, slot
R0
2
Cisco ASR 1013 Router
In the Cisco ASR 1013 Router, the Cisco ASR1000-SIP40 supports:
•
Four half-height (¼ Rate or full rate or combination) SPAs with up to 24 ports per SPA
•
Two full-height (¼ Rate or full rate or combination) SPAs with up to 48 ports per SPA
•
Two half-height and 1 full-height combination that does not exceed 96 ports
The Cisco ASR 1013 Router uses the same SPA subslot numbering as the Cisco ASR 1006 and Cisco ASR
1004 routers.
Cisco ASR 1000 Series Router Hardware Installation Guide
107
Cisco ASR 1000 Series Router SPA Interface Processors (SIPs)
Cisco ASR 1013 Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
