Cisco ASR 1002-X Hardware Installation Guide

DETAILED STEPS
Step 1
Connect one end of the RJ-45 cables to the serial RJ-45 port (CON) on the Cisco embedded ASR1000-RP1 (see the
folliwng image).

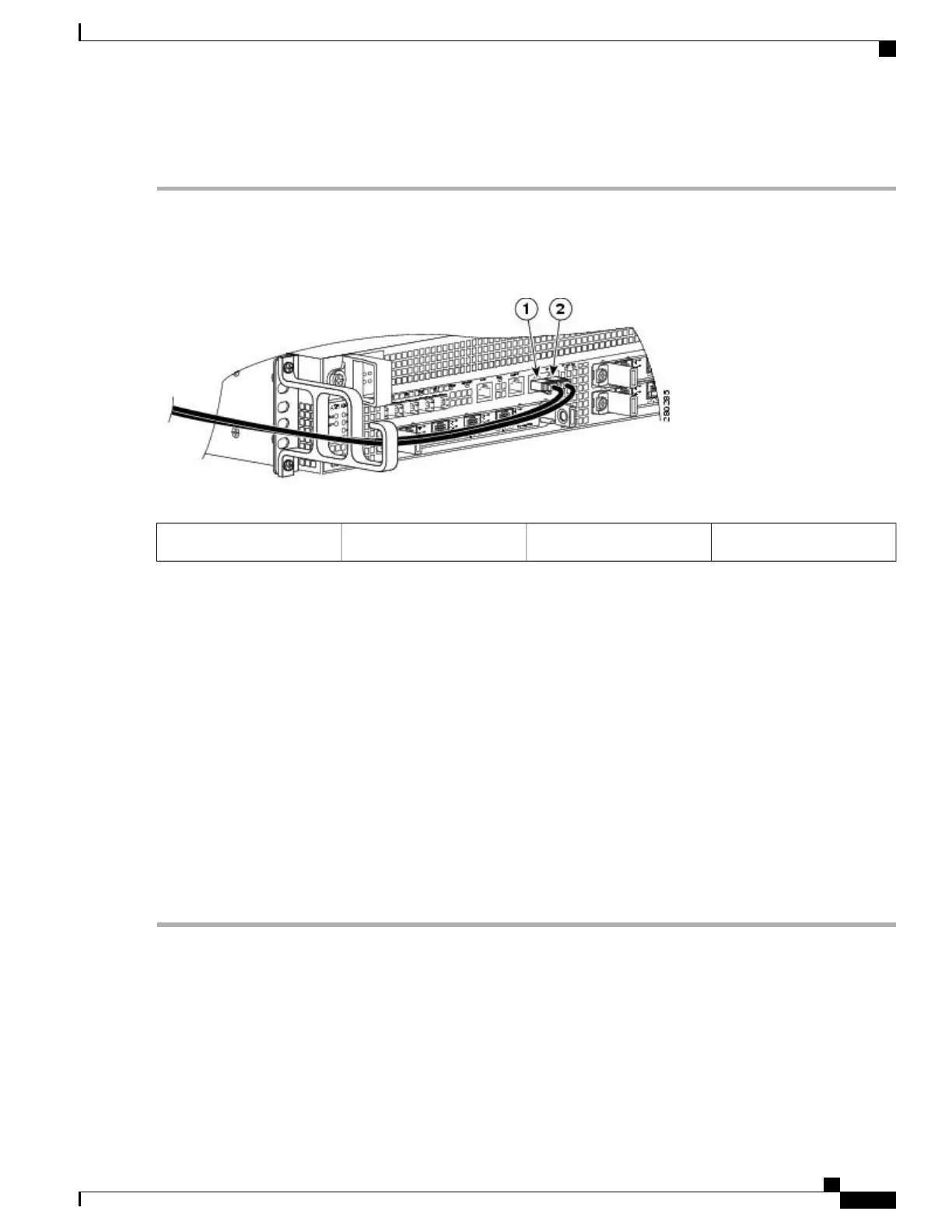

Figure 114: Cisco ASR 1002 Router Console Port Connection on Cisco Embedded ASR1000-RP1
AUX port connection2CON port connection1
Step 2
Run the cable up and through the cable-management bracket and connect the other end of the RJ-45 cable to the RJ-45
adapter (see Figure 114: Cisco ASR 1002 Router Console Port Connection on Cisco Embedded ASR1000-RP1, on page
273).
Step 3
Connect the adapter to your video terminal to complete the cable connection.
Step 4
Power on your video terminal.
Step 5
Configure your video terminal to match the following default console port settings:
•
9600 baud
•
8 data bits
•
No parity generation or checking
•
1 stop bit
•
No flow control
Step 6
Go to the c_Connecting_Cables_1074149.xml to continue the installation.
Connecting Cables
Keep the following guidelines in mind when connecting external cables to the Cisco ASR 1002 Router:
•
To reduce the chance of interference, avoid crossing high-power lines with any interface cables
Cisco ASR 1000 Series Router Hardware Installation Guide
273
Cisco ASR 1002 Router Overview and Installation
Connecting Cables

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
