Cisco ASR 1002-X Hardware Installation Guide

Make certain that the cable-management ‘U’ feature device has the open end pointing upwards when you attach
it to the chassis
Note

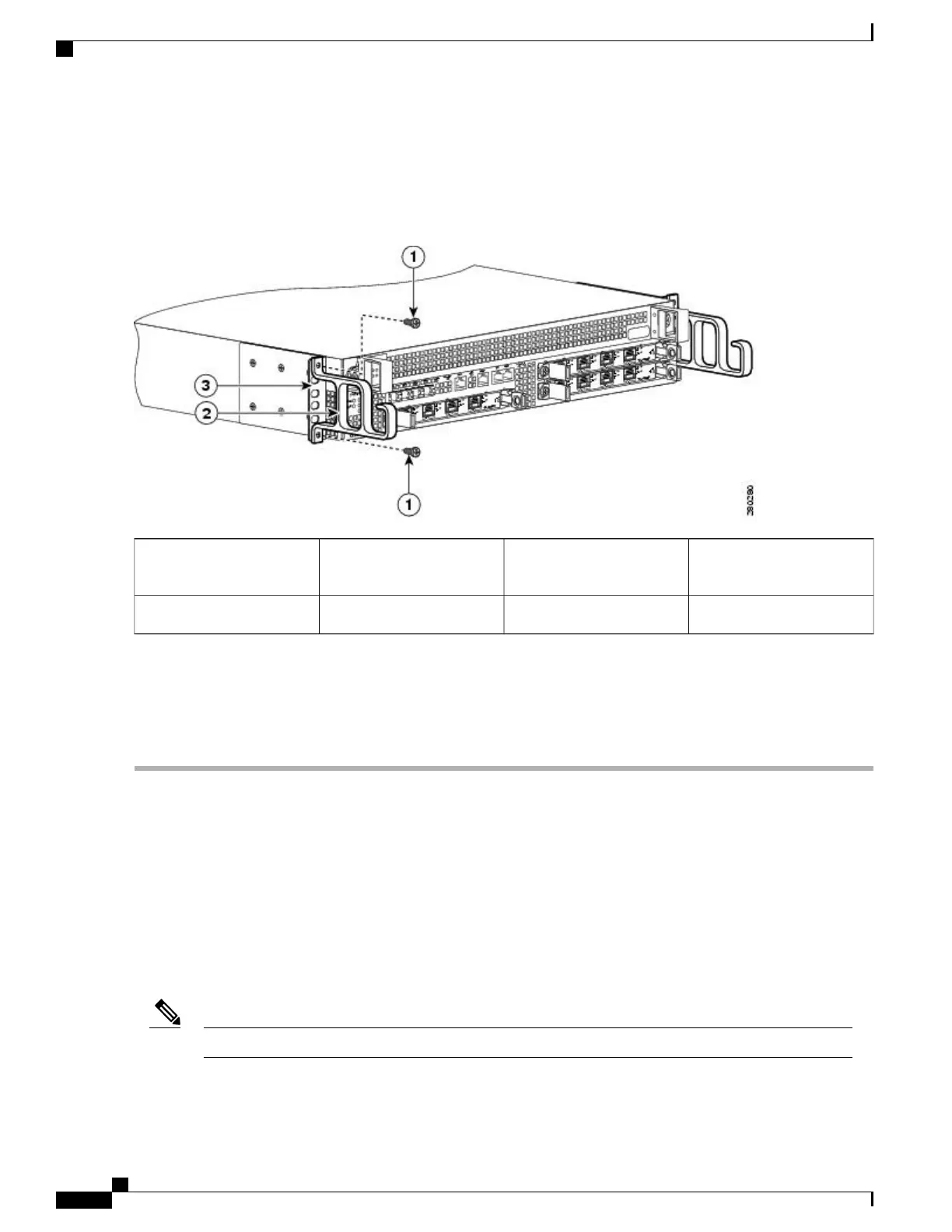

Figure 88: Attaching the Cable-Management Brackets to the Cisco ASR 1002 Router
Chassis front rack-mount
bracket
3Cable-management bracket
top and bottom screw
1
——
Cable-management bracket2
Step 6
Screw the cable-management bracket to each side of the rack-mount brackets already attached to the chassis. Use two
screws for each cable-management bracket. Use the package of four screws.
Step 7
Check that all screws are securely tightened.
Step 8
Go to Attaching a Chassis Ground Connection, on page 249the to continue the installation.
Rack-Mounting the Cisco ASR 1002 Router
The Cisco ASR 1002 Router can be installed in an existing rack with equipment or in an empty rack with no
equipment: The chassis can be mounted in either rack types:
•
Two-post rack, either 19 inch or 23 inch. Inner clearance (the width between the inner sides of the two
posts or rails) must be at least 19 inches (48.26 cm). The height of the chassis is 3.47 inches (8.8 cm).
Airflow through the chassis is from front to back.
If you are using a two-post rack secure the rack to the floor surface to prevent tipping and avoid bodily.Note
Cisco ASR 1000 Series Router Hardware Installation Guide
238
Cisco ASR 1002 Router Overview and Installation
Rack-Mounting the Cisco ASR 1002 Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
