Cisco ASR 1002-X Hardware Installation Guide

Slot R0 with ASR 1000
Series RP2
7ASR 1000 Series SIP slot
4
2
ASR 1000 Series SIP slot
2
8ASR 1000 Series SIP slot
3
3
ASR 1000 Series SIP slot
1
9Slot R1 with ASR 1000
Series RP2
4
ASR 1000 Series SIP slot
0
10Slot F1 with ASR 1000
Series ESP-40
5
Note: Slots 10, 9, 8, 7,
and 6 reside in Zone 0
and slots 5, 4, 3, 2, and
1 reside in Zone 1.
For detailed information about specifying SIP subslot location for a SPA and specifying slot location for a
SIP, see Cisco Aggregation Services Router 1000 Series SIP and SPA Software Configuration Guide .
Cisco ASR 1001 Router
In the Cisco ASR 1001 Router, the Cisco ASR1000-SIP10 supports:
•
One flexible integrated daughter card I/O slot
•
One half-height SPA bay
Figure 32: Cisco ASR 1001 Router Slot Numbering , on page 109 shows slot numbering on the Cisco ASR
1001 Router.

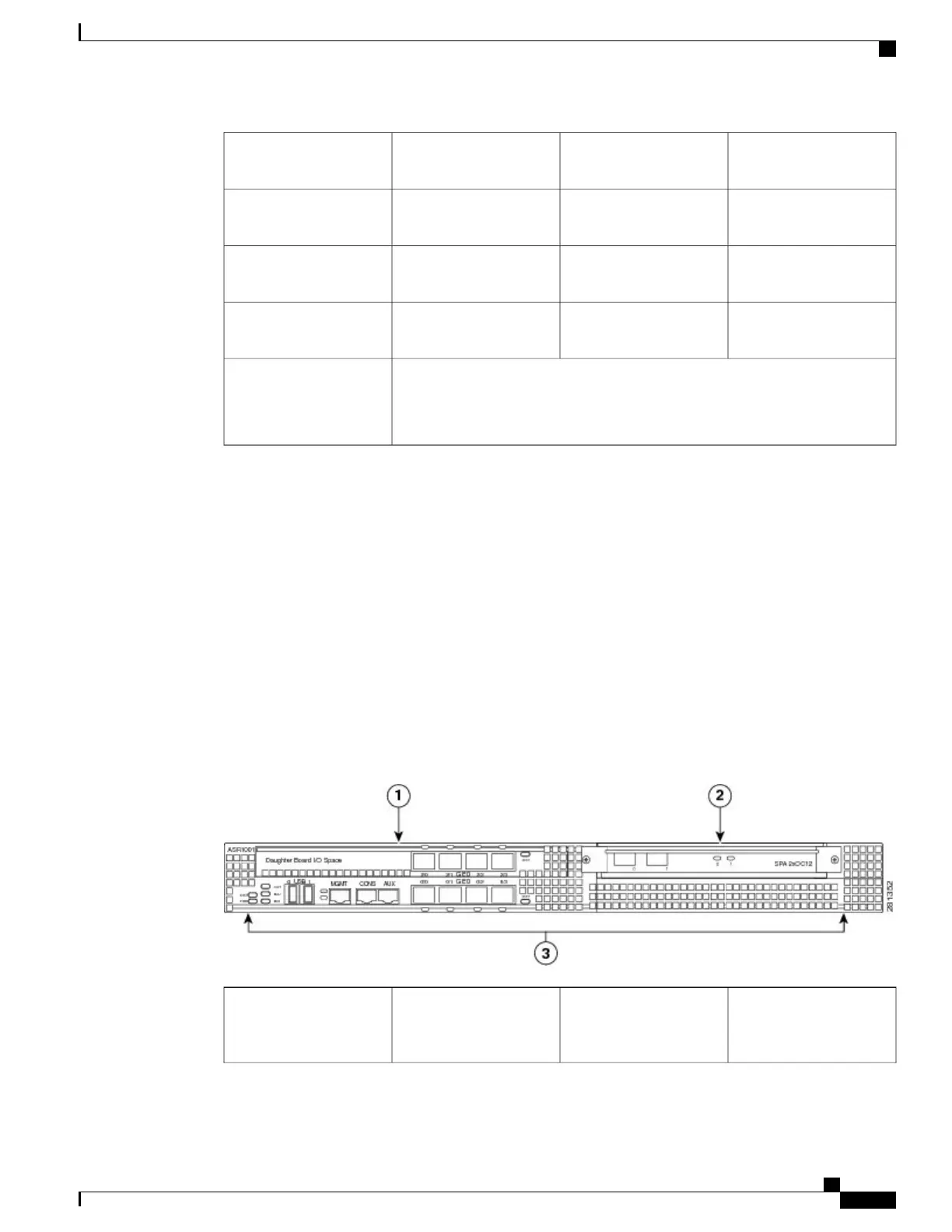

Figure 32: Cisco ASR 1001 Router Slot Numbering
Slot 0 connected to the
built-in 4x1GE SPA on
the mainboard
3Slot 2 connected to the
flexible integrated
daughter card
1
Cisco ASR 1000 Series Router Hardware Installation Guide
109
Cisco ASR 1000 Series Router SPA Interface Processors (SIPs)
Cisco ASR 1001 Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
