• SPA-5x1GE-V2—slot 0/1

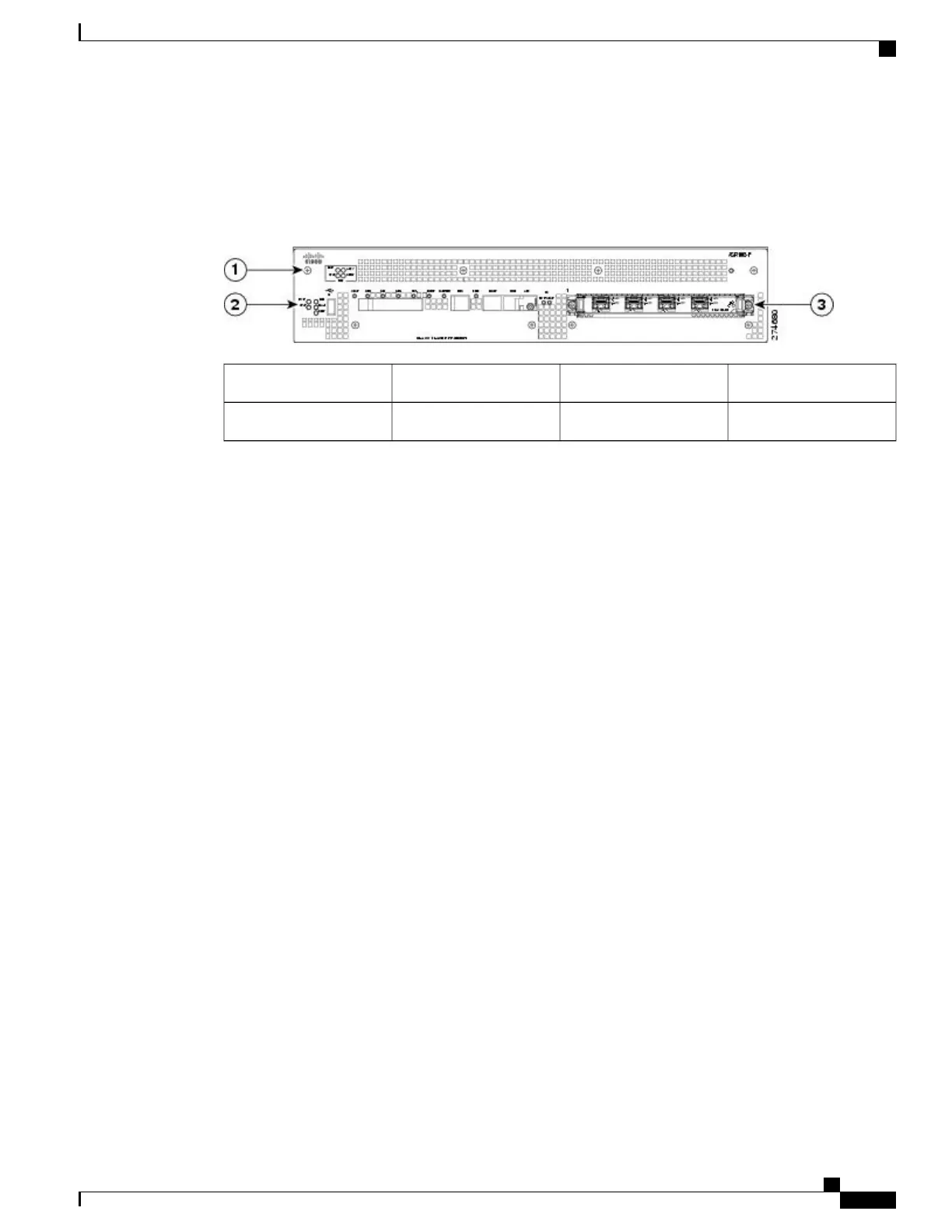

The following figure shows the slot numbering for the Cisco ASR 1002-F Router.
Figure 118: Cisco ASR 1002-F Router Slot Numbering
Slot 23Slot 01
——
Slot 12
Cisco ASR 1002-F Router Components
The Cisco ASR 1002-F Router system is derived from the architecture of the Cisco ASR 1002 Router. The
main components of the Cisco ASR 1002-F Router are:
•
Cisco integrated RP
•
Cisco integrated ASR 1002-ESP-F
•
Cisco ASR 1002-SIP10-F
•
AC or DC power supplies
Cisco Integrated RP and Cisco ASR 1002-ESP-F Description
The Cisco ASR 1002-F Router supports the following integrated components:
• Cisco integrated RP—The Cisco ASR 1000 Series integrated Route Processor (RP) for the Cisco ASR
1002-F Router is the central control processor and runs the network operating system. The Cisco integrated
RP supports management interfaces such as the Management Ethernet port and console and auxiliary
serial ports. It has LED status indicators, an RJ-45 plug for a BITS timing reference, and one USB port
that can be used with smart cards for secure key distribution or for image or configuration file updates.
• Cisco ASR 1002-ESP-F services processor (does not support online insertion and removal)—The Cisco
embedded services processor is based on the Cisco QuantumFlow Processor for next-generation
forwarding and queuing. It performs all baseline packet routing operations, including MAC classification,
Layer 2 and Layer 3 forwarding, quality of service (QoS) classification, policing and shaping, security
access control lists (ACLs), VPNs, load balancing, and NetFlow. The Cisco ASR 1002-ESP-F can only
be used in the Cisco ASR 1002-F Router and has forwarding performance of 2.5 Gbps and does not
support online insertion or removal.
Cisco ASR 1000 Series Router Hardware Installation Guide
279
Cisco ASR 1002-F Router Overview and Installation
Cisco ASR 1002-F Router Components
