Cisco ASR 1002-X Hardware Installation Guide

The following image shows the Cisco ASR 1002-F Router faceplate labels for the Cisco integrated RP and
Cisco ASR 1002-ESP-F.

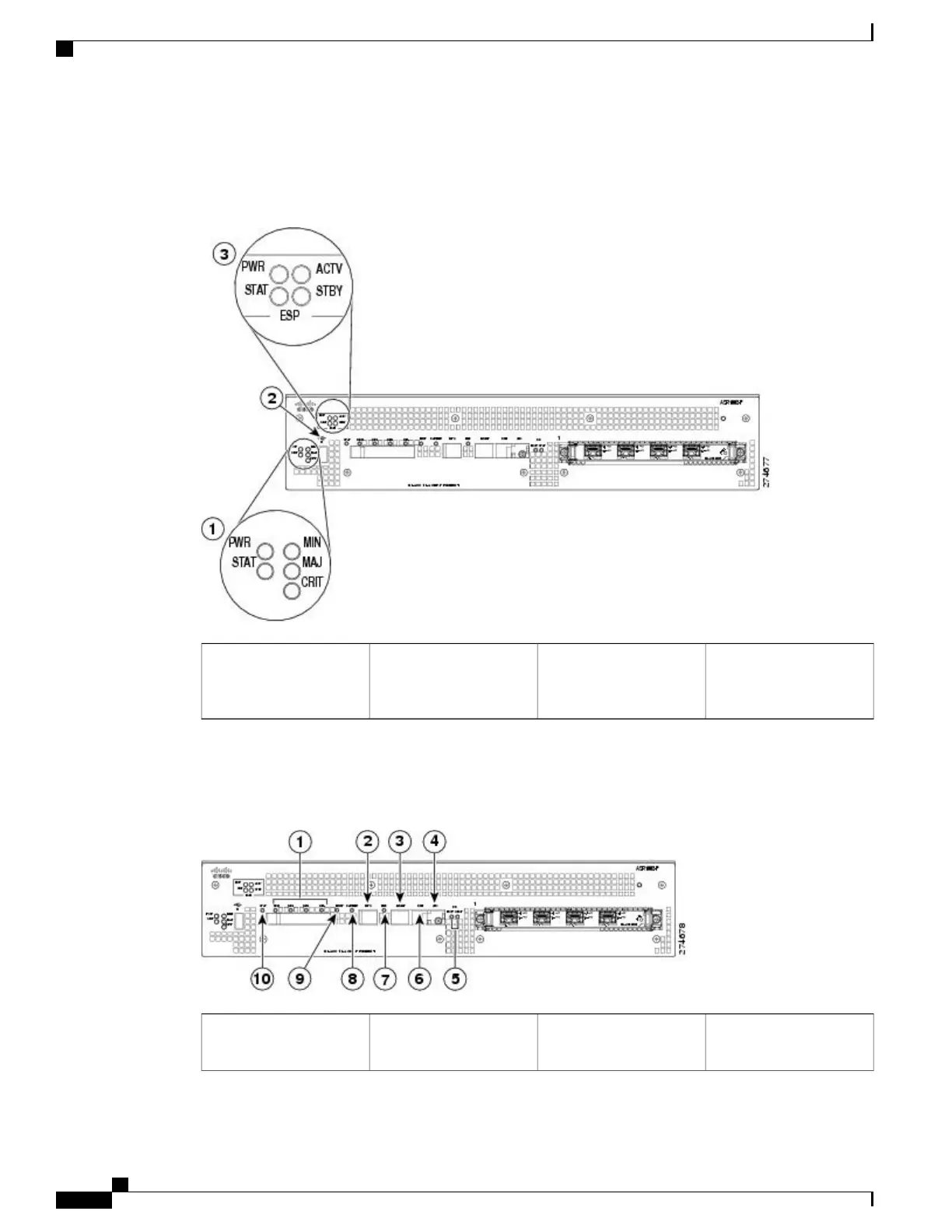

Figure 119: Cisco Integrated RP and Cisco ASR 1002-ESP-F LEDs on Cisco ASR 1002-F Router
Cisco ASR 1002-ESP-F
LEDs: PWR, STAT,
ACTV, STBY
2Cisco RP LEDs: PWR,
STAT, MIN, MAJ, CRIT
1
The following image shows the Cisco ASR 1002-F Router faceplate labels for the Cisco integrated RP.
Figure 120: Cisco Integrated RP Faceplate Labels
CON6Gigabit Ethernet ports 0,
1, 2, 3
1
Cisco ASR 1000 Series Router Hardware Installation Guide
280
Cisco ASR 1002-F Router Overview and Installation
Cisco Integrated RP and Cisco ASR 1002-ESP-F Description

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
