Cisco ASR 1002-X Hardware Installation Guide

LINK7BITS2
CARRIER8MGMT3
BOOT9AUX4
Cisco integrated RP
STAT LED
10Cisco integrated ASR
1002-SIP10-F LEDs:
PWR, STAT
5
The following image shows the labels for the Cisco ASR 1002-SIP10-F SPA interface processor (SIP). The
ASR 1002-F router has only one half-height removable SPA.
Figure 121: Cisco ASR 1002-SIP10-F SPA Interface Processor
Port 24Cisco ASR 1002-SIP10-F1
Port 15SPA STATUS LED2
Port 06Port 33
The Cisco ASR 1002-F Router SPA has three types of LEDs: two LEDs for each port on the SPA and one
STATUS LED, as shown in the following image.

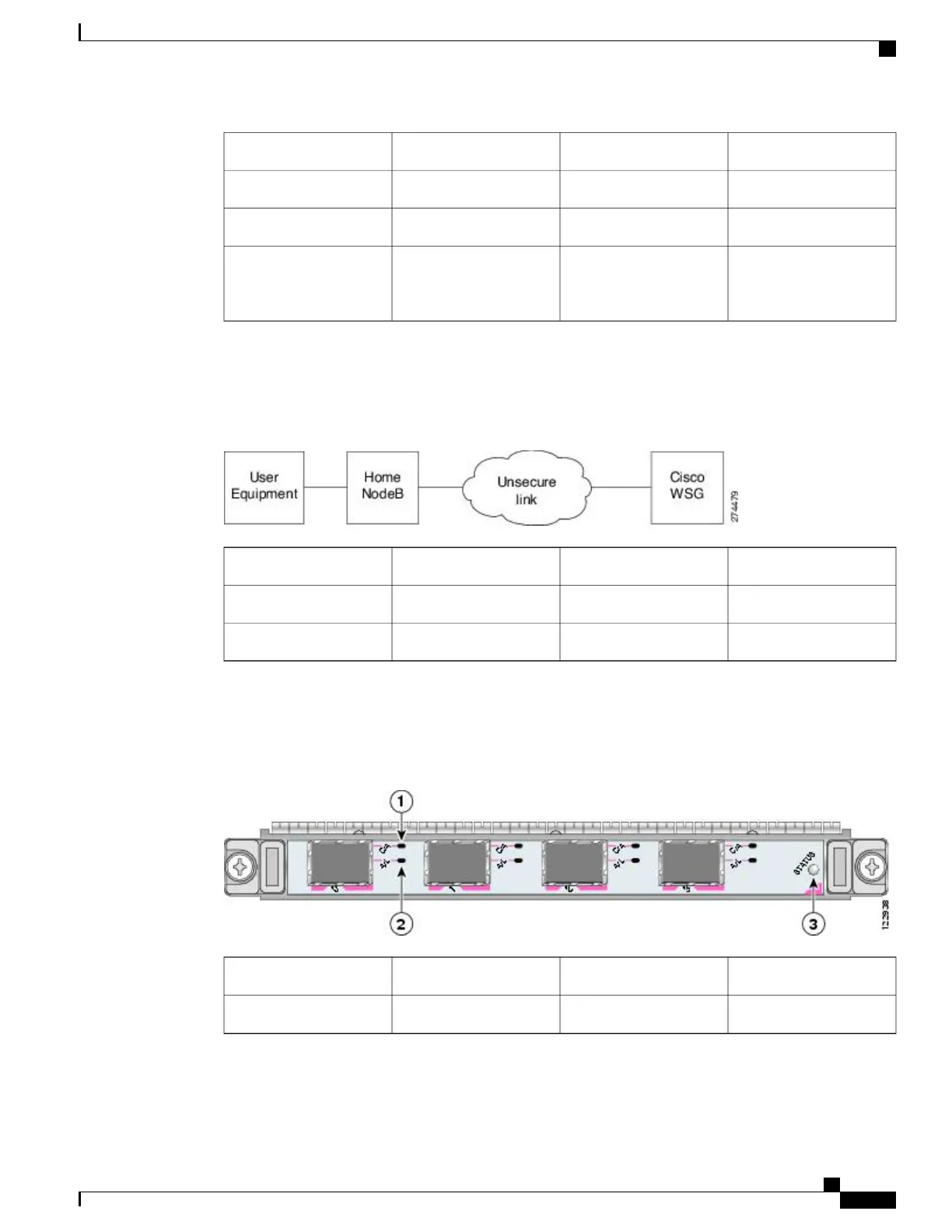

Figure 122: Cisco ASR 1002-F Router SPA Faceplate
SPA STATUS3C/A (Carrier/Alarm)1
——
A/L (Active/Loopback)2
The following table describes the Cisco ASR 1002-F Router SPA LEDs.
Cisco ASR 1000 Series Router Hardware Installation Guide
281
Cisco ASR 1002-F Router Overview and Installation
Cisco Integrated RP and Cisco ASR 1002-ESP-F Description

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
