Step 6
Once the power supply fasteners are loosened, grasp the handle with one hand and support the weight of power supply
with the other hand and pull the power supply out of the slot (see the following figure).

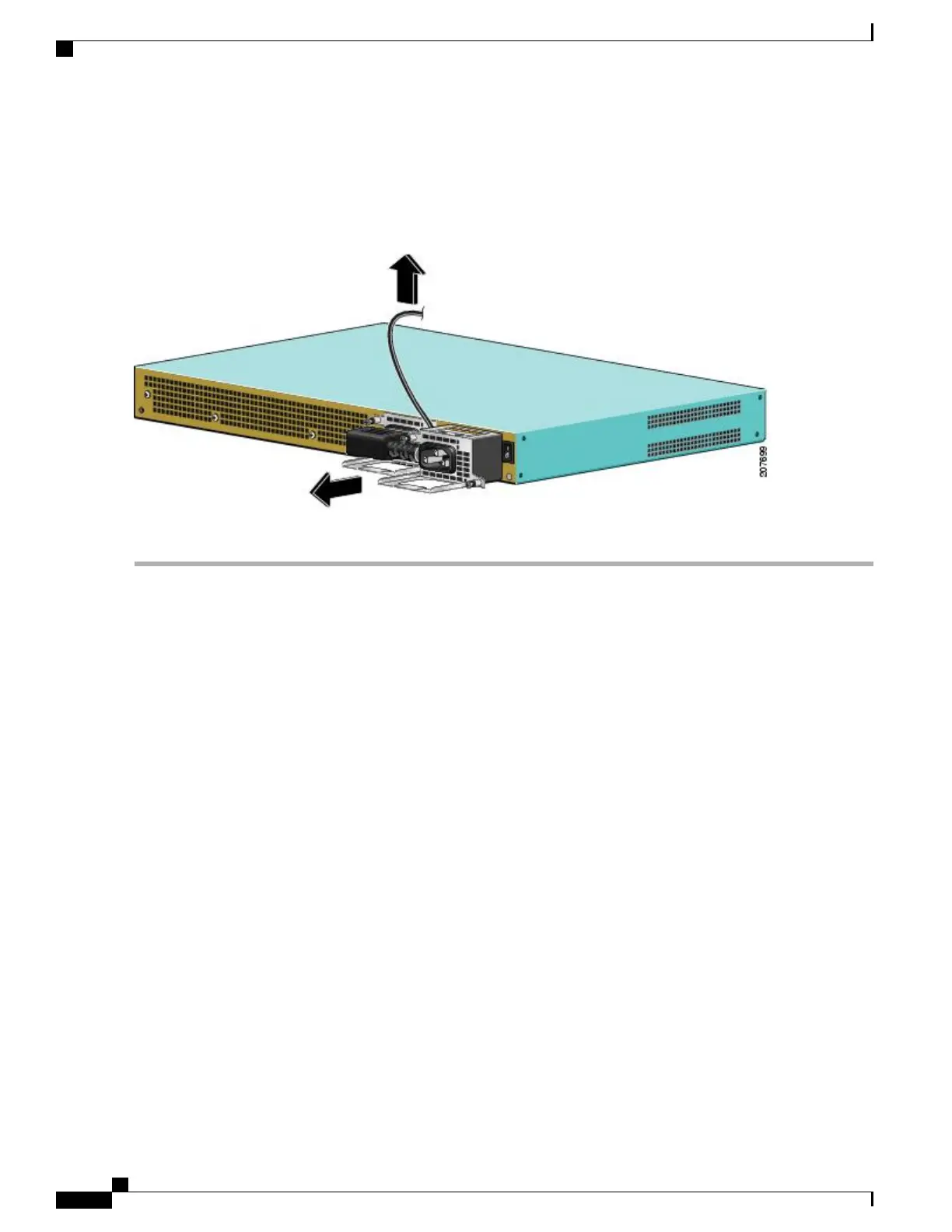

Figure 304: Removing the Cisco ASR 1001 Router AC Power Supply Cables
Step 7
Repeat the same steps to remove the AC power supply from Slot PS0.
What to Do Next
This completes the procedure for removing an AC power supply from the Cisco ASR 1001 Router.
Installing DC Power Supply into Cisco ASR 1001 Router
The Cisco ASR 1001 Router DC input connector is compatible with a pluggable Euro-style plug. The input
connector and plug must be UL recognized under UL 486 for field wiring. The connection polarity shall be
from left to right: negative (–), positive (+), and ground.
Cisco ASR 1000 Series Router Hardware Installation Guide
604
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Installing DC Power Supply into Cisco ASR 1001 Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
