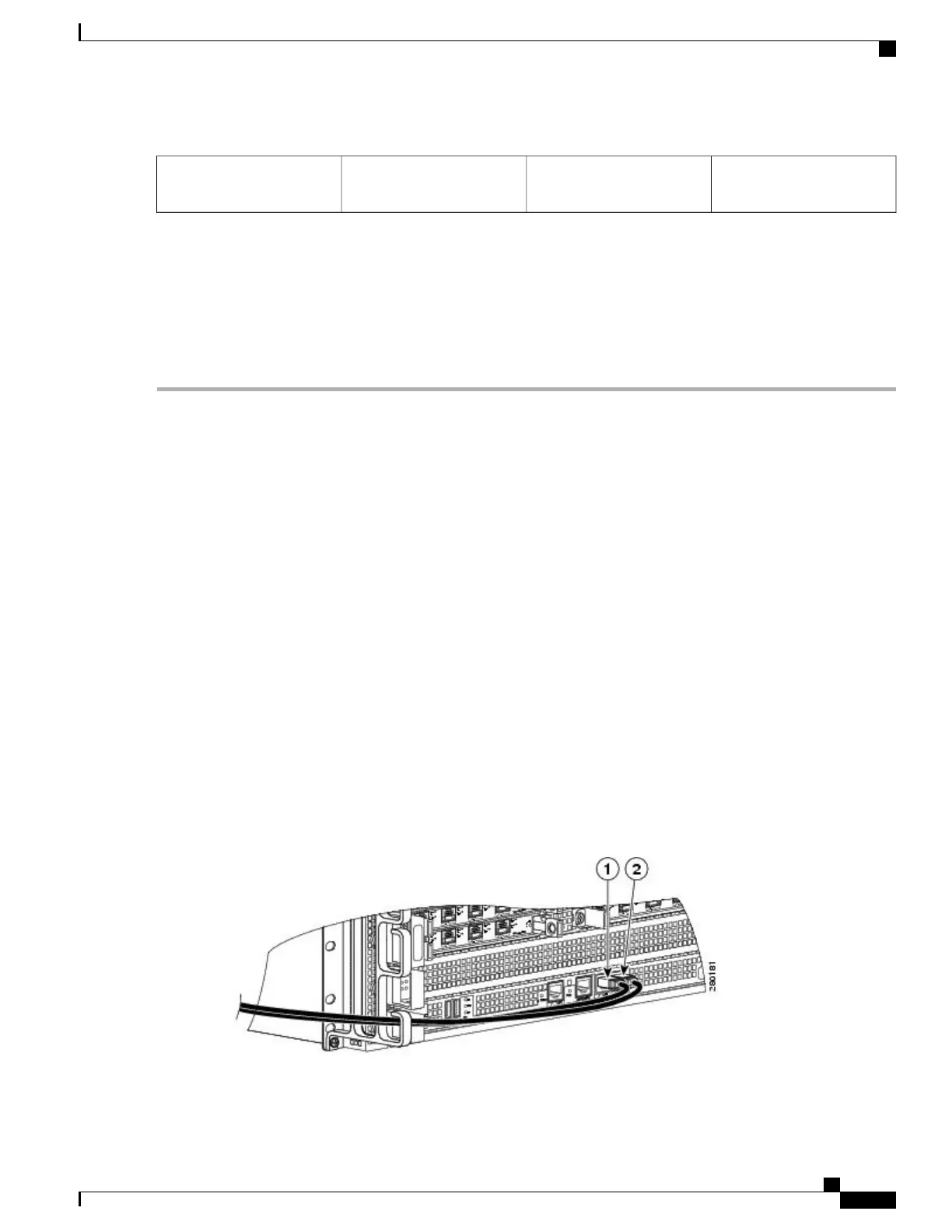

Chassis ground connector
holes
4Grounding stud2
Step 5
Locate the chassis ground connector on the side of your chassis.
Step 6
Insert the two screws through the holes in the grounding lug.
Step 7
Use the Number 2 Phillips screwdriver to carefully tighten the screws until the grounding lug is held firmly to the chassis.
Do not overtighten the screws.
Step 8
Connect the opposite end of the grounding wire to the appropriate grounding point at your site to ensure an adequate
chassis ground.
What to Do Next
This completes the procedure for attaching a chassis ground connection. Go to the following cabling sections
for information on attaching cables.
Connecting the Shared Port Adapter Cables
The instructions for connecting the cables for the shared port adapter installed in the Cisco ASR 1006 Router
are contained in the respective configuration documents for each port adapter. For example, if you are
connecting the optical fiber cables for the PA-POS-OC3 port adapter, see PA-POS-OC3 Port Adapter
Installation and Configuration at the following location:
http://www.cisco.com/en/US/partner/docs/interfaces_modules/port_adapters/install_upgrade/pos/pa-pos-oc3_install_config/paposoc3.html
Shared port adapter documents are also available on the Cisco Documentation DVD.
Connecting the Console and Auxiliary Port Cables
The Cisco ASR 1006 Router has a DCE-mode console port for connecting a console terminal and an auxiliary
port for additional connections to your chassis. The auxiliary port can also be used for diagnostics. The
following image shows the CON and AUX ports on the Cisco ASR 1000 Series route processor card.
Cisco ASR 1000 Series Router Hardware Installation Guide
163
Cisco ASR 1006 Router Overview and Installation
Connecting the Shared Port Adapter Cables
