Cisco ASR 1002-X Hardware Installation Guide

This section describes how to remove and then replace the Cisco ASR 1002-X Router DIMMs (see xref Figure
14-16).

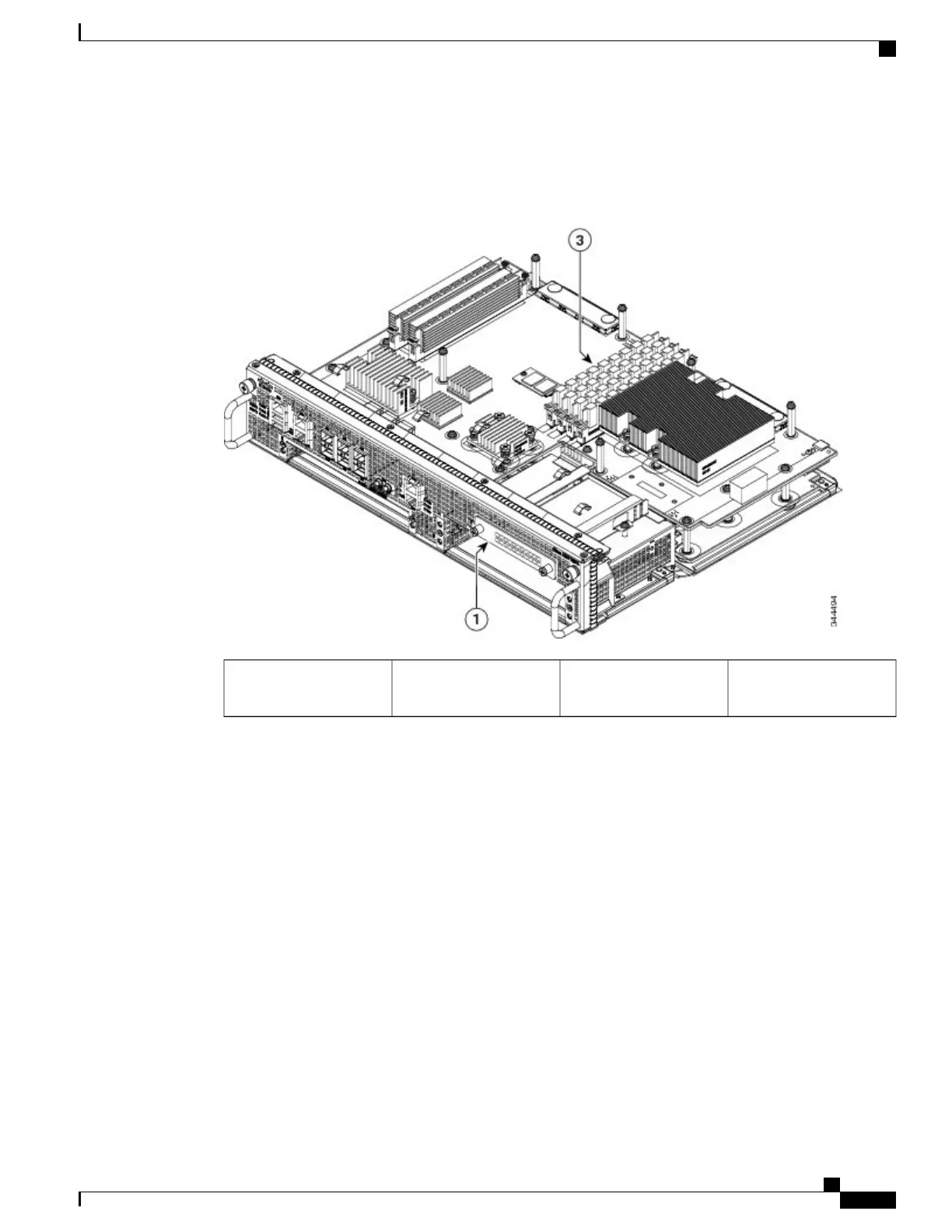

Figure 251: Cisco ASR1002-X Router Module Internal Component Location
Cisco ASR1002-X Router
DIMM location
3Internal hard drive
location
1
Removing the Cisco ASR1002-X Router DIMMs
Follow these steps to remove the Cisco ASR1002-X Router DIMMs:
Cisco ASR 1000 Series Router Hardware Installation Guide
515
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR 1002-X Router DIMM Memory Modules

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
