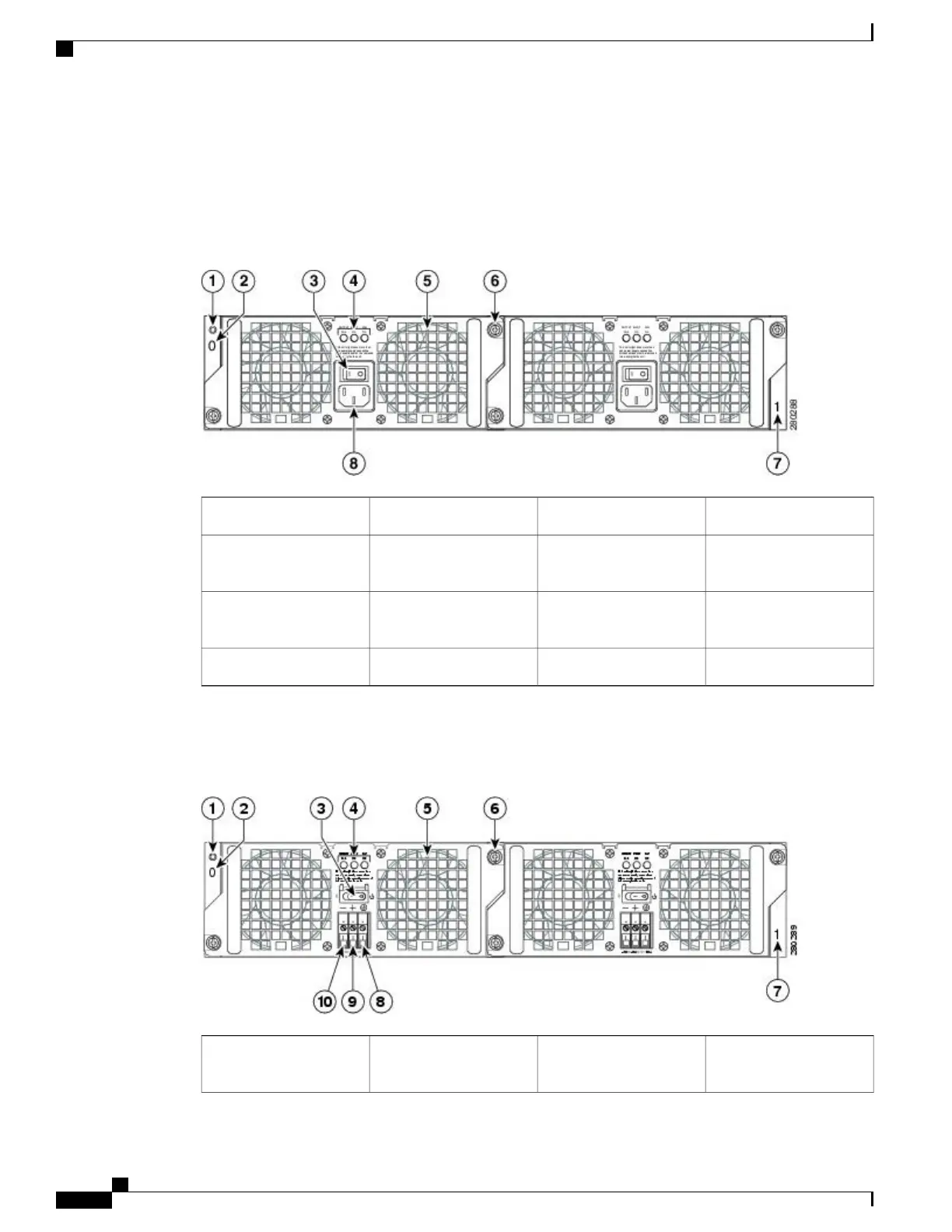

Rear View of the Cisco ASR 1002-X Router
The following image shows the Cisco ASR 1002-X Router AC power supply.
Figure 145: Cisco ASR 1002-X Router AC Power Supply
AC power supply fan5Chassis ESD socket1
AC power supply captive
installation screw
6AC power supply slot
number 0
2
AC power supply slot
number 1
7AC power supply On
(|)/Off (O) switch
3
AC power inlet8AC power supply LEDs4
The following imave shows the Cisco ASR 1002-X Router DC power supply.
Figure 146: Cisco ASR 1002-X Router DC Power Supply
DC power supply captive
installation screw
6Chassis ESD socket1
Cisco ASR 1000 Series Router Hardware Installation Guide
320
Cisco ASR 1002-X Router Overview and Installation
Rear View of the Cisco ASR 1002-X Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
