Cisco ASR 1002-X Hardware Installation Guide

SPA subslot 17ASR 1000 Series SIP slot
0
3
SPA subslot 38ASR 1000 Series SIP slot
1
4
Rear View

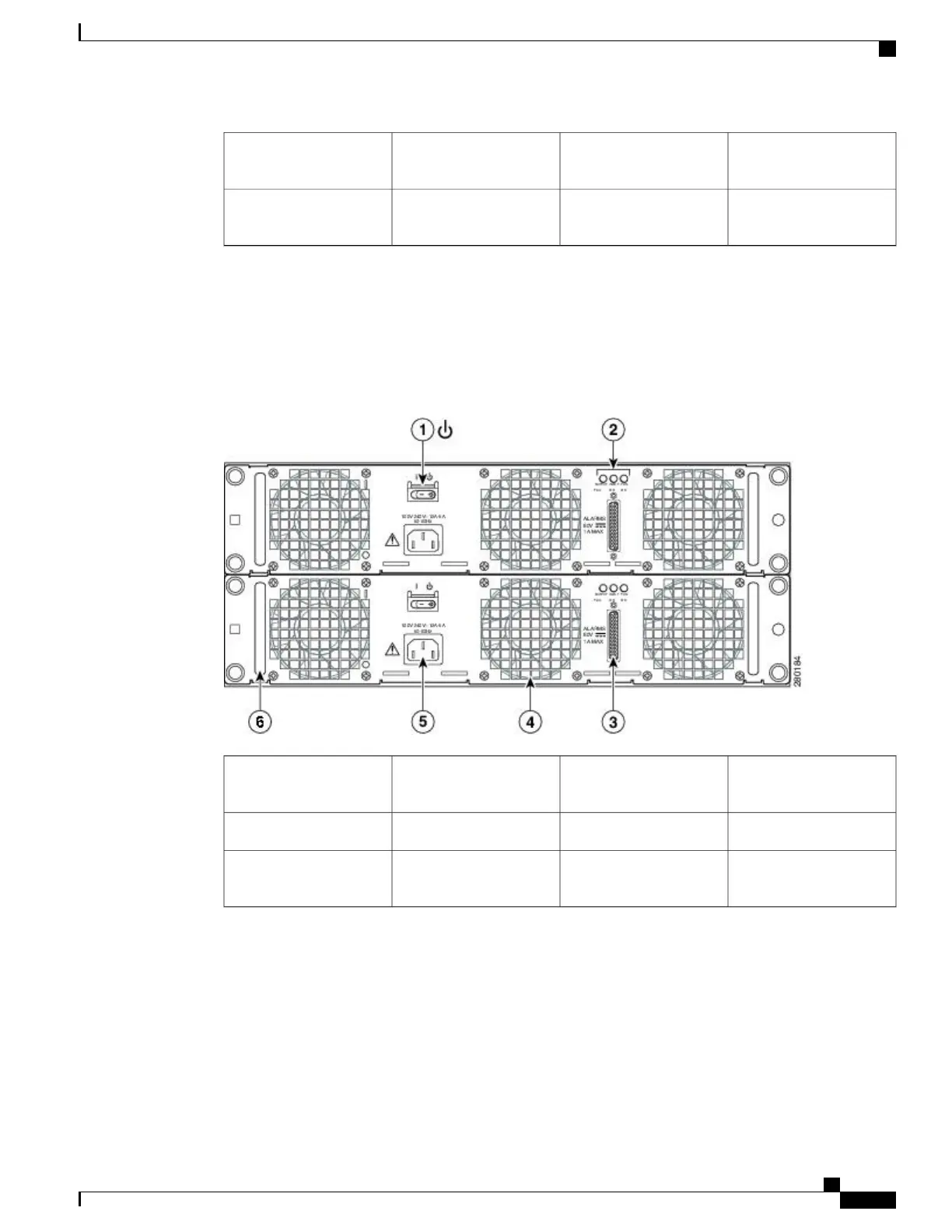

The following image shows the rear of the Cisco ASR 1004 Router with two AC power supplies installed.
Figure 59: Cisco ASR 1004 Router Rear View with AC Power Supplies
AC power supply fan4AC power supply
Standby switch
1
AC power inlet5AC power supply LEDs2
AC power supply handle6AC power supply DB-25
alarm connector
3
Cisco ASR 1000 Series Router Hardware Installation Guide
183
Cisco ASR 1004 Router Overview and Installation
Rear View

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
