Cisco ASR 1002-X Hardware Installation Guide

DETAILED STEPS
Step 1
Before connecting a terminal to the console port, configure the terminal to match the chassis console port as follows:
9600 baud, 8 data bits, no parity, 1 stop bits (9600 8N1).
Step 2
After you establish normal router operation, you can disconnect the terminal.
Connecting the Ethernet Management Port Cable
When using the Fast Ethernet Management port in the default mode (speed-auto and duplex-auto) the port
operates in auto-MDI/MDI-X mode. The port automatically provides the correct signal connectivity through
the Auto-MDI/MDI-X feature. The port automatically senses a crossover or straight-through cable and adapts
to it.
However, when the Fast Ethernet Management port is configured to a fixed speed (10/100/1000 Mbps) through
command-line interface (CLI) commands, the port is forced to MDI mode.
When in a fixed-speed configuration and MDI mode:
•
Use a crossover cable to connect to an MDI port
•
Use a straight-through cable to connect to an MDI-X port
The following figure shows the MGMT Ethernet port connector.

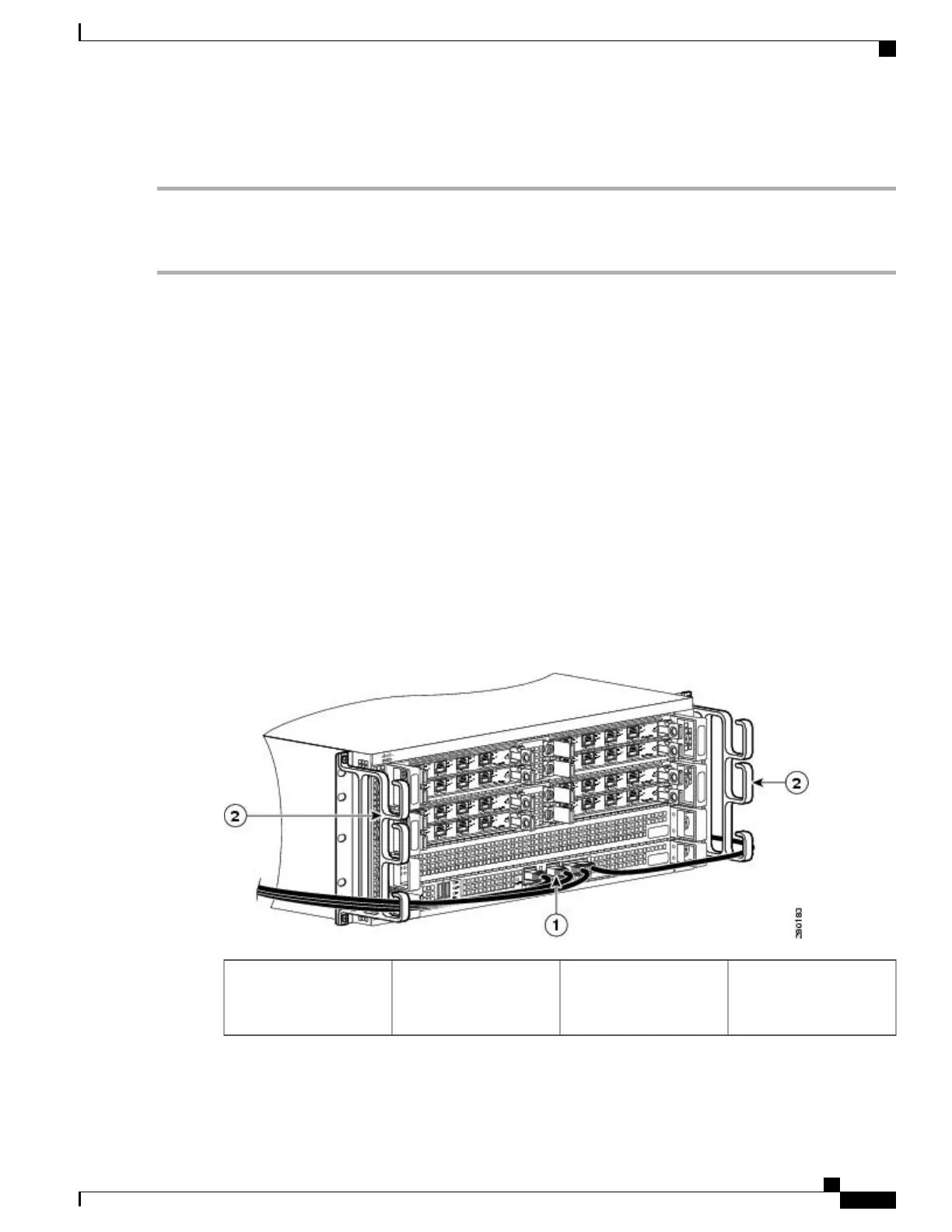

Figure 72: Cisco ASR 1000 Series Route Processor MGMT Ethernet Port Connector
Cable-management
bracket and U feature
device
2MGMT Ethernet port1
Cisco ASR 1000 Series Router Hardware Installation Guide
207
Cisco ASR 1004 Router Overview and Installation
Connecting the Ethernet Management Port Cable

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
