Cisco ASR 1002-X - Cisco ASR 1002-F Router Description; Front View

Cisco ASR 1002-F Router Description
The Cisco ASR 1002-F Router is one of the Cisco ASR 1000 Series Aggregation Services Routers. The Cisco
ASR 1002-F Router supports all the general-purpose routing and security features of the Cisco ASR 1002
Router, and uses the same internal control and data-plane architecture as Cisco ASR 1002 Router.
The Cisco ASR 1002-F Router supports:
•
The same features and components as the Cisco ASR 1002 Router
•
An integrated 4xGE SPA interface
•
Fixed 2.5 GB of system bandwidth and 4 GB DRAM
•
A built-in 4x1GE SPA providing four small form-factor pluggable (SFP-based) GE connections,
designated as SPA bay 0
.
For information about the SFP transceiver modules that are compatible with Cisco ASR 1002 Built-in Gigabit
Ethernet Ports (4x1GE), refer to the “Modular Optics Compatibility” section in Cisco ASR 1000 Series
Aggregation Services Routers SIP and SPA Hardware Installation Guide .
Only Cisco software release four code supports the Cisco ASR 1002-F Router. Do not use earlier versions
of Cisco software.
Note
This section contains the following topics:
Front View
Figure 115: Cisco ASR 1002-F Router—Front View, on page 276 shows the front of the Cisco ASR 1002-F
Router with the Cisco ASR 1002-ESP-F, Cisco ASR 1000 route processor, and a SPA-4XOC12-POS installed.

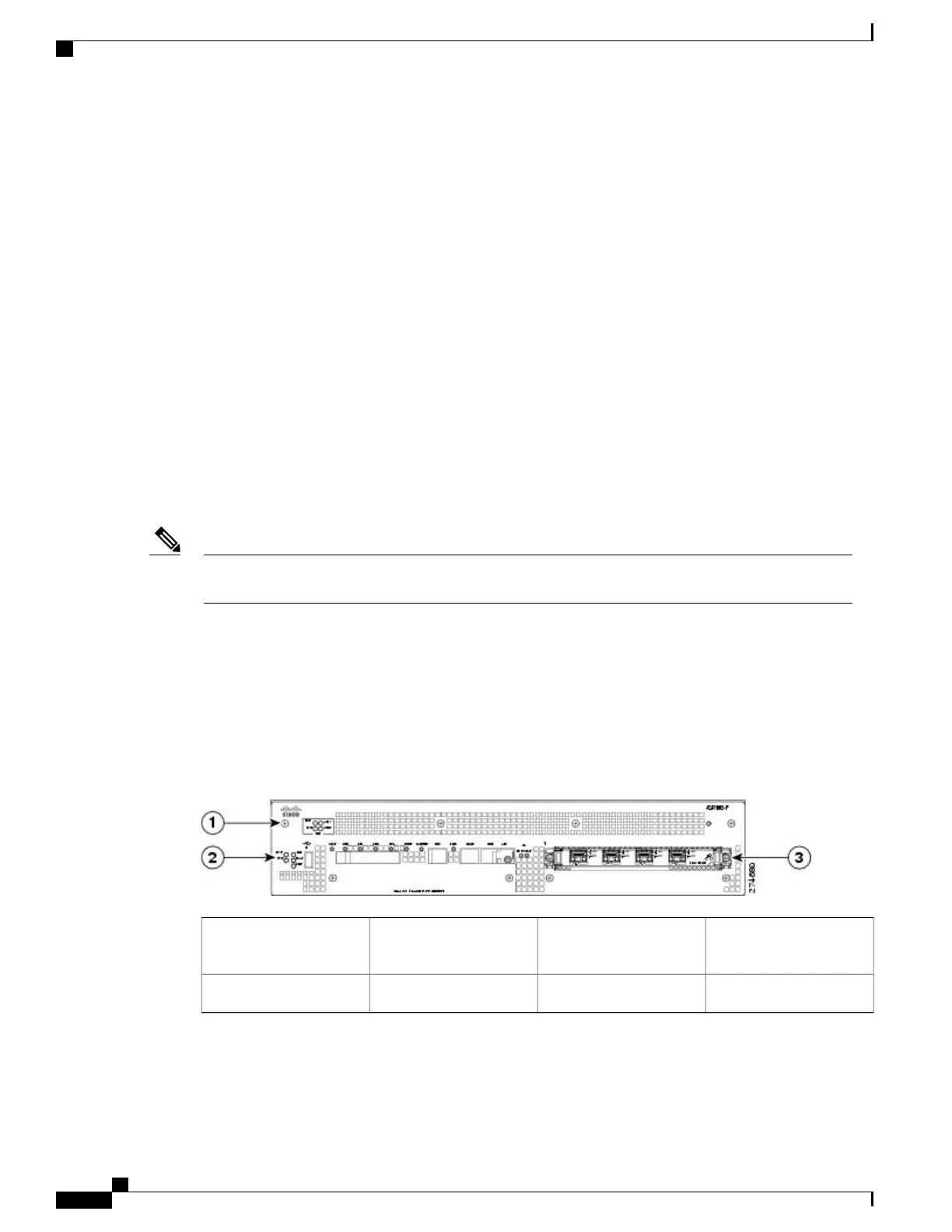

Figure 115: Cisco ASR 1002-F Router — Front View
Cisco ASR 1002-SIP10-F
with a SPA installed
3Integrated Cisco ASR
1002-ESP-F
1
——
Integrated Cisco RP2
Cisco ASR 1000 Series Router Hardware Installation Guide
276
Cisco ASR 1002-F Router Overview and Installation
Cisco ASR 1002-F Router Description
