Connecting DC Input Power to Cisco ASR 1006 Router
This section describes how to connect the DC power supply into the Cisco ASR 1006 Router. The followoing
image shows the ASR1006-PWR-DC power supply of the Cisco ASR 1006 Router.

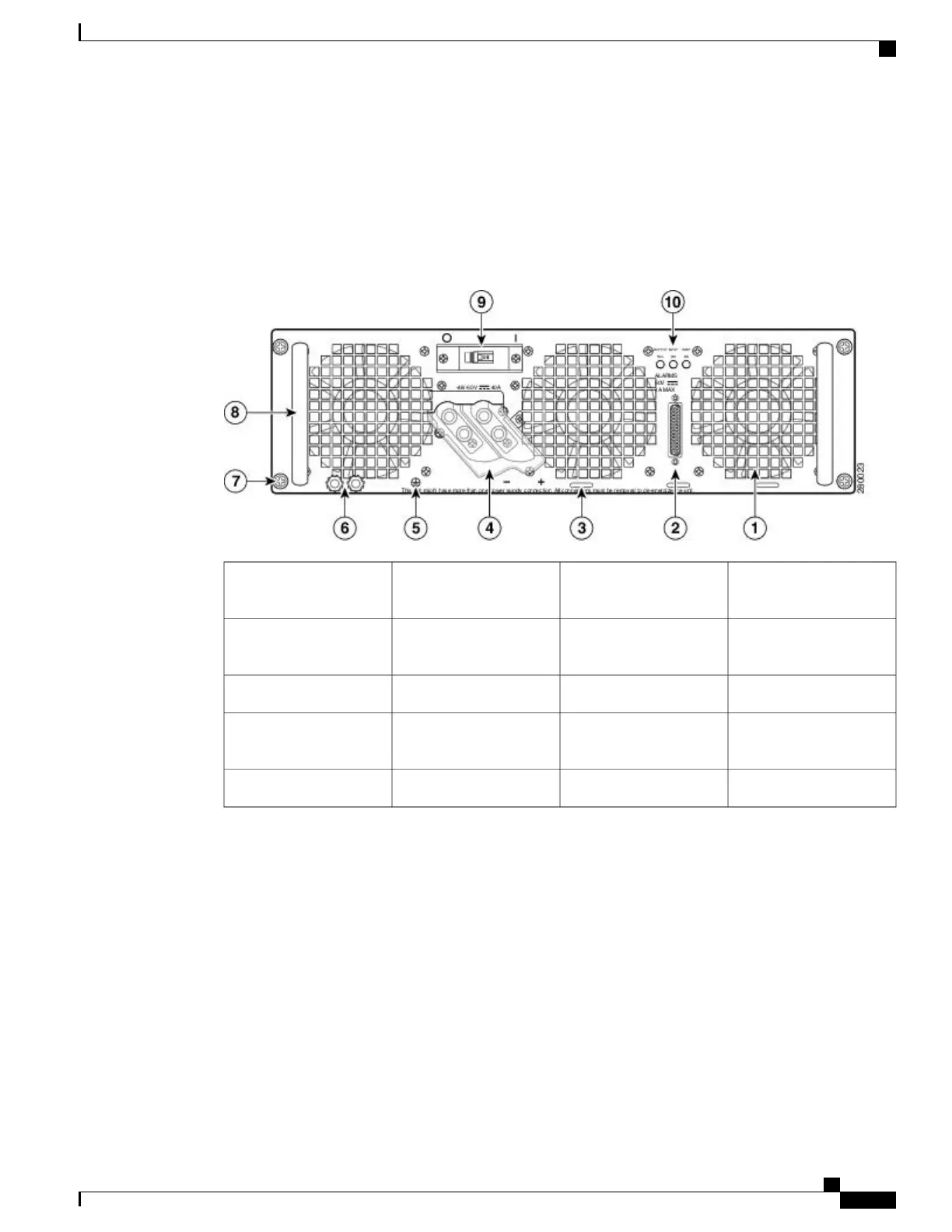

Figure 48: Cisco ASR 1006 Router DC Power Supply (ASR1006-PWR-DC)
DC power supply ground
lugs
6Fans1
DC power supply captive
screws
7DB-25 alarm connector2
DC power supply handle8Tie-wrap tabs3
DC power supply On (|)
/Off (O) switch
9DC power supply
terminal and plastic cover
4
DC power supply LEDs10Grounding symbol5
Cisco ASR 1000 Series Router Hardware Installation Guide
169
Cisco ASR 1006 Router Overview and Installation
Connecting DC Input Power to Cisco ASR 1006 Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
